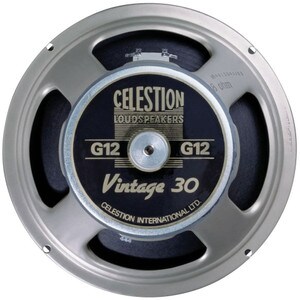

Celestion Vintage 30 12" 8 Ohm Guitar Speaker 60W

CelestionPart # 294-2274
Model: Vintage 30

The Celestion Vintage 30 is a 12" guitar speaker developed to handle the demands of harder-driving amplifiers while delivering a distinctly modern Celestion voice. Celestion describes it as its most revealing speaker, combining detailed and complex overtones with a warm low end, rich vocal mid-range, and a beautifully detailed top end.

Key Features

  • Complex overtones for a more textured and revealing guitar sound
  • Warm low end for fuller sounding riffs and chords
  • Rich vocal mid-range for strong note presence and cut
  • Beautifully detailed top end for added clarity and articulation
  • Works well on its own for revealing boutique amp detail
  • Quartet-friendly voicing for intricate vintage 3D crunch in larger cabinets
Your Price: $169.00
+ FREE SHIPPING
MSRP:
Save $84.50 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Celestion Vintage 30 12" 8 Ohm Guitar Speaker 60W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion Vintage 30 12" 8 Ohm Guitar Speaker 60W

Celestion Vintage 30 12" 8 Ohm Guitar Speaker 60W

In 1986, a new generation of hard rock players was beginning to emerge. To meet the needs of these musicians and their increasingly hot-rodded amplifiers, Celestion set out to create a modern guitar speaker that could handle far greater power and overdrive. To do that, Celestion paired their ‘H’ magnet, the closest in performance to Alnico, with a new cone and voice coil built from contemporary materials.

Celestion's most revealing speaker, the Vintage 30 delivers richly detailed and complex overtones, a warm low end, a famously rich vocal midrange, and a beautifully defined top end. Whether used alone to expose the nuances of hand-wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 has made its mark on thousands of recordings by a wide range of notable players, including Slash, Steve Stevens, and Peter Frampton.

Specifications

  • Nominal diameter: 305mm / 12in
  • Power rating: 60W
  • Rated impedance: 8Ω
  • Sensitivity: 100dB
  • Chassis type: Pressed steel
  • Magnet type: Ceramic
  • Magnet weight: 1.42kg / 50oz
  • Voice coil diameter: 1.75in / 44mm
  • Voice coil material: Round copper
  • Frequency range: 70-5000Hz
  • Resonance frequency, Fs: 75Hz
  • DC resistance, Re: 7.3Ω

  • Cut-out diameter: 283mm / 11.1in
  • Diameter: 309mm / 12.2in
  • Magnet structure diameter: 156mm / 6.1in
  • Mounting hole dimensions: 7.9mm / 0.31in Ø
  • Mounting hole PCD: 297mm / 11.7in
  • Number of mounting holes: 4
  • Chassis depth (inc gasket): 97mm / 3.79in
  • Magnet depth: 38mm / 1.51in
  • Overall depth: 135mm / 5.3in
  • Unit weight: 4.7kg / 10.4lb

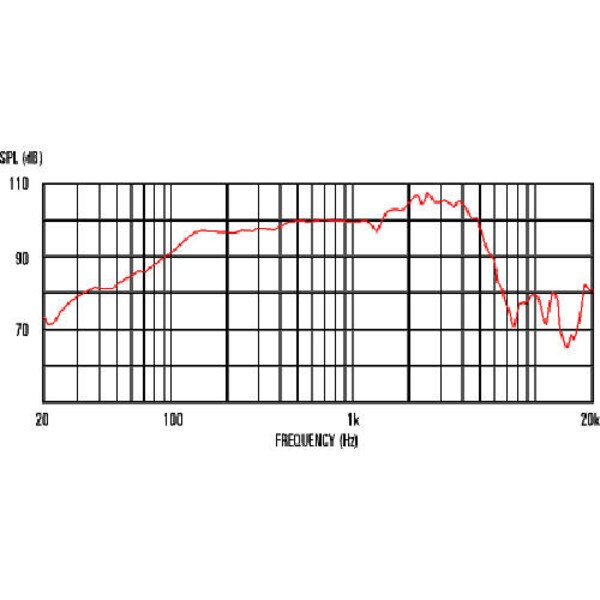

Frequency Response

Product Details

BrandCelestion
ModelVintage 30
Part Number294-2274
UPC739894390354
Unit of MeasureEach
Weight11.75

Product Specifications

Nominal Diameter12"
Power Handling (RMS)60 Watts
Impedance8Ω

Materials of Construction

Magnet MaterialCeramic Ferrite
