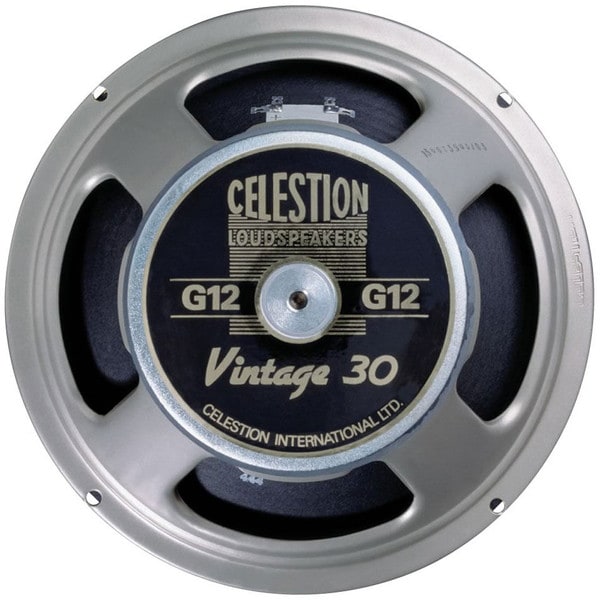

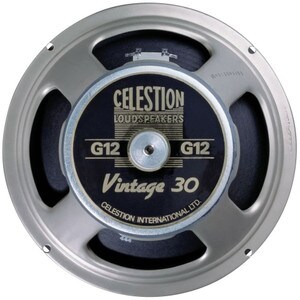

Celestion Vintage 30 12" 16 Ohm Guitar Speaker 60W

CelestionPart # 294-2276
Model: Vintage 30
Seemingly twice as loud as anything else at the same power level, the 16 ohm Vintage 30 guitar speaker handles massive overdrive sounds with ease. Tight bass, fat mids and a smooth, harmonically rich top end makes the Vintage 30 an excellent 4 x 12 loudspeaker.
Your Price: $169.00
+ FREE SHIPPING
MSRP: $253.50
Save $84.50 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Celestion Vintage 30 12" 16 Ohm Guitar Speaker 60W is back in stock or available for preorder.

Order in the next 13 hr 0 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion Vintage 30 12" 16 Ohm Guitar Speaker 60W

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, Celestion set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, Celestion coupled their 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Celestion's most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand-wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

Overall Specifications: • Nominal diameter: 12" (305 mm) • Power rating: 60 watts • Nominal impedance: 16 ohm • Sensitivity: 100 dB • Chassis type: Pressed steel • VCdia: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 70-5,000 Hz • Fs: 75 Hz • DC resistance, Re: 12.9 ohm.

Mounting Information: • Diameter: 12.2" (309 mm) • Overall depth: 5.3" (135 mm) • Magnet structure diameter: 6.1" (156 mm) • Cut-out diameter: 11.1" (283 mm) • Mounting slot dimensions: 0.31" (7.9 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 11.7" (297 mm) • Weight: 10.4 lbs. (4.7 kg).

Product Details

BrandCelestion
ModelVintage 30
Part Number294-2276
UPC739894390453
Unit of MeasureEach
Weight11.9

Product Specifications

Nominal Diameter12"
Power Handling (RMS)60 Watts
Impedance16Ω

Materials of Construction

Magnet MaterialCeramic Ferrite
