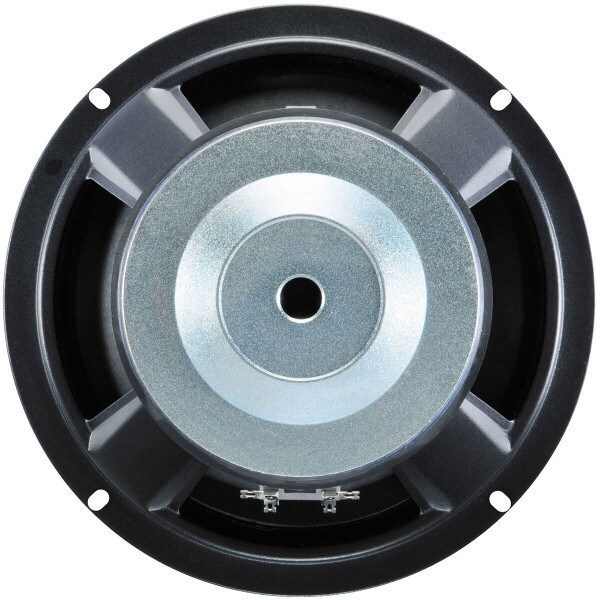

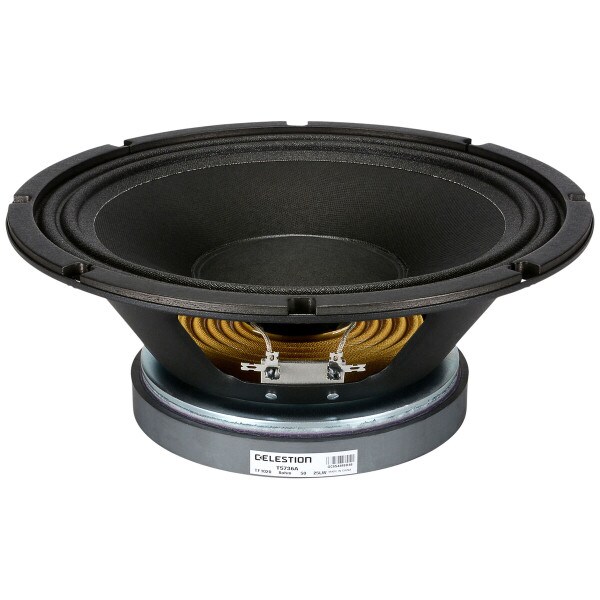

Celestion TF1020 10" Professional Speaker 150W

CelestionPart # 294-2070
Model: TF1020
Excellent for bass, midrange, and musical instrument applications, the Celestion TF1020 10" speaker has the power and reliability to cope with any pro sound demand.

Key Features

  • 97 dB sensitivity and 150 watts RMS power handling
  • 2" high temperature copper voice coil wound on polyimide former for increased reliability
  • Ideally suited to compact enclosures and high pass systems
  • Rigid chassis design for maximum energy transfer
  • Kevlar-loaded cone with sealed, damped surround for reduced distortion
  • Vented pole piece evacuates heated air from voice coil gap
Your Price: $84.50
MSRP: $126.75
Save $42.25 (33%)
Bulk Pricing
12 In Stock
Get Notified When Available

We'll send you an email when Celestion TF1020 10" Professional Speaker 150W is back in stock or available for preorder.

Order in the next 0 hr 43 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TF1020 10" Professional Speaker 150W

The Celestion TF1020 10" driver uses its hefty 42 oz. ceramic ferrite magnet and 2" hi-temp voice coil to achieve very high output and excellent power handling. The Kevlar-loaded paper cone and double half-roll cloth surround are selected and balanced to deliver accuracy and durability. The TF1020 provides strong bass response and smooth, extended midrange when loaded in pro audio loudspeaker enclosures.

Product Details

BrandCelestion
ModelTF1020
Part Number294-2070
UPC739894573658
Unit of MeasureEach
Weight9.05

Product Specifications

Nominal Diameter10"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance
Frequency Response60 to 3,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)69.4Hz
DC Resistance (Re)5.45Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)2.45
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)1.02ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)14.1T·m
Diaphragm Mass Inc. Airload (Mms)31.1g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)346.6cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.08"
Baffle Cutout Diameter9.02"
Depth4.33"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3155Hz
Vented Volume0.75ft³
Vented F369.1Hz
