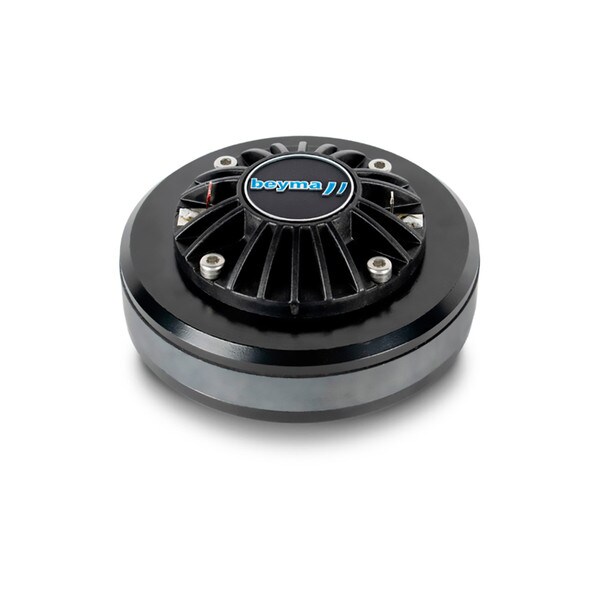

NEW Beyma CD-151Fe/PT 1" Polymer Diaphragm Compression Driver 8 Ohm 2/3-Bolt

Beyma
Part #253-122

NEW Beyma CD-151Fe/PT 1" Polymer Diaphragm Compression Driver 8 Ohm 2/3-Bolt

Beyma
Part #253-122
Model: CD-151Fe/PT

The Beyma CD-151Fe/PT is a next-generation 1" compression driver designed for high-performance professional audio applications requiring extended frequency response, high power handling, and low distortion. Its advanced design and proprietary technologies make it suitable for use in high-quality sound reinforcement systems, line arrays, and other demanding audio setups.

Key Features
  • Incorporates Deplocex technology for improved thermal dissipation and reduced power compression​
  • Utilizes VPEQ technology for a linear frequency response​
  • Features a 1.5" copper-clad aluminum voice coil with Kapton former for enhanced durability​
  • Advanced polyester annular ring diaphragm optimized with F.E.M. for extended response and minimized resonances​
  • Includes a copper shorting cap to reduce distortion and linearize inductance​
  • F.E.M.-optimized ceramic magnetic circuit enhances performance​
Similar items that may interest you:
See all items in Horn Drivers
NEW $99.75
+ FREE SHIPPING
MSRP: $133.00
Save $33.25 (25%)
Bulk Pricing
Order in the next 1 hr 2 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma CD-151Fe/PT 1" Polymer Diaphragm Compression Driver 8 Ohm 2/3-Bolt

CD-151Fe/PT 1" Polymer Diaphragm Compression Driver 8 Ohm 2/3-Bolt

The CD-151Fe/PT's substantial power handling and high sensitivity enable it to deliver clear and dynamic high-frequency output, making it ideal for demanding audio applications. The integration of Deplocex technology enhances thermal dissipation, reducing power compression and allowing for consistent performance during extended use. VPEQ® technology ensures a linear frequency response, contributing to accurate sound reproduction. The 1.5" copper-clad aluminum voice coil with Kapton former provides durability and reliability under high-power conditions. The advanced polyester annular ring diaphragm, optimized using finite element modeling (F.E.M.), offers an extended frequency response with minimized resonances, resulting in a smooth and natural sound. The inclusion of a copper shorting cap reduces distortion and linearizes inductance, further improving sound quality. The F.E.M.-optimized ceramic magnetic circuit enhances overall efficiency and performance. Designed for high-quality sound reinforcement systems and line arrays, this compression driver delivers exceptional performance for professional audio setups.

​In high-performance audio applications, achieving the required magnetic force (Bl) and sound pressure levels (SPL) often involves using single-layer edgewound wire or double-layer round wire coils. However, the double-layer configuration has a drawback: one of the coil layers cannot dissipate heat as effectively as the other. Additionally, flat wire designs typically feature shorter magnetic gaps, which limit power handling and lead to power compression at lower voltages.

​Beyma's DEPLOCEX technology addresses these challenges by maximizing the surface area of the coil and magnetic gap, enhancing heat dissipation through radiation while maintaining the same Bl and final SPL. This design improves thermal transmission along the entire coil length in contact with the iron.​

As a result, coil temperature is reduced by 30%, minimizing the effects of power compression. This advancement enables high-frequency drivers to achieve over 15% more power.

Any sound transmission channel has its own eigenmodes. For example, in a tube closed at one end by a diaphragm and open at the other, these modes can be easily calculated. However, in compression driver ducts, the situation is much more complex. These modes cause peaks and valleys that degrade the frequency response.

After extensive research, simulations, and testing, Beyma's R&D team has developed a unique solution to enhance the frequency response of our compression drivers.

The principle behind solving this complex problem is straightforward. By varying the shape of the duct, we can linearize the system's response and achieve a better transfer function.

Adjusting the tube's width and designing an organic shape based on various mathematical functions create significant variations in sound pressure levels at specific frequencies, resulting in a much improved transient response.

Product Details

BrandBeyma
ModelCD-151Fe/PT
Part Number253-122
UPC8435469051607
Unit of MeasureEach
Weight3

Product Specifications

Diaphragm MaterialKapton / Polyimide
Exit Diameter1"
Mounting Type2/3-Bolt
Power Handling (RMS)140 Watts
Impedance8Ω
