  • Beyma 8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm

NEW Beyma 8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm

BeymaPart # 253-100
Model: 8CX300Nd/N

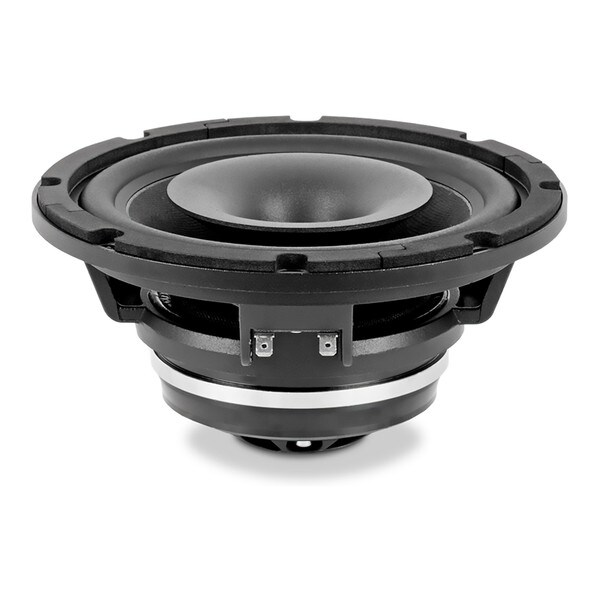

The Beyma 8CX300Nd/N is an 8" coaxial transducer designed for professional audio applications requiring a compact, high-performance driver with extended frequency response and precise directivity. Its integrated design combines a low-frequency driver and a high-frequency compression driver, making it suitable for applications such as studio monitors, compact PA systems, and high-fidelity installations.

Key Features

  • Covers an extensive frequency range from 60 Hz to 20 kHz​
  • Features a 2.5" (63.5 mm) voice coil for the low-frequency driver and 1.75" (44.4 mm) for the high-frequency driver
  • Incorporates a shorting cap in the magnetic circuit to extend response and reduce distortion​
  • Utilizes a weatherproof carbon fiber-loaded paper cone for increased durability​
  • Equipped with a Santoprene surround for enhanced mechanical stability​
  • Features a PM4 diaphragm in the high-frequency driver for improved sound quality​
  • Provides a 70º conical coverage pattern for controlled dispersion​
Similar items that may interest you:
B&C 8CXN51 8" Professional Neodymium Coaxial Speaker 100 x 100 8 Ohm
Price: $324.36Part # 294-5764
See all items in Pro Coaxial Full-Range Speakers
NEW $405.75
+ FREE SHIPPING
MSRP: $541.00
Save $135.25 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm

8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm

The 8CX300Nd/N's substantial power handling capabilities and high sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. The 2.5" voice coil in the low-frequency driver and the 1.75" voice coil in the high-frequency driver enhance thermal stability, contributing to consistent performance over time. The inclusion of a shorting cap in the magnetic circuit extends the frequency response and reduces distortion, ensuring accurate sound reproduction. The weatherproof carbon fiber-loaded paper cone offers enhanced durability and reliability, even in challenging environmental conditions. The Santoprene surround further enhances mechanical stability, maintaining consistent performance. The PM4 diaphragm in the high-frequency driver improves sound quality, while the 70º conical coverage pattern provides controlled dispersion, making it ideal for applications requiring precise directivity. Optimized for studio monitors, compact PA systems, and high-fidelity installations, this coaxial transducer offers versatility and exceptional performance for professional audio setups.​

​Beyma's Research and Development department collaborates closely with the Technical Office to conduct practical experiments that demonstrate and share acquired knowledge.

A notable outcome of this research is the development of the PM4 diaphragm, which incorporates a high-tech polymer previously unused in audio applications.

This innovation results in a stronger bond between the dome and the voice coil former, enhancing performance under high power and prolonged use. ​

Beymas believes that the PM4 diaphragm offers a more natural sound compared to other polyester materials.

Product Details

BrandBeyma
Model8CX300Nd/N
Part Number253-100
UPC8435469041844
Unit of MeasureEach
Weight6.6

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.8
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response60 to 20,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)61Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)13
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.81ft³
Mechanical Compliance of Suspension (Cms)335mm/N
BL Product (BL)12T·m
Diaphragm Mass Inc. Airload (Mms)0.02g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Cone MaterialCarbon Fiber
Surround MaterialSantoprene®
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.3"
Baffle Cutout Diameter7.1"
Depth4.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.101ft³
Sealed F3176.9Hz
Vented Volume0.232ft³
Vented F3107.8Hz
