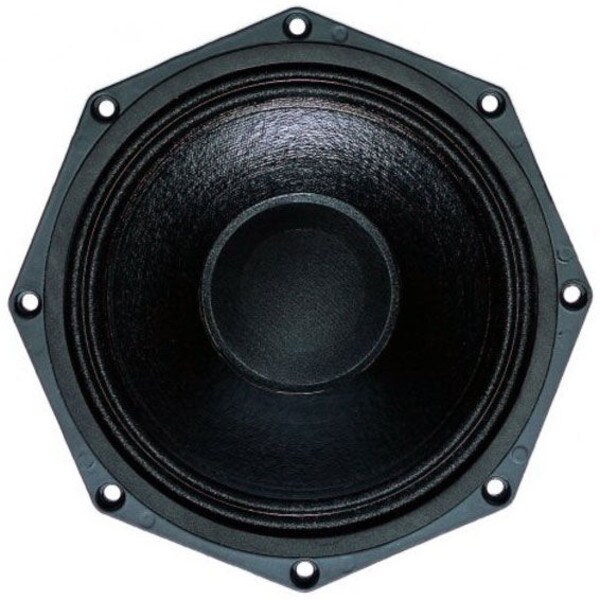

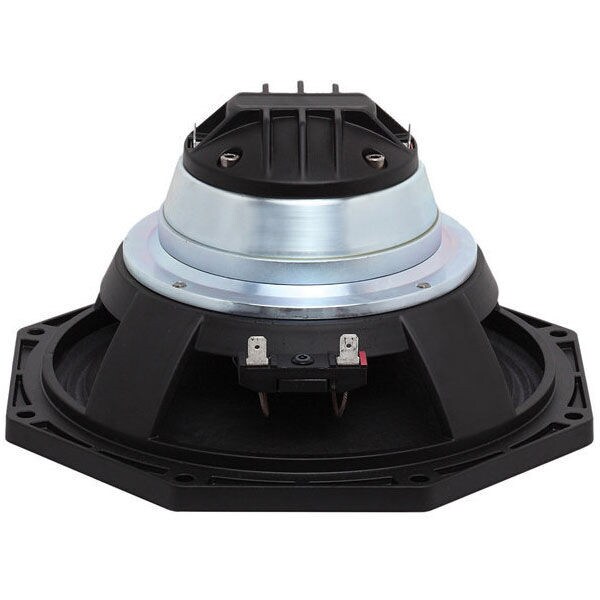

B&C 8CXN51 8" Professional Neodymium Coaxial Speaker 100 x 100 8 Ohm

B&C SpeakersPart # 294-5764
Model: 8CXN51
The B&C 8CXN51 speaker's neodymium LF/HF motor, polyimide diaphragm HF driver, and FEA-optimized design produce high output and minimal distortion.

Key Features

  • Coaxial HF driver with 1.7" voice coil, polyimide diaphragm, and 100° nominal coverage
  • Neodymium ring magnet shared by LF and HF components keeps weight low
  • Aluminum-wound 2" woofer voice coil ensures good power handling
  • 1.8 kHz recommended crossover point
  • Use with passive or active crossover (not included)
Similar items that may interest you:
Beyma 8CX300Nd/N 8" Coaxial Neo Loudspeaker 8+8 Ohm
Price: $405.75Part # 253-100
See all items in Pro Coaxial Full-Range Speakers
Your Price: $324.36
+ FREE SHIPPING
MSRP: $540.60
Save $216.24 (40%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when B&C 8CXN51 8" Professional Neodymium Coaxial Speaker 100 x 100 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 8CXN51 8" Professional Neodymium Coaxial Speaker 100 x 100 8 Ohm

B&C's 8CXN51 8" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The 8CXN51 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, stage monitor wedges, studio monitors, or high-efficiency home audio systems. Power handling is 500 watts continuous program, which combined with the driver's high efficiency results in very good maximum output.

The B&C 8CXN51 8" coaxial speaker's optimized driver alignment delivers the coherency and focus expected from a point source design. In addition to this superior articulation and accuracy, the 8CN51 requires very little baffle area compared to separate LF and HF components.




Product Details

BrandB&C Speakers
Model8CXN51
Part Number294-5764
UPC848864008813
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.3
Power Handling (RMS)500 Watts
Impedance8Ω
Frequency Response70 to 18,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)68Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)0.6ft³
BL Product (BL)12.6T·m
Diaphragm Mass Inc. Airload (Mms)22g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)220cm²

Materials of Construction

Cone MaterialCoated Paper
Voice Coil Wire MaterialAluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.8"
Baffle Cutout Diameter7.4"
Depth4.4"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.22ft³
Sealed F3214.8Hz
Vented Volume0.5ft³
Vented F365.3Hz
