Model: 6MCF200Nd

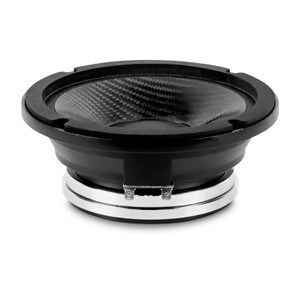

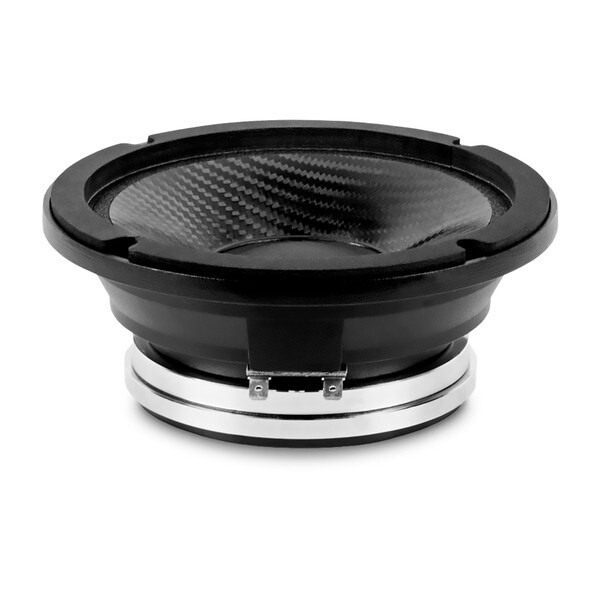

The Beyma 6MCF200Nd is a 6.5" midbass transducer engineered for professional audio systems requiring high efficiency and precise sound reproduction. Its carbon fiber cone and neodymium magnet assembly make it particularly suitable for high-performance mid-frequency line array applications.

Key Features
  • 2" aluminum voice coil enhances thermal stability​
  • Carbon fiber cone ensures low distortion​
  • Extremely linear frequency response from 400 Hz to 12,000 Hz​
  • Shorting cap extends high-frequency response​
  • FEA-optimized neodymium magnet structure​
  • Sealed cast aluminum frame for durability​
  • Designed specifically for mid-frequency line array applications​
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
NEW $368.25
+ FREE SHIPPING
MSRP: $491.00
Save $122.75 (25%)
Bulk Pricing
Order in the next 0 hr 29 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 6MCF200Nd 6.5" Midbass Woofer 8 Ohm

6MCF200Nd 6.5" Midbass Woofer 8 Ohm

The 6MCF200Nd's 200 W AES power handling and 97 dB sensitivity enable it to deliver clear and dynamic midrange frequencies, essential for articulate vocal and instrumental reproduction. Its 2" aluminum voice coil enhances thermal stability, ensuring consistent performance during extended use. The carbon fiber cone provides optimal loading behavior and low distortion, contributing to accurate sound reproduction. An extremely linear frequency response from 400 Hz to 12,000 Hz allows for seamless integration into various system configurations. The inclusion of a shorting cap extends the high-frequency response, enhancing the driver's versatility. The FEA-optimized neodymium magnet structure offers a lightweight yet powerful magnetic field, improving efficiency. A sealed cast aluminum frame adds durability and protects internal components. Specifically designed for mid-frequency line array applications, the 6MCF200Nd is an excellent choice for professional audio setups requiring precision and reliability.

Solid Line: On Axis
Dotted Line: 45° Off Axis

Product Details

BrandBeyma
Model6MCF200Nd
Part Number253-018
UPC8435469041585
Unit of MeasureEach
Weight5.9

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.2
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response400 to 12,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)406Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)10.3
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.72
Compliance Equivalent Volume (Vas)0.009ft³
Mechanical Compliance of Suspension (Cms)10mm/N
BL Product (BL)18.1T·m
Diaphragm Mass Inc. Airload (Mms)0.015g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)0.014cm²

Materials of Construction

Cone MaterialCarbon Fiber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.8"
Baffle Cutout Diameter5.7"
Depth2.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.019ft³
Sealed F3488.3Hz
Vented Volume0.0297ft³
Vented F3238.4Hz
