  • B&C 21DS115 21" Professional Neodymium Subwoofer 8 Ohm

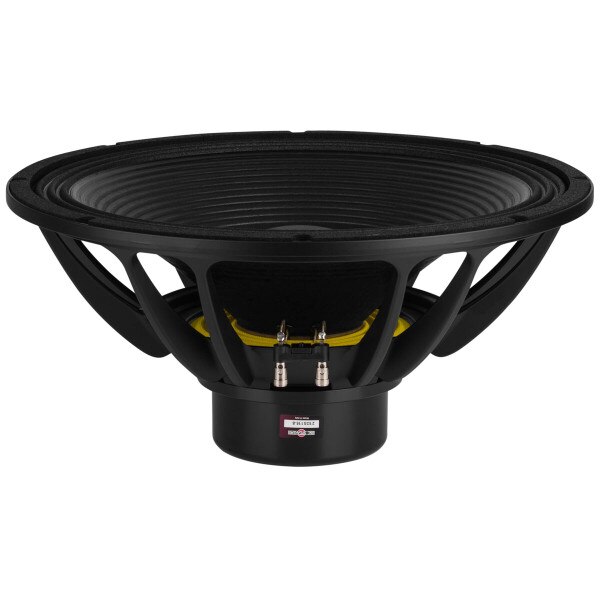

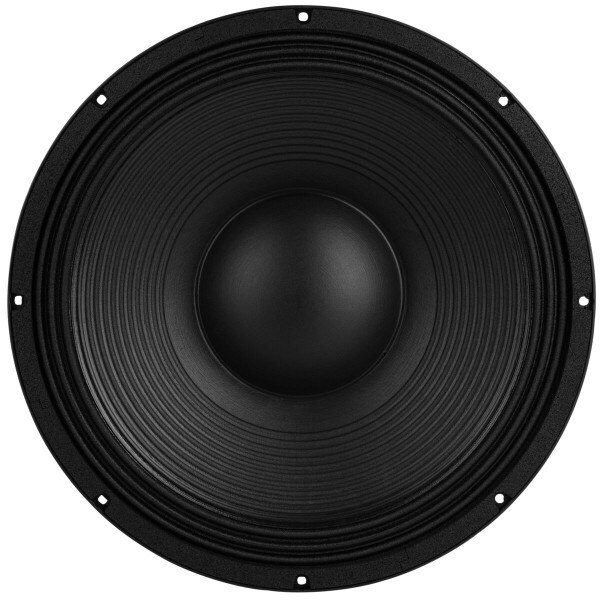

B&C 21DS115 21" Professional Neodymium Subwoofer 8 Ohm

B&C SpeakersPart # 294-6030
Model: 21DS115

This advanced subwoofer design incorporates a newly developed, longer four-layer aluminum voice coil. This design improves heat dissipation, increases magnetic gap energy, raises sensitivity, boosts power handling, reduces distortion, and enhances overall performance. The 21DS115 uses a 36 mm long, 4.5" (116 mm) diameter copper clad aluminum wire voice coil, delivers a 1700 watt AES power rating, achieves 99 dB sensitivity, and offers more than 14.0 mm of Xvar, representing a major advancement over comparable models in the B&C lineup.

Key Features

  • Excursion-optimized lead wires woven through spider for minimal motion interference
  • Double silicone spider with optimized compliance for stable excursion and control
  • Ventilated voice coil gap to reduce power compression under heavy use
  • Aluminum demodulating ring for very low distortion
Your Price: $854.10
+ FREE SHIPPING
MSRP: $1,423.50
Save $569.40 (40%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when B&C 21DS115 21" Professional Neodymium Subwoofer 8 Ohm is back in stock or available for preorder.

Estimated back in stock 2/12/2026
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 21DS115 21" Professional Neodymium Subwoofer 8 Ohm

21DS115 21" High Energy Neodymium Subwoofer 8 Ohm

Product Details

BrandB&C Speakers
Model21DS115
Part Number294-6030
UPC848864050614
Unit of MeasureEach
Weight37.4

Product Specifications

Nominal Diameter21"
Bolt Circle Diameter20.7
Power Handling (RMS)3400 Watts
Impedance
Frequency Response30 to 1,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter4.5"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)4.6mH
Mechanical Q (Qms)10
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.23
Compliance Equivalent Volume (Vas)9.5ft³
Mechanical Compliance of Suspension (Cms)0.0692mm/N
BL Product (BL)40.8T·m
Diaphragm Mass Inc. Airload (Mms)407g
Maximum Linear Excursion (Xmax)15mm
Surface Area of Cone (Sd)1680cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter21.54"
Baffle Cutout Diameter20.0"
Depth10.04"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume6.5ft³
Vented F332Hz
