Audtek 100 ft. 14/2 AWG OFC Shielded Direct Burial Speaker & Lighting Wire UL/CL3 Rated Black

Audtek Electronics
Part #100-477

Audtek 100 ft. 14/2 AWG OFC Shielded Direct Burial Speaker & Lighting Wire UL/CL3 Rated Black

Audtek Electronics
Part #100-477
Model: SBC14-100

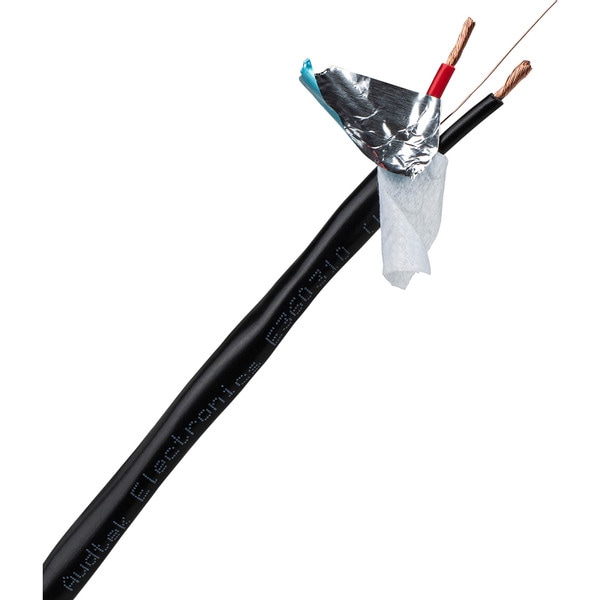

This wire is perfect for outdoor speakers, low voltage lighting, and many other outdoor or direct burial applications. The cable features a specially formulated black PVC jacket that is UV resistant and the inner layer water blocking tape helps provided protection against water damage while the foil shield blocks out interference. The CL3 rating meets the needs for in wall installations.
Key Features
  • Made specifically for outdoor use, above or below ground
  • Each audiophile grade conductor contains 105, 34 AWG strands of oxygen free copper conductors
  • High strand count provides better signal transfer and flexibility
  • Perfect for outdoor speakers, low voltage lighting, and other outdoor or direct burial applications
  • Parallel/twist conductors and foil shield prevents interference and enables better current flow
  • CL3 flame rated for in-wall installations
  • ETL listed, RoHS and CE certified for domestic and international contract installations
Your Price: $54.98
MSRP: $74.99
Save $20.01 (27%)
Bulk Pricing
Order in the next 0 hr 37 min to ship today. Details

58In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Audtek 100 ft. 14/2 AWG OFC Shielded Direct Burial Speaker & Lighting Wire UL/CL3 Rated Black

This wire is perfect for outdoor speakers, low voltage lighting and many other outdoor or direct burial applications. The cable features a specially formulated black polyethylene jacket that is UV resistant and provides protection against water damage. Use the nylon rip cord to split the jacket but make sure you protect the exposed inner conductors with UV rated water-resistant tape, heat shrink, or silicon products. The audiophile grade wire contains 65 strands of oxygen free copper conductors. The high strand count provides improved skin effect. The total diameter of the cable with both inner conductors and the polyethylene black jacket is 0.291" (7.4 mm).

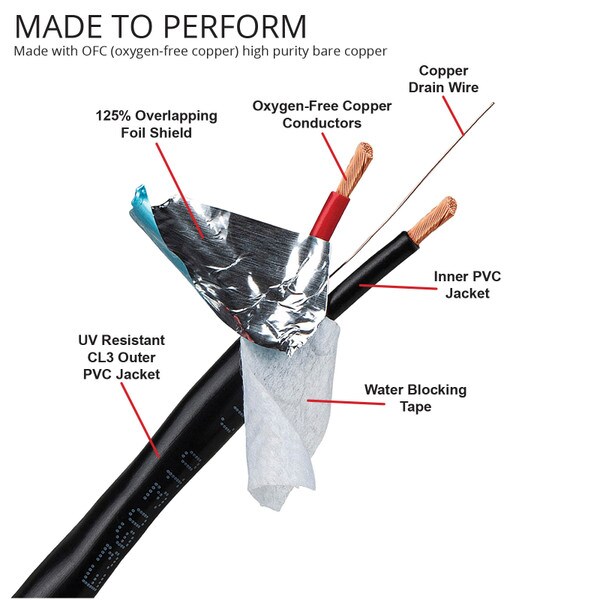

To keep your signal interference free this Audtek outdoor burial cable includes a 125% over lapping Mylar aluminum foil. It also has a 30 AWG copper drain wire that attaches to a ground source if needed.

Specifications: • Length: 100 ft. • Outer Diameter: 0.291" (7.4 mm) • Jacket thickness: 0.027" (0.7 mm) • Jacket material: PVC • Flame rating: CL3 • Temperature rating: -4° to 140° F (-20° to 60° C) • Voltage rating: 300V • Capacitance between conductors @ 1 kHz: 20pF/ft. (65pF/m) Nom. • DC resistance per conductor @ 68° F: 8.5 Ohms/KM Nom.

Product Details

BrandAudtek Electronics
ModelSBC14-100
Part Number100-477
UPC848864071510
Unit of MeasureRolls
Weight5.55

Product Specifications

Cable RatingCL3
Conductors2 Conductor
Jacket ColorBlack
Wire Gauge14
