  • Audio Technica ATW-T1407 System 20 PRO Desk Stand Transmitter

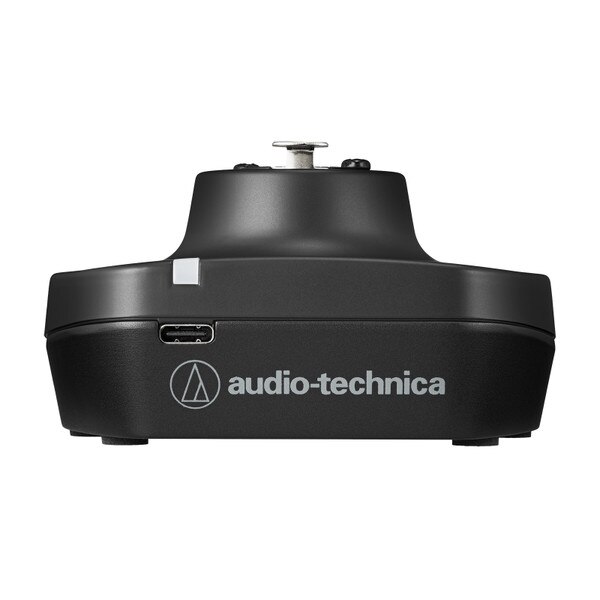

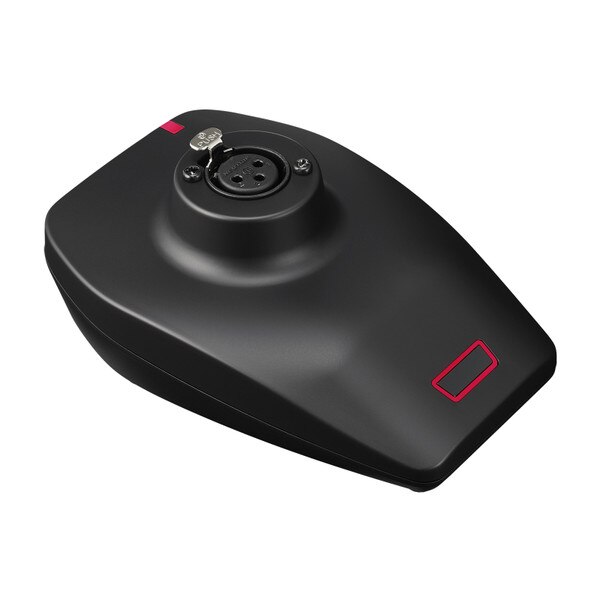

Audio Technica ATW-T1407 System 20 PRO Desk Stand Transmitter

Audio-TechnicaPart # 240-5758
Model: ATW-T1407

Take the freedom of a wireless system anywhere with Audio-Technica's System 20 PRO series! Endlessly customizable, the System 20 PRO line of microphones, bodypacks, and more can easily be personalized to fit your needs. With the ATW-T1407, you have a desk stand transmitter to begin your system or expand your your pre-existing setup. Preacher, politician, and presenter alike will love the convenience of taking a gooseneck microphone on the go!

Key Features

  • Fully integrated with the System 20 PRO line

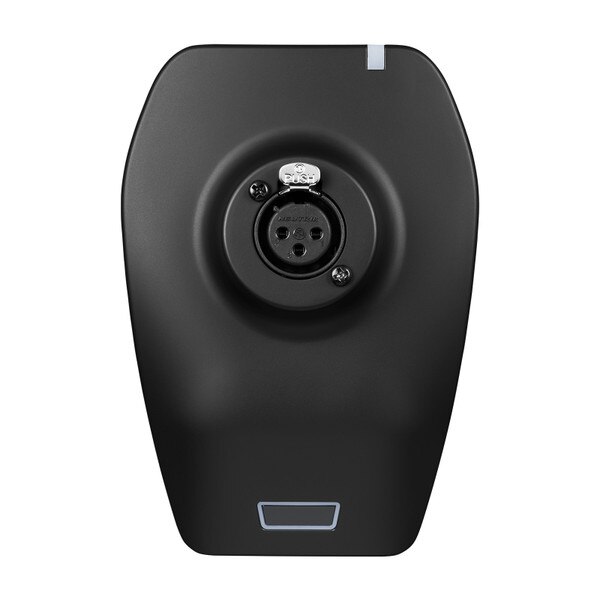

  • 3-pin XLR-F connector is compatible with any quick-mount gooseneck microphone
  • Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
  • Standard and Conference modes for the LEDs

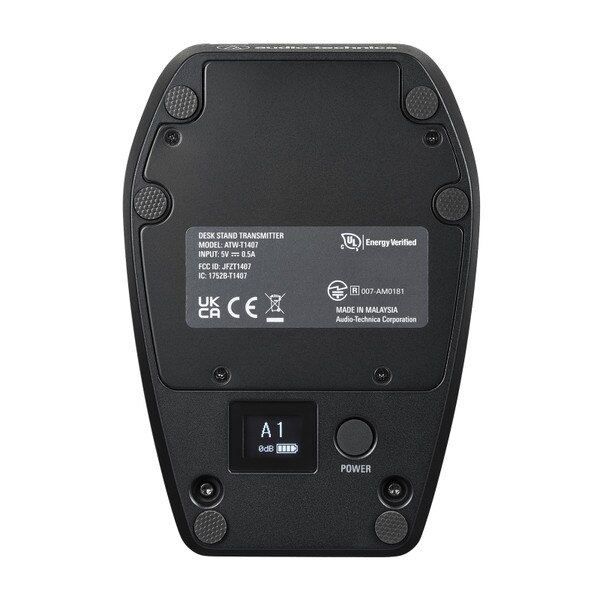

  • OLED display lets you adjust your settings quickly and discretely
  • Up to 12 hours of battery life for a full day's work
  • Charged via USB Type-C, and usable while charging
Your Price: $379.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Audio Technica ATW-T1407 System 20 PRO Desk Stand Transmitter is back in stock or available for preorder.

Order in the next 13 hr 15 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio Technica ATW-T1407 System 20 PRO Desk Stand Transmitter

Audio-Technica's System 20 Pro Series

The wireless system you can use anywhere!

The Audio Technica ATW-T1406 boundary microphone transmitter from the System 20 PRO line is the perfect grab-and-go choice for a preacher, a politician, or presenter of any kind. Just plug in your gooseneck microphone (sold separately) and let the people know what you have to say. With the choice of toggle, touch-to-talk, and touch-to-mute, you're covered in all scenarios. The OLED display on the bottom makes setting up simple, and the LED on top can also be set in standard mode or conference mode. The internal lithium-ion batteries last up to 12 hours for a full days work, or be used while charging via USB Type-C.

Please note that this transmitter will require an Audio-Technica ATW-1421 receiver. The ATW-T1407 desk stand transmitter is for adding to a pre-existing System 20 PRO wireless system or starting a new system with a separate ATW-1421 receiver.

System 20 PRO Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
  • User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
  • Compatible with Audio-Technica’s Wireless Manager Software software for centralized management of system settings and operations
  • Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
  • AES128 encryption for security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Water- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
  • Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
  • Supports mixed output for situations with limited input channels


Specifications

General Specifications

  • Operating Frequencies: 2,402 to 2,480 MHz
  • Dynamic Range: 120 dB (A-weighted), typical
  • Total Harmonic Distortion: < 0.05%, typical
  • Maximum Simultaneous Use (recommended):
    -Standard: 10 channels
    -HD mode: 20 channels
    It depends on the region and environment.
  • System Frequency Response: 20 to 20K Hz
    Varies depending on the microphone to be installed.
  • Delay:
    -Standard: 2.8ms
    -HD mode: 6.7ms
  • Audio Sampling Rate:
    -Standard: 24-bit/48 kHz
    -HD mode: 24-bit/48 kHz
  • Encryption Method: AES128

ATW-T1406 Boundary Mic Specifications

  • Modulation Mode: GFSK
  • RF Output Power: 10mW EIRP
  • RF Sensitivity: -90 dBm, typical
  • Antenna: True diversity
  • Microphone: Gooseneck microphone supported
  • Phantom Power Supply DC24V
  • Built-in Battery: 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh)
  • Battery Life:
    -When using a gooseneck microphone with no LED: Approx. 12 hours
    -When using a gooseneck microphone with an LED: Approx. 8 hours
    This varies depending on usage conditions.
  • Charging Time: Approx. 3 hours and 10 minutes
    This varies depending on usage conditions.
  • USB Charging Port: USB Type-C (USB 2.0)
  • Operating Temperature Range: 5ºC to +40ºC (41°F to 104°F)
  • Dimensions: 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H)
  • Weight: 490 g (17 oz), including battery
  • Included Accessories: USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9'])


Ready-to-Go Systems from System 20 PRO

Keep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

ATW-1421 Dual Body-Pack System

ATW1422 Dual Handheld Microphone System

ATW-1423 Handheld and Body-Pack System

System 20 Pro Components

Build your system from the ground up to be confident you have exactly what you need to meet your demands!

ATW-R1440 4 Channel Receiver

ATW-T1402 Handheld Wireless Mic

ATW-T1401 Body-Pack Transmitter

ATW-T1406 Boundary Microphone

ATW-T1407 Desk Stand Transmitter


Product Details

BrandAudio-Technica
ModelATW-T1407
Part Number240-5758
UPC4961310161569
Unit of MeasureEach
Weight1.81
