Audio Technica ATW-1421 System 20 PRO Receiver with two Body-Packs

Audio-Technica
Part #240-5751

Audio Technica ATW-1421 System 20 PRO Receiver with two Body-Packs

Audio-Technica
Part #240-5751
Model: ATW-1421

Take the freedom of a wireless system anywhere with Audio-Technica's System 20 PRO series! Endlessly customizable, the System 20 PRO line of microphones, bodypacks, and more can easily be personalized to fit your needs. In the ATW-1421, you'll find a ready to go, pre-paired receiver and two body-packs to start your own system or expand your pre-existing setup.

Key Features
  • Use for wireless headsets, lavaliers, or instrument setups to let you roam and free your hands
  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • AES128 encryption for security
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • Microphones and cables not included. Please select microphones and/or cables with a cW-style locking 4-pin connector to complete the system
Your Price: $959.00
+ FREE SHIPPING
Bulk Pricing

Out of Stock

Special Order Item Ships in 7-10 Days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audio Technica ATW-1421 System 20 PRO Receiver with two Body-Packs

Audio-Technica's System 20 Pro Series

The wireless system you can use anywhere!

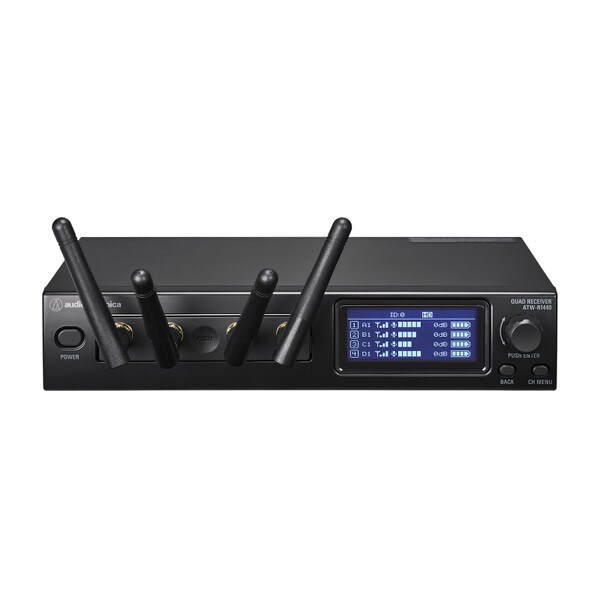

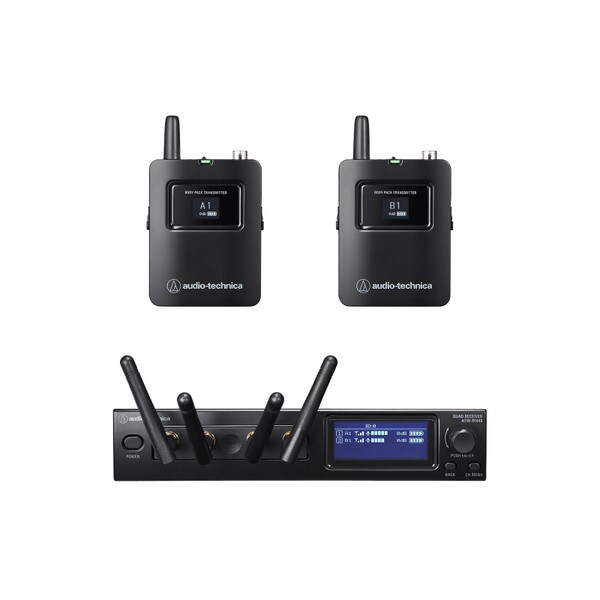

The Audio Technica ATW-1421 includes one ATW-R1440 4-channel receiver (composed of one ATW-RC14 Receiver and one ATW-RU14 Chassis) and two ATW-T1401 body-pack transmitters from the System 20 PRO line. The transmitters included are paired and ready to use out of the box, and offer all-day operation on a full charge.

Body-pack compatible microphones and cables not included. Please select microphones and/or cables with a cW-style locking 4-pin connector to complete the system.

Each transmitter has two built-in antennas, a slide-to-mute switch, OLED display, and are compatible with NiMH batteries for all day use.

System 20 PRO Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
  • User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
  • Compatible with Audio-Technica’s Wireless Manager Software software for centralized management of system settings and operations
  • Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
  • AES128 encryption for security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Water- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
  • Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
  • Supports mixed output for situations with limited input channels

Receiver Mounting Options

Undock the Receiver from the Chassis and mount remotely for a significantly greater versatility in your setup options!

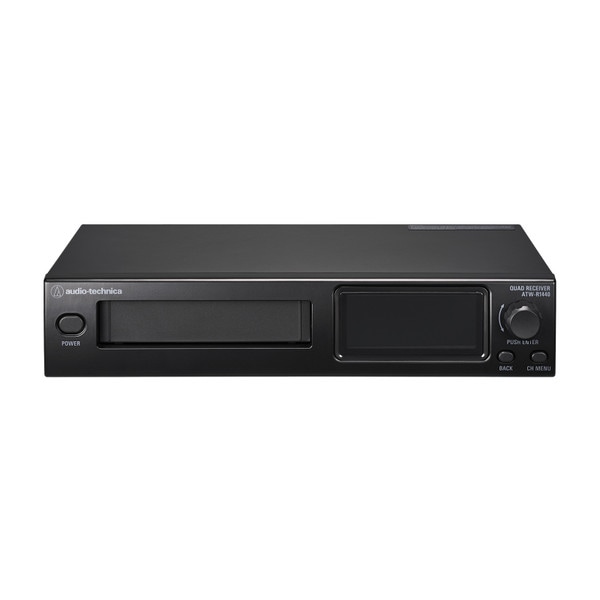

Remove the ATW-RC14 Receiver from the ATW-RU14 Chassis

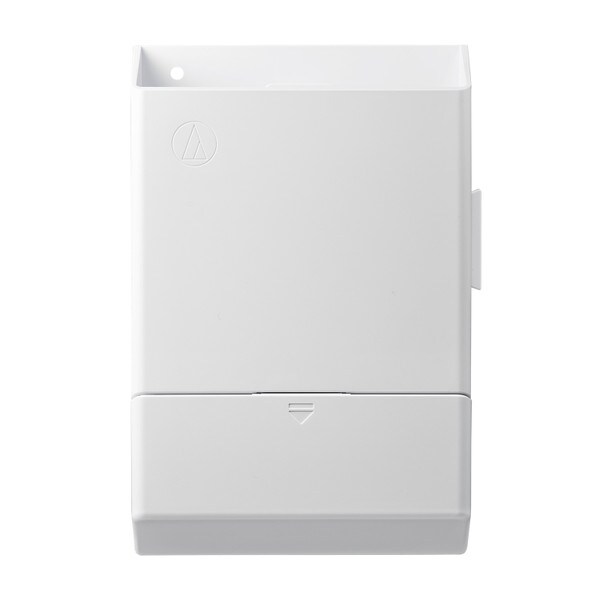

Secure the ATW-RC14 Receiver in the included unit holder cover.

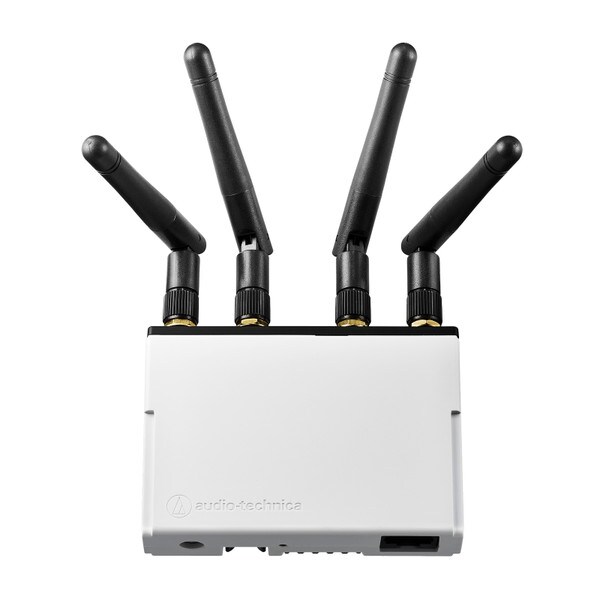

The ATW-RC14 Receiver can be mounted separately from the ATW-RU14 Chassis up to 328 ft. away via ethernet cable.

Specifications

General Specifications

  • Operating Frequencies: 2,402 to 2,480 MHz
  • Dynamic Range: 120 dB (A-weighted), typical
  • Total Harmonic Distortion: < 0.05%, typical
  • Maximum Simultaneous Use (recommended):
    -Standard: 10 channels
    -HD mode: 20 channels
    It depends on the region and environment.
  • System Frequency Response: 20 to 20K Hz
    Varies depending on the microphone to be installed.
  • Delay:
    -Standard: 2.8ms
    -HD mode: 6.7ms
  • Audio Sampling Rate:
    -Standard: 24-bit/48 kHz
    -HD mode: 24-bit/48 kHz
  • Encryption Method: AES128

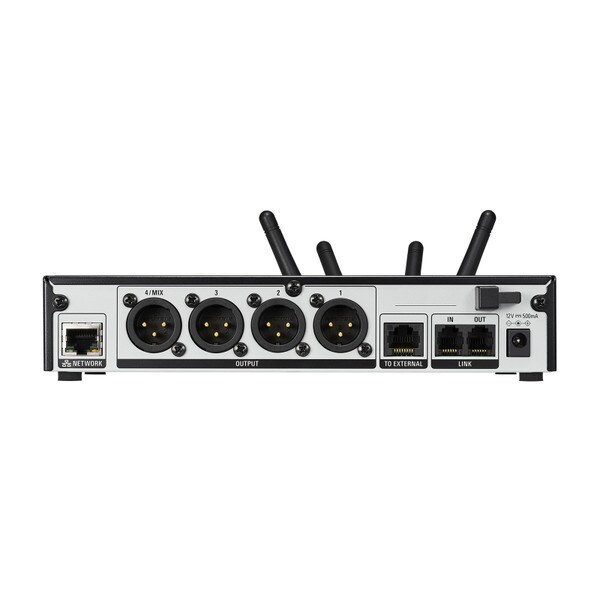

ATW-RC14 Receiver Specs

  • External Receiver Unit Port: RJ45
  • NETWORK Port: RJ45: Fast Ethernet
  • LINK IN/OUT Port: RJ12
  • Output Level:
    -LINE max: +22 dBu (+20 dBV)
    -LINE Unity: -20 Bu (-22 dBV)
    -MIC max: -12 dBu (-10 dBV)
    -MIC Unity: -50 dBu (-52 dBV)
  • Power Consumption: 3.7W
  • Power Supply: 12 V DC, 0.5 A (AC adapter)
  • Operating Temperature Range: 0ºC to +40ºC (32°F to 104°F)
  • Dimensions: 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H)
  • Weight: 740 g (26 oz)
  • Included Accessories: AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4

ATW-RU14 Chassis Specs

  • Modulation Mode: GFSK
  • RF Output Power: 10mW EIRP
  • RF Sensitivity: -90 dBm, typical
  • Antenna: 1/2 wave dipole antenna, true diversity
  • External Connection Port: RJ45
  • Power Supply: 12 V DC (RC14)
  • Operating Temperature Range: 0ºC to +40ºC (32°F to 104°F)
  • Dimensions: 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H)
  • Weight: 77 g (2.7 oz)
  • Included Accessories: Unit holder, holder cover, wood screws x 2, antenna x 4

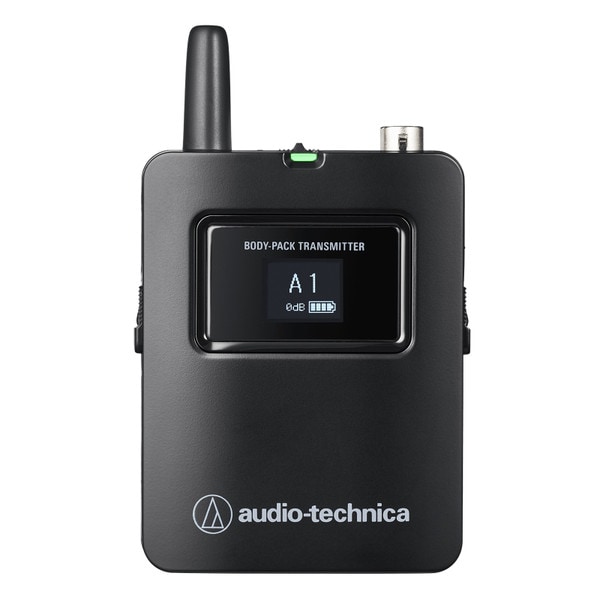

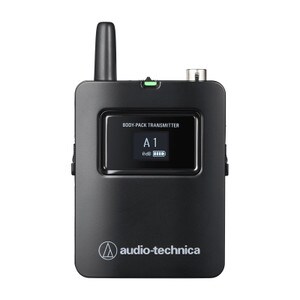

ATW-T1401 Body-Pack Transmitter Specifications

  • Modulation Mode: GFSK
  • RF Output Power: 10mW EIRP
  • RF Sensitivity: -90 dBm, typical
  • Antenna: True diversity
  • Battery: 3 V DC (two 1.5 V AA)
  • Battery Life :
    -AA alkaline batteries: Approx. 15 hours
    -AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
    -AA lithium batteries: Approx. 29 hours
    This varies depending on usage conditions.
  • Operating Temperature: 5ºC to +40ºC
  • Dimensions: 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H)
  • Weight: 80g (2.8 oz), without batteries

  • Input Connection: Four pin locking connector
    -Pin 1: GND
    -Pin 2: INST INPUT
    -Pin 3: MIC INPUT
    -Pin 4: DC BIAS +10 V

Ready-to-Go Systems from System 20 PRO

Keep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

ATW-1421 Dual Body-Pack System

ATW1422 Dual Handheld Microphone System

ATW-1423 Handheld and Body-Pack System

System 20 Pro Components

Build your system from the ground up to be confident you have exactly what you need to meet your demands!

ATW-R1440 4 Channel Receiver

ATW-T1402 Handheld Wireless Mic

ATW-T1401 Body-Pack Transmitter

ATW-T1406 Boundary Microphone

ATW-T1407 Desk Stand Transmitter

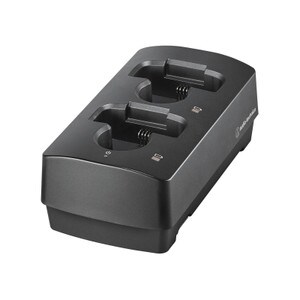

Transmitter Charging Options
