  • AtlasIED PA40G Single Channel 40 Watt Power Amplifier with Global Power Supply

AtlasIED PA40G Single Channel 40 Watt Power Amplifier with Global Power Supply

AtlasIEDPart # 242-9647
Model: PA40G

The Atlas PA40G is a compact, single-channel 40-watt power amplifier designed for efficiency and reliability in various audio applications. Ideal for paging, background music (BGM) systems, and small to medium speech privacy setups, the PA40G delivers consistent performance in distributed audio environments.

Key Features

  • Offers a balanced line-level input via a phoenix connector and a summing unbalanced RCA input
  • Equipped with a universal power supply (100VAC-240VAC ~ 50/60Hz), ensuring seamless integration across different regions
  • Occupies minimal space with a 1RU, half-rack width form factor, making it suitable for installations with limited room
  • Features removable level controls with a security cover, allowing for "set and forget" adjustments to maintain consistent audio levels.
  • Engineered for low power consumption and dependable operation, aligning with energy-saving requirements
  • Rack Mount Kit sold separately
Your Price: $352.99
+ FREE SHIPPING
MSRP: $437.99
Save $85.00 (19%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED PA40G Single Channel 40 Watt Power Amplifier with Global Power Supply is back in stock or available for preorder.

Dropship Order Item
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED PA40G Single Channel 40 Watt Power Amplifier with Global Power Supply

PA40G Single Channel 40 Watt Power Amplifier with Global Power Supply

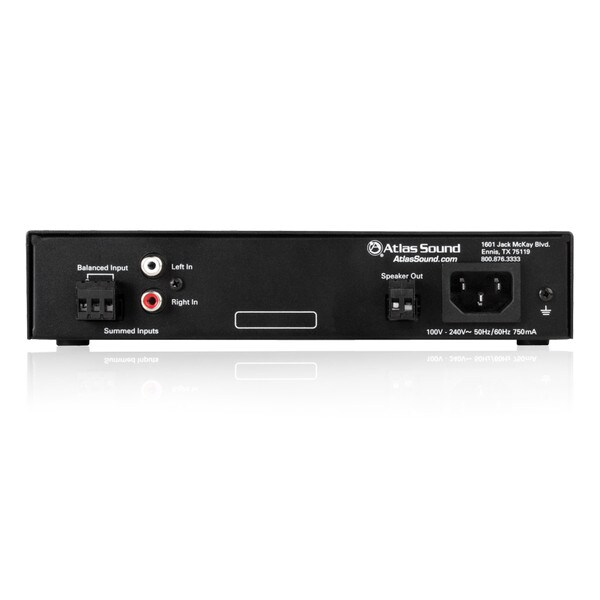

Compact and designed for efficiency and reliability, the Atlas PA40G amplifier is an excellent solution for paging, background music (BGM) systems, small to medium sound masking setups, and other distributed audio applications. Delivering 40W to a 70.7V/100V line, it features a balanced line-level input via a phoenix connector and a summing unbalanced RCA input. Speaker output is provided through a phoenix connector for 70.7V/100V lines, while additional features include status LEDs, removable level controls with a secure "set and forget" cover, and a global power supply (100VAC-240VAC). This PA series of amplifiers is part of Atlas's newly designed lineup, built from the ground up to offer professional installers the essential features needed to meet and exceed customer expectations.

Rack Mount Kit sold separately.

Specifications

  • Connector Type: Phoenix and RCA
  • Voltage Compatibility: Universal
  • Power Output: 40W @ 70.7V (125Ω), 40W @ 100V (250Ω)
  • Frequency Response: 50Hz - 20kHz
  • THD+N: 0.5% or Less @ 1kHz, Rated Output
  • Sensitivity: Line Input 500mV (600Ω)RCA 500mV (10kΩ)
  • Output Regulation: Less Than 2dB, No Load to Full Load
  • Signal to Noise Ratio
    -Balanced Input = >55dB
    -Unbalanced RCA Summed = >55dB
  • Indicators: Power, Signal, Limit
  • Power Consumption
    -Idle: 8 Watts, 0.075A, 27 BTU
    -Average: 24 Watts, 0.26A, 81 BTU
    -Max: 71 Watts, 0.8A, 242 BTU
  • Dimensions: H 1.75" (1RU) x W 8.5" x D 7.81" (44mm x 216mm x 198mm)
  • Net Weight: 2.9 lbs (1.32kg)
  • Shipping Weight: 3.1 lbs (1.4kg)
  • Fuse: T630mA

Product Details

BrandAtlasIED
ModelPA40G
Part Number242-9647
UPC612079187072
Unit of MeasureEach
Weight3.1

Product Specifications

Power Output (RMS @ 70V)25W to 50W
