  • AtlasIED PA1001G Single Channel 100 Watt Pole Mount Amplifier

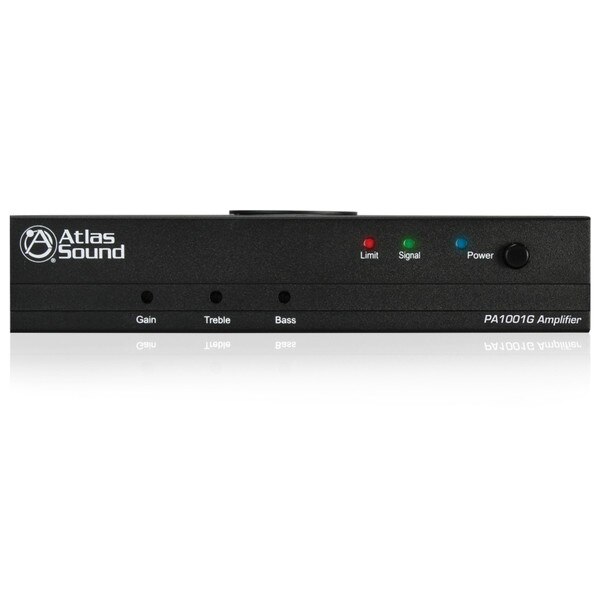

AtlasIED PA1001G Single Channel 100 Watt Pole Mount Amplifier

AtlasIEDPart # 242-9649
Model: PA1001G

The Atlas PA1001G is a compact, single-channel 100-watt power amplifier designed for efficiency and reliability in various audio applications. Ideal for paging, background music (BGM) systems, and small to medium speech privacy setups, the PA1001G delivers consistent performance in distributed audio environments. This unit also offers a unique, through hole chassis for convenient mounting with a ceiling mounted video projector.

Key Features

  • Through hole chassis design for pole mounting
  • Offers a balanced line-level input via a phoenix connector and a summing unbalanced RCA input
  • Equipped with a universal power supply (100VAC-240VAC ~ 50/60Hz), ensuring seamless integration across different regions
  • Occupies minimal space with a 1RU, half-rack width form factor, making it suitable for installations with limited room
  • Features removable level controls with a security cover, allowing for "set and forget" adjustments to maintain consistent audio levels.
  • Engineered for low power consumption and dependable operation, aligning with energy-saving requirements
  • Rack Mount Kit sold separately
Your Price: $611.99
+ FREE SHIPPING
MSRP: $761.99
Save $150.00 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED PA1001G Single Channel 100 Watt Pole Mount Amplifier is back in stock or available for preorder.

Dropship Order Item
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED PA1001G Single Channel 100 Watt Pole Mount Amplifier

PA1001G Single Channel 100 Watt Pole Mount Amplifier

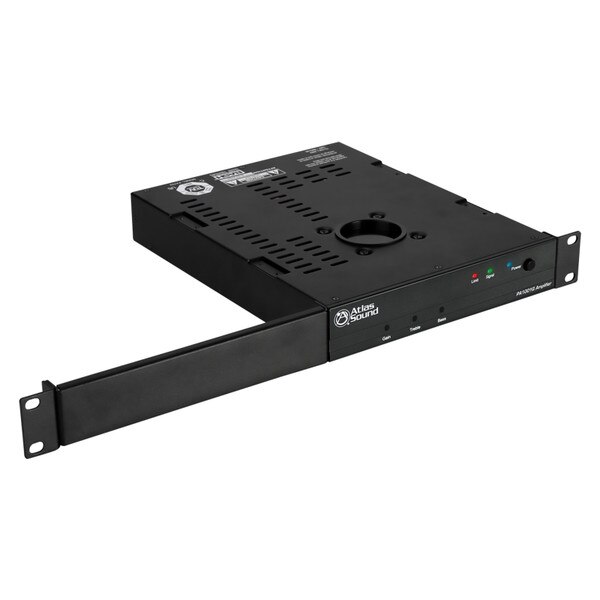

This amplifier features an ultra-compact design, occupying just 1RU in height and half a rack in width, making it ideal for space-conscious installations.

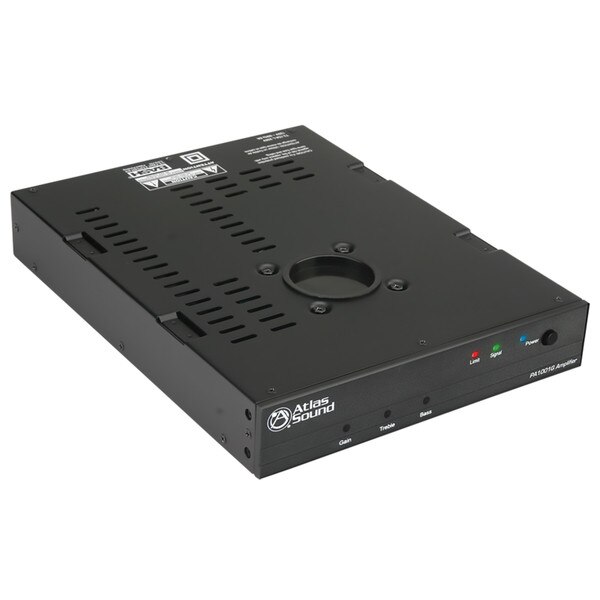

Delivering 100W into a 70V or 100V distributed system, the PA1001G provides ample power for a variety of audio applications. Its universal power supply supports 120-240VAC for seamless global operation. The patent-pending through-hole chassis design allows for easy integration with ceiling-mounted video projectors, while its rack-mountable form factor accommodates both standalone and traditional installations. Rack mount kit sold separately.

Remote turn-on is easily managed via audio or AC trigger sensors, and an optional high-pass filter ensures precise power distribution when needed. A master remote level control can be adjusted using an external 10k potentiometer, while the line output allows for easy daisy-chaining of multiple amplifiers.

Equipped with a built-in mixer function, the PA1001G supports two different audio sources simultaneously. The summed RCA unbalanced inputs and the balanced input are electrically summed while remaining isolated from each other.

Versatile and adaptable, the PA1001G is well-suited for a range of applications, including boardrooms, restaurants, commercial paging, and background music systems.

Specifications

  • Power Output 100 Watts @ 70.7V
  • Harmonic Distortion 0.002
  • Frequency Response:
    -No Hi-Pass Filter: 30Hz – 20kHz (±3dB)
    -Hi-Pass Engaged: 100Hz – 20kHz (±3dB)
  • Signal to Noise Ratio: -100dB Below Rated Output (A-Weighted)
  • Input Sensitivity: RCA Unbalanced: 50mV – 320mV Adjustable Balanced: 320mv
  • Input Impedance:
    -RCA Unbalanced: 10k
    -Balanced: 20k
  • Audio Turn On Trigger: 1mV – 20mV
  • AC Turn On Trigger: 100mA
  • Power Required: 120-240Vac, 50-60Hz
  • Power Consumption:
    -10 Watts Sleep Mode
    -16 Watts Idle Mode
    -165 Watts Full Load (70V)
  • Height: 1.75" (45mm)
  • Width: 8.5" (216mm)
  • Depth: 11.5" (292mm)
  • Weight: 4.9lbs (2.2Kg)

Product Details

BrandAtlasIED
ModelPA1001G
Part Number242-9649
UPC612079186716
Unit of MeasureEach
Weight4.9

Product Specifications

Power Output (RMS @ 70V)51W to 100W
Weight Range< 10 lbs.
