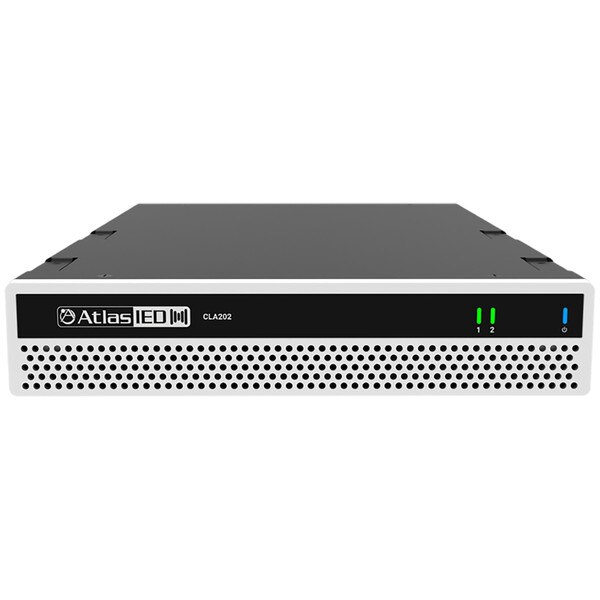

AtlasIED CLA202 200W 2 Channel Multi Impedance Power Share Amplifier

AtlasIEDPart # 242-9605
Model: CLA202

The Atlas CLA202 is a versatile two-channel, 200-watt amplifier featuring innovative Power Share technology, allowing precise distribution of power across different zones, regardless of load impedance. This flexibility makes it ideal for both commercial distributed systems (25V/70.7V/100V) and low-impedance applications (2, 4, or 8 ohms).

Key Features

  • Each channel can be configured individually to 2Ω, 4Ω, 8Ω, 25V, 70.7V, or 100V
  • Global auto-sensing design delivers a stable output even in fluctuating power conditions
  • Power share allows each channel to be configured to be 2x100W, 1x175W/25W, 1x150W/50W, or 1x125W/75W
  • Quickly switch power configuration via switches located on the rear panel
  • Direct-coupled thermal transfer design effectively maintains optimal temperature across all loads and output levels
  • Convection cooled with additional whisper-quiet fans when necessary
  • 1RU, half-rack design demands little space in your equipment rack
Your Price: $753.99
+ FREE SHIPPING
MSRP: $937.99
Save $184.00 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when AtlasIED CLA202 200W 2 Channel Multi Impedance Power Share Amplifier is back in stock or available for preorder.

Dropship Order Item
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

AtlasIED CLA202 200W 2 Channel Multi Impedance Power Share Amplifier

CLA202 200-W Two Channel Multi Impedance Power Share Amplifier

The Atlas CLA202 is a two-channel, 200W multi-impedance amplifier featuring Atlas's patent-pending Power Share technology. This groundbreaking feature enables precise power distribution across different zones, regardless of load impedance, providing unmatched flexibility in system design.

Built for versatility, the CLA202 supports both commercial 25V/70.7V/100V distributed audio systems and low-impedance applications, accommodating loads as low as 2 ohms. Its advanced switch-mode power supply with global auto-sensing ensures consistent performance, even in fluctuating power conditions. Engineered for optimal efficiency, the amplifier's output stage delivers high dynamic voltage and current to virtually any loudspeaker configuration.

Setting up the CLA202 is straightforward, with intuitive rear-panel switches allowing users to select power levels and load types effortlessly. The amplifier's innovative output stage features a low-resistance, direct-coupled thermal transfer design, ensuring even heat distribution across all loads and output levels. Meeting Energy Star efficiency standards, the CLA202 consumes less than 1W in standby mode and operates primarily via convection cooling. When additional cooling is needed, its variable-speed, whisper-quiet fans activate automatically.

Ideal for large distributed constant voltage systems, high SPL reinforcement applications, or a combination of both, the CLA202 provides a powerful, cost-effective, and highly adaptable solution for professional audio installations.

System

  • Type: 2 Channel Power Amplifier
  • Topology: Class D
  • Output Power: 200W
  • # Inputs: 2
  • GPI Ports: 5, Euro Block 3.5mm
  • Output Speaker Terminals: 2, Removable Euro Block, 5.08mm Pitch, Locking

Electrical Specifications

  • THD 1kHz And 1dB Below Rated Power: ≤0.15%
  • Signal To Noise Ratio 8 Ohm: >93dBA Below Rated Output (A-Weighted)
  • Cooling: Idle Mode: Convection, Audio Signal Sense: Fan, Variable

Dimensions And Weight

  • Rack Space: 1 RU, 8.5" Wide (half rack)
  • Dimensions: (HxWxD) 1.75" x 8.75" x 13.5" (44mm x 222mm x 343mm)
  • Shipping Dimensions: (HxWxD) 4.5" x 17.25" x 11.75" (114mm x 438mm x 298mm)
  • Weight: 5.3 lbs. (2.36kg)
  • Shipping Weight: 8.5 lbs. (3.78kg)
  • Manufacturer Warranty Period: 36 months from date of purchase

Product Details

BrandAtlasIED
ModelCLA202
Part Number242-9605
UPC612079703555
Unit of MeasureEach
Weight8.33

Product Specifications

Power Output (RMS @ 70V)101W to 200W
Weight Range< 10 lbs.
