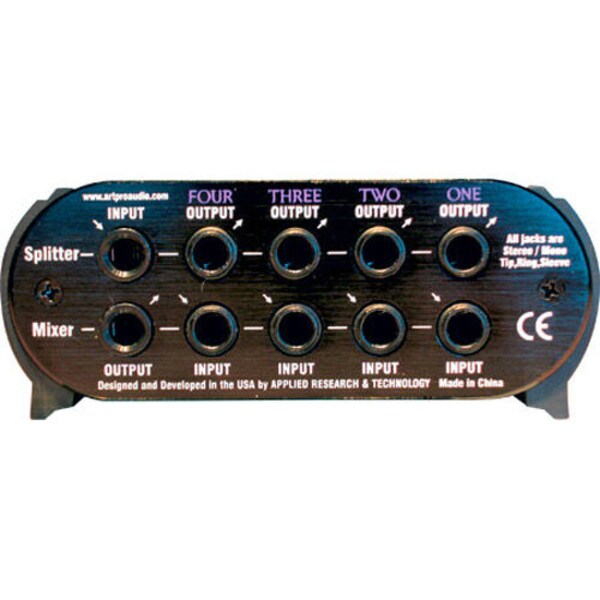

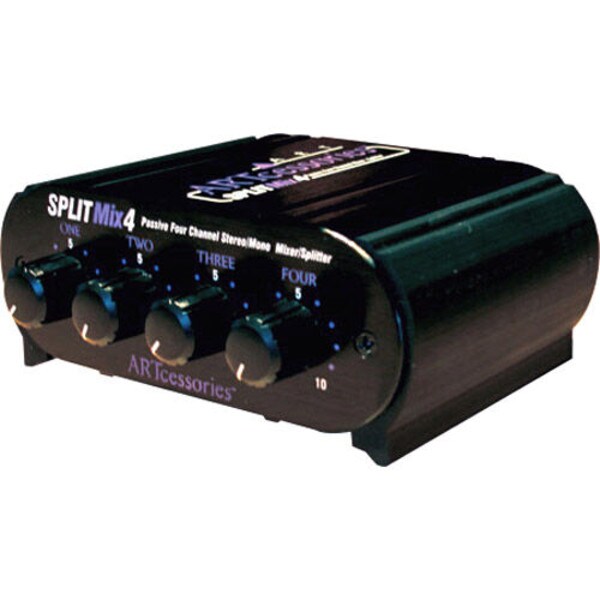

ART SPLITMix4 Four Channel Passive Splitter/MixerThe SPLITMix4 is a fully passive hybrid mixer that offers a wide variety of configurations. Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels, or combine the configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels thru 4 independent level attenuators to 4 stereo output channels. Independent stereo level controls are provided on each channel. All 1/4" connections are stereo TRS (Tip, Ring, Sleeve) and all channel connections have intelligent switching to allow for a wide variety of configurations. Plugging into a mix input channel removes it from the splitter bus, and plugging into a splitter output channel removes it from the mix bus. Stereo or mono operation is determined by the type of 1/4" plug and cabling that you use. The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The Level attenuators cover a wide range and offer over 90 dB of attenuation and channel isolation. The SPLITMix4 is designed primarily as a line level device with medium input and output impedances.
Specifications: • Frequency response: 20 Hz – 20 kHz, ±1 dB • THD: <0.005% @ 1 kHz (typical) • Phase response: <10° @ 20 kHz • Input/Output connections: 1/4" TRS stereo • Input impedance: 25k - 100k Ohms • Output impedance: 1k - 4k Ohms • Insertion loss: 12 dB (typical) • Maximum attenuation: >90 dB (typical) • Channel isolation: >90 dB (typical) • Power requirements: None (fully passive) • Dimensions: 1.85" H x 4.6" W x 4.1" D (47 x 117 x 104 mm) • Weight: 0.84 lbs. (0.38 kg)
ARTcessories™ are taking the audio world by storm and quickly becoming a popular brand with musicians, DJs and studio engineers everywhere around the World. Split, combine, mix, power... you name it. On stage, in the studio, in your living room, they’re easy to use and are built to last. For those times when you need a little box to fix a big need or to make more out of a smaller project, ARTcessories™ has you covered. You'll discover a robust line of useful tools which include a complete range of direct boxes, headphone amps, small mixers, mic cable combiner/splitters and much more. ARTcessories™ are designed to deliver affordable solutions for a multitude of audio needs for any size project.
