Rolls DA134 4-Channel RCA Line Level Distribution Amplifier with 3.5 mm Input

RollsPart # 245-1010
Model: DA134

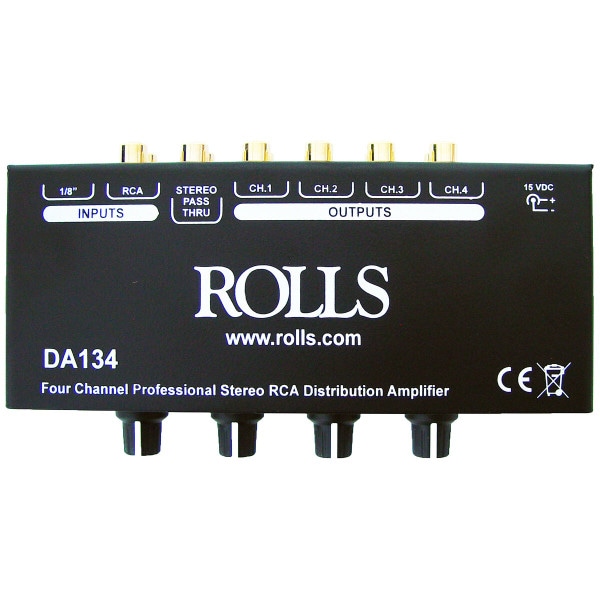

Designed for high-end line level audio distribution, the DA134 is a four-channel line level distribution amplifier with a small footprint.

Key Features

  • Expands the output of virtually any stereo device to multiple outputs
  • Front panel volume controls
  • Mono or stereo operation
  • Audiophile frequency response
  • Compatible with iPad, iPod, laptop, etc.
Your Price: $119.00
+ FREE SHIPPING
MSRP: $139.00
Save $20.00 (14%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Rolls DA134 4-Channel RCA Line Level Distribution Amplifier with 3.5 mm Input is back in stock or available for preorder.

Order in the next 1 hr 9 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Rolls DA134 4-Channel RCA Line Level Distribution Amplifier with 3.5 mm Input

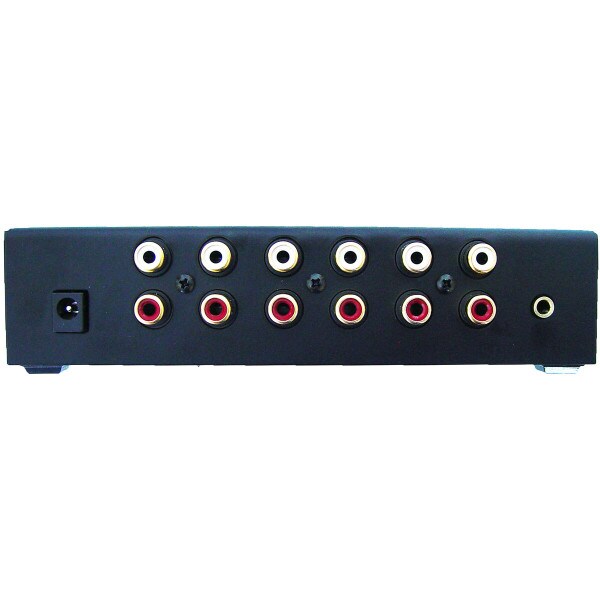

Featuring RCA and 1/8" inputs that can be switched mono or stereo, the DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to provide line level signals, and more than one DA134 can be cascaded if more outputs are needed. The DA134 is the perfect solution anywhere high quality sound distribution is required. AC power adapter included. Made in the USA.

For more than two decades, those in the know have turned to Rolls for the highest quality, reliability, and value. Rolls is an innovative company specializing in domestically manufactured signal interface accessories, mixers, amplifiers, and processors for the audio professional.

Specifications: • Frequency response: DC - 60,000 Hz (±1 dB) • Input impedance: 10k ohms • Output impedance: 470 ohms • Maximum input level: +12 dBV • Maximum output level: +12 dB • Maximum gain: 20 dB • Signal-to-noise ratio: >90 dB • Crosstalk: -70 dB (stereo) • THD: <0.008% • Dimensions: 6.5" x 3.5" x 1.5" • Weight: 1.2 lbs.

Product Details

BrandRolls
ModelDA134
Part Number245-1010
UPC675889013405
Unit of MeasureEach
Weight1.65

Product Specifications

Mixer TypeAnalog
