ALPS 10KAX2 10K Ohm Audio Taper Stereo Potentiometer 6mm Shaft

Parts ExpressPart # 023-204
Model: 10KAx2

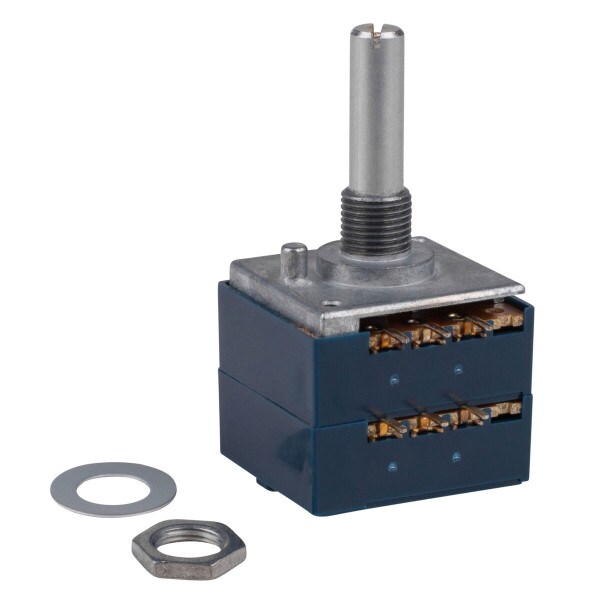

The Alps 10KAX2 is a 10K ohm stereo potentiometer of the highest quality. The 6 mm straight shaft is 25 mm long with M8 thru-hole mounting, hardware included. For over 6 decades, Alps has been made in Japan, and has also been the only choice for serious musicians, audiophiles, and technicians.
Your Price: $16.29
MSRP: $20.99
Save $4.70 (22%)
Bulk Pricing
Quantity:Qty: 1-4 $16.29/ea
Quantity:Qty: 5+ $14.74/ea
Back-Ordered
Get Notified When Available

We'll send you an email when ALPS 10KAX2 10K Ohm Audio Taper Stereo Potentiometer 6mm Shaft is back in stock or available for preorder.

Estimated back in stock 8/29/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ALPS 10KAX2 10K Ohm Audio Taper Stereo Potentiometer 6mm Shaft

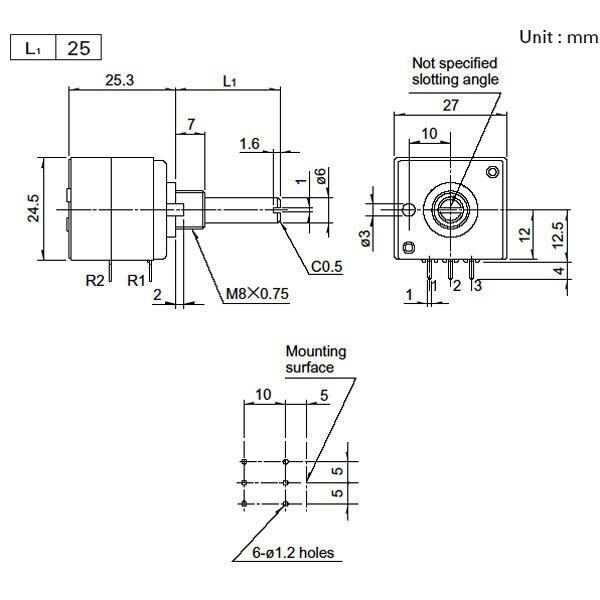

The Alps 10KAX2 is a 10K ohm stereo potentiometer of the highest quality. The 6 mm straight shaft is 25 mm long, with M8 thru-hole mounting, hardware included. The body of the potentiometer is 1.073" W  x 0.97" H x 0.93" D (27 x 24.5 x 24 mm) without terminals. 1/2 watt power rating, 30 VAC max. For over 6 decades, Alps has been made in Japan, and has also been the only choice for serious musicians, audiophiles, and technicians.

Maybe you're repairing, restoring, or hot rodding an existing guitar, amplifier, or other electronic equipment. Perhaps you're devising your own unique musical or audio gear from scratch, working on classic vintage receivers, radios, or TV sets. Any way you slice it, Parts Express has the quality components you need to finish the job right, at prices you can afford.

Product Details

BrandParts Express
Model10KAx2
Part Number023-204
UPC848864029733
Unit of MeasureEach
Weight0.05

Product Specifications

Electrical CharacteristicsLogarithmic / Audio Taper
Value10K
