NEW 8 Terminal Barrier Strip Jumper Bar 12mm Pitch-Red

Parts ExpressPart # 090-828

This 8 position insulated terminal block jumper shunt strip fits 12 mm pitch barrier terminal strips. It conveniently connects all 8 poles without having to use extra wires. Break them into smaller jumpers for barrier strips with fewer poles.

Key Features

  • Fits 12 mm pitch lug type barrier terminal strips
  • Insulated to prevent accidental electrical shock or short circuit
  • Break them into smaller jumpers for terminal strips with fewer poles
  • Quickly connects 8 poles together
  • Red for polarity identification if needed
NEW $0.98
MSRP: $2.49
Save $1.51 (61%)
Bulk Pricing
Quantity:Qty: 1-9 $0.98/ea
Quantity:Qty: 10+ $0.88/ea
In Stock
Get Notified When Available

We'll send you an email when 8 Terminal Barrier Strip Jumper Bar 12mm Pitch-Red is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

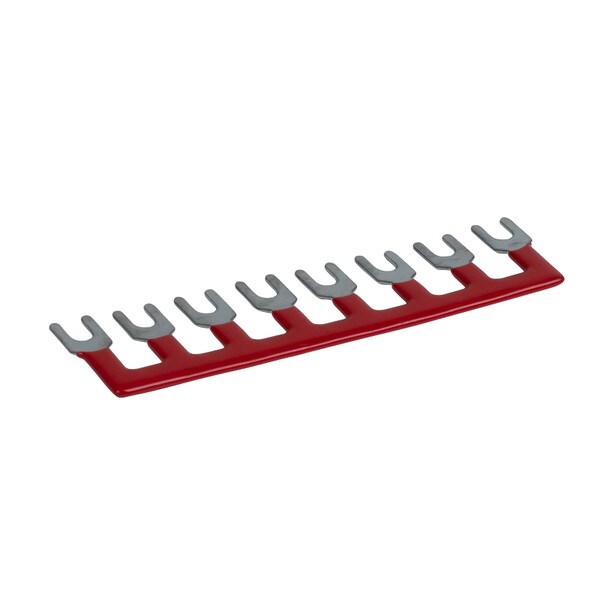

8 Terminal Barrier Strip Jumper Bar 12mm Pitch-Red

Why fool with stripping wires and wrapping them around screws? This insulated 8 position terminal jumper bar connects all 8 poles together in seconds making the whole barrier strip one conductor for positive or negative hook-up. Break it in half and now you have two 6 position jumper bars making one barrier strip positive and negative, or use it on a smaller 6 pole terminal barrier strip. The insulation helps prevent accidental electrical shock or short circuits. Its 12 mm pitch only fits 12 mm pitch lug terminal barrier strips.

Specifications: • Terminals: 8 • External fork width: 0.32" (8.07 mm) • Internal fork width: 0.16" (4.1 mm) • Fork thickness without insulator: 0.033" (0.85 mm) • Total bar width with forks: 3.66" (93 mm) • Pitch: 12 mm.

Product Details

BrandParts Express
Part Number090-828
UPC848864079127
Unit of MeasureEach
Weight0.03
