miniDSP C-DSP 8x12 DL 8 In 12 Out Automotive DSP with Dirac LiveminiDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live room correction, a 400 MHz SHARC floating-point processor and 32-bit AKM converters with -107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.

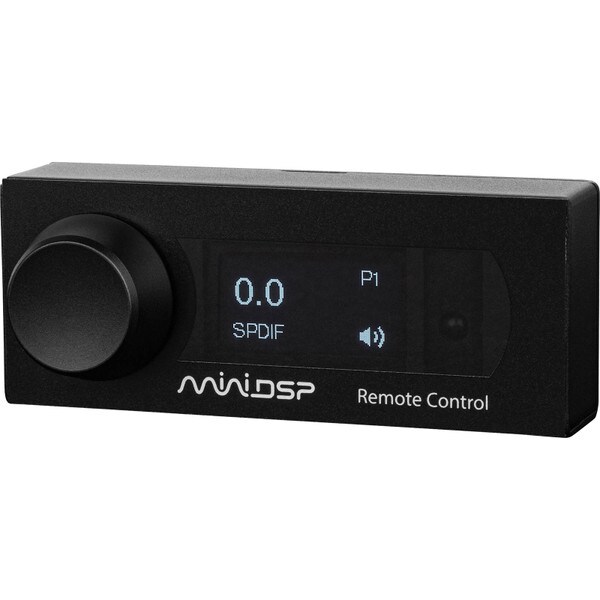

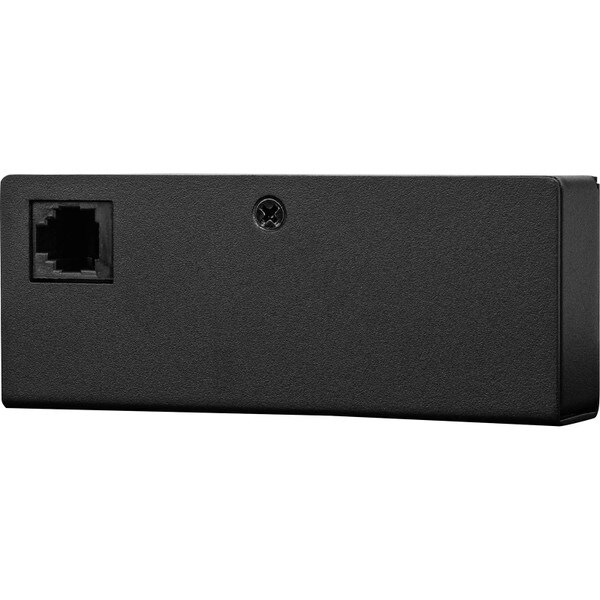

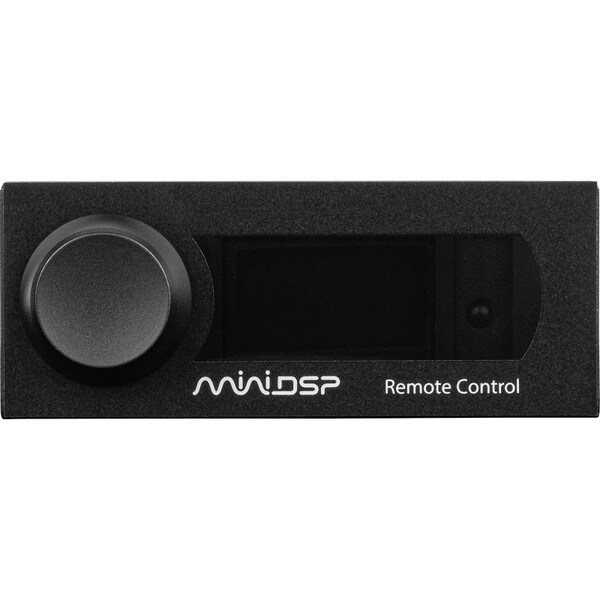

Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote with OLED screen for dash or console mounting and a microSD card slot for offline configuration.
Specifications:
•
DSP engine: Analog Devices ADSP21489 floating point DSP
•
Converters: 32-bit AK4456(DAC), 32-bit AK5556(ADC)
•
Internal processing resolution & sample rate: 32-bit / 48 kHz with Dirac live processing
•
Input / outputs: 8/12
•

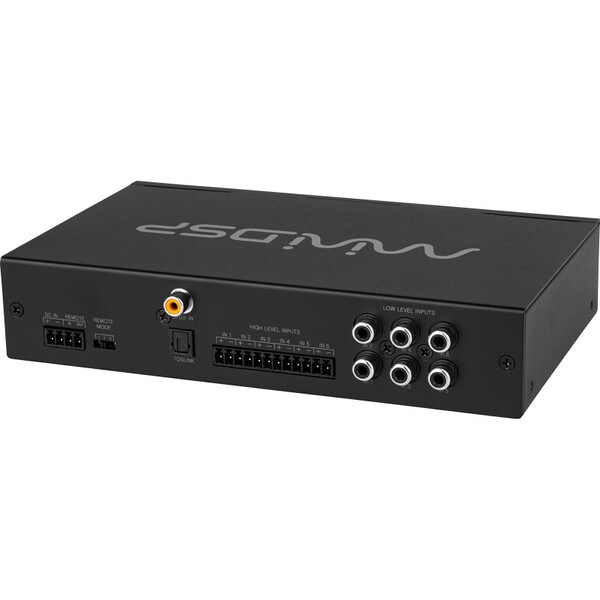

Input connectivity: High level (6 terminal block), Low level unbalanced (6 RCA), SPDIF (RCA), Toslink (optical), supported ASRC: 44.1~192kHz
•

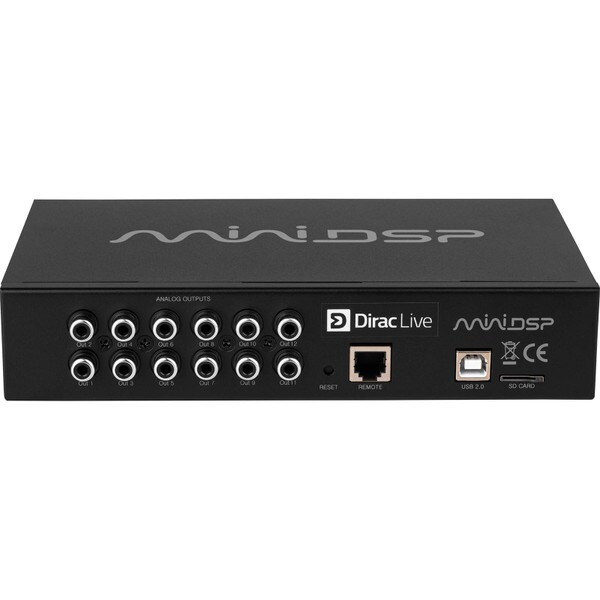

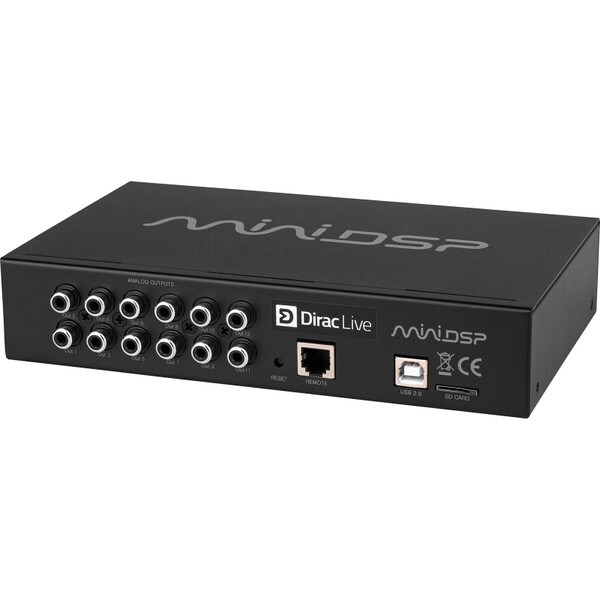

Output connectivity: 12 x RCA
•
Input / output max levels: 8 or 12 Vrms high level in, 4 or 2 Vrms low level in, 6 Vrms out
•
Input impedance: High level 68 ohms, low level 10 kohms
•
Output impedance: 560 ohms
•
Calibration software: C-DSP 8x12 DL plug-in
•
Filtering technology: Dirac Live + miniDSP speaker processing toolbox
•
DSP presets: 4
•
Power: Isolated DC-DC conversion for car audio
•
Dimensions: 1.6" x 8.1" x 4.8"
