miniDSP C-DSP 8x12 V2.0 8 In 12 Out Automotive DSP

miniDSPPart # 230-343
Model: C-DSP 8x12 V2.0
The miniDSP C-DSP 8x12 high-end mobile/car audio next-generation processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. Versatile inputs and output options in a compact, rugged enclosure, the C-DSP 8x12 is perfect for both simple stereo setups as well as multi-channel active systems.

Key Features

  • 400 MHz 32-bit SHARC floating-point DSP with up to 192 kHz processing for high-resolution audio
  • 32-bit DAC/ADC converters for low-noise, high dynamic range sound
  • Digital and analog inputs with 8 inputs and 12 analog outputs for versatile connectivity
  • Flexible DSP processing including parametric EQ, crossovers up to 48 dB/octave, compressors, and advanced matrix mixing
  • Fully differential balanced inputs for improved noise rejection in automotive environments
  • Fully differential balanced inputs for improved noise rejection in automotive environments
  • On-board isolated power supply, remote trigger I/O, and microSD slot for firmware updates and configurations
Similar items that may interest you:
Dayton Audio DSP-408 4x8 DSP Digital Signal Processor for Home and Car Audio
Price: $199.98Part # 230-500
See all items in Car Crossovers & Equalizers
Your Price: $999.98
+ FREE SHIPPING
MSRP: $1,299.99
Save $300.01 (23%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when miniDSP C-DSP 8x12 V2.0 8 In 12 Out Automotive DSP is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

miniDSP C-DSP 8x12 V2.0 8 In 12 Out Automotive DSP

miniDSP C-DSP 8x12 V2.0 8 In 12 Out Automotive DSP

Premium Digital Audio Processor for Mobile/Car audio installations, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, 32bit converters, Remote for Preset/Master & Sub volume control

The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience.

The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.

    Features

  • 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing
  • 32bit DAC/ADC chipsets
  • THD+N 0.0007%, 115dB SNR
  • Digital and analog inputs (Low/High levels), 12 analog outputs
  • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
  • Fully differential balanced inputs
  • Optional Dirac live upgrade (Read here for more info)
  • Windows/Mac compatible GUI
  • Remote control or preset/master & sub volume control

    What's in the box?

  • 1 x C-DSP 8x12 DSP processor
  • 1 x 1m USB cable

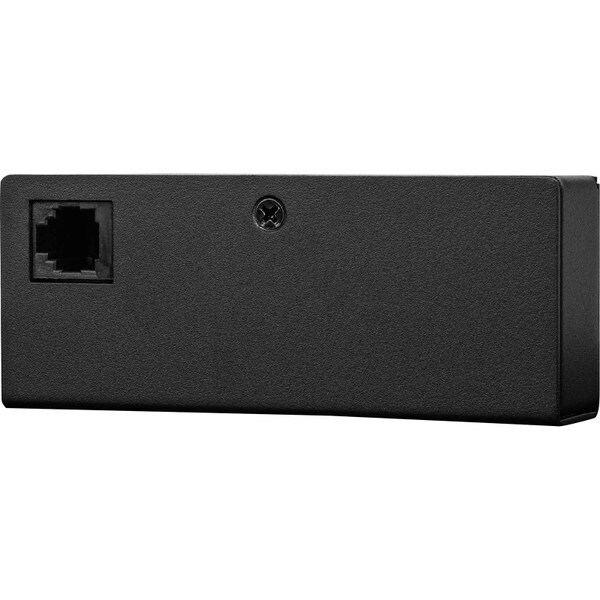

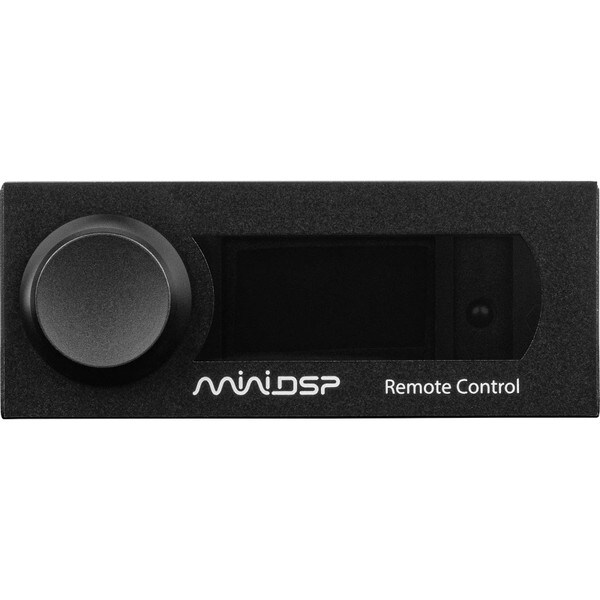

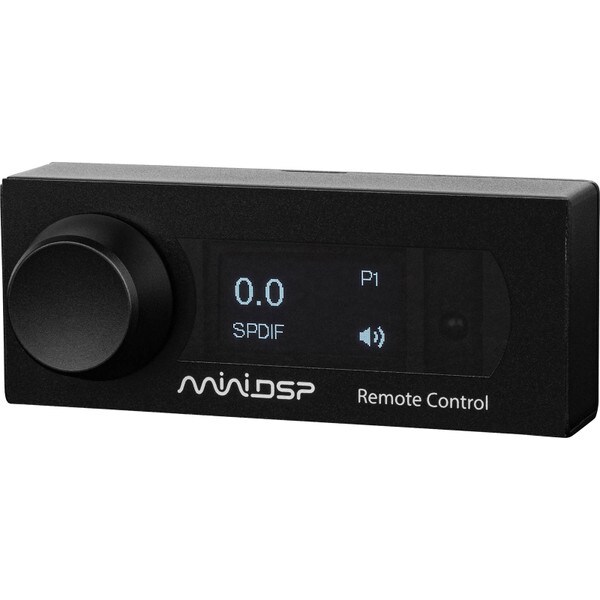

  • 1 x 5m remote cable + OLED Remote control module
  • 1 x C-DSP 8x12 plugin license

Specifications

  • Digital Signal Processor Engine: Analog Devices ADSP21489 floating point DSP
  • Converters: 32bit AK4456(DAC), 32bit AK5556(ADC)
  • Internal Processing resolution& Sample rate: 32 bit / 192 kHz on CDSP 8x12 plugin
  • Input/Ouput Configuration: 8 in / 12 out

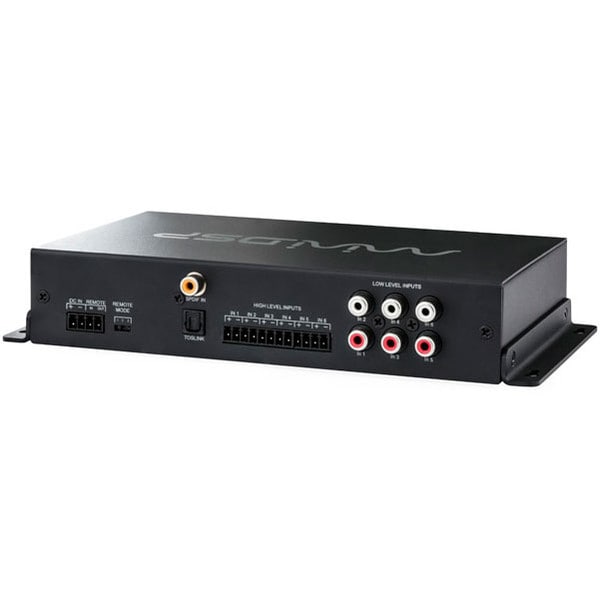

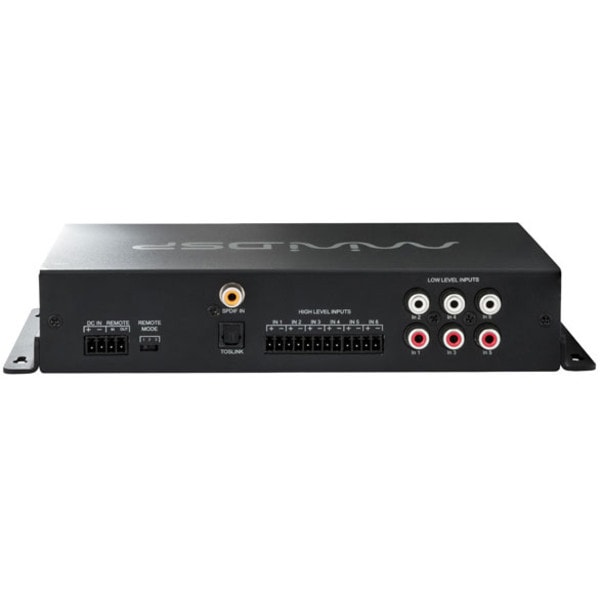

  • Audio Input Connectivity
    -High level (6 terminal block), Low level unbalanced (6 RCA)
    -Stereo Digital Inputs: SPDIF (RCA), Toslink (optical)
    -Supported ASRC: 44.1~192kHz

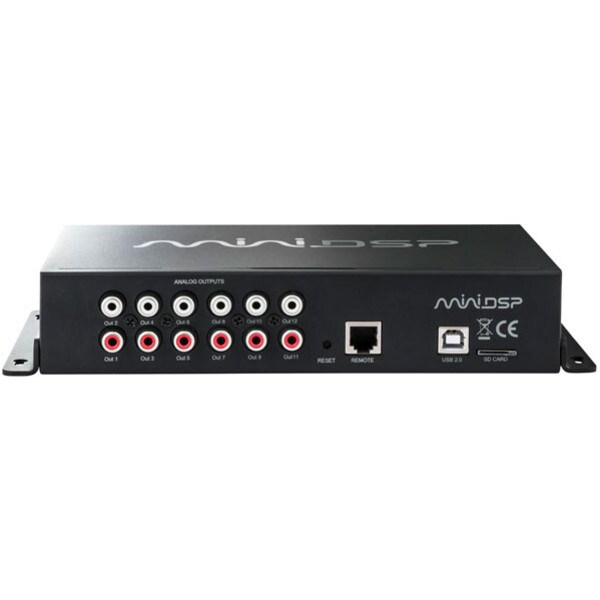

  • Audio Output Connectivity
    -12 x RCA connector
    -115dB SNR, THD+N 0.0007%
  • Input / Output Max Levels
    -IN: 8 or 12 Vrms on high level / 4 or 2Vrms on low level input
    -OUT: 4.5Vrms

  • Input Impedance
    -High level: 68Ω
    -Low level: 10 kΩ
  • Output Impedance: 560 Ω
  • Calibration Software: C-DSP 8x12 plug-in
  • Filtering Technology: IIR/FIR depending on plugin
  • DSP Presets: Up to 4 presets
  • Dimensions: 41 x 205 x 122 mm
  • Power: Isolated DC-DC conversion for Car Audio environment
  • Impulse Response Correction ✔
  • Infrared Remote Learning ✔
  • Win/Mac Compatible ✔
  • UMIK-1 Included ✘
  • Bass Management ✘
  • Room EQ Wizard Support ✔

Product Details

BrandminiDSP
ModelC-DSP 8x12 V2.0
Part Number230-343
UPC848864061818
Unit of MeasureEach
Weight3.1
