CLEARANCE Yung SD100 100W Class D Subwoofer Plate Amplifier Module No Boost

Yung International
Part #301-500

CLEARANCE Yung SD100 100W Class D Subwoofer Plate Amplifier Module No Boost

Yung International
Part #301-500
Model: SD100
The Yung SD100 100W Class D subwoofer amplifier module boasts high efficiency, 100% duty-cycle operation, great sound, and a reasonable cost.
Key Features

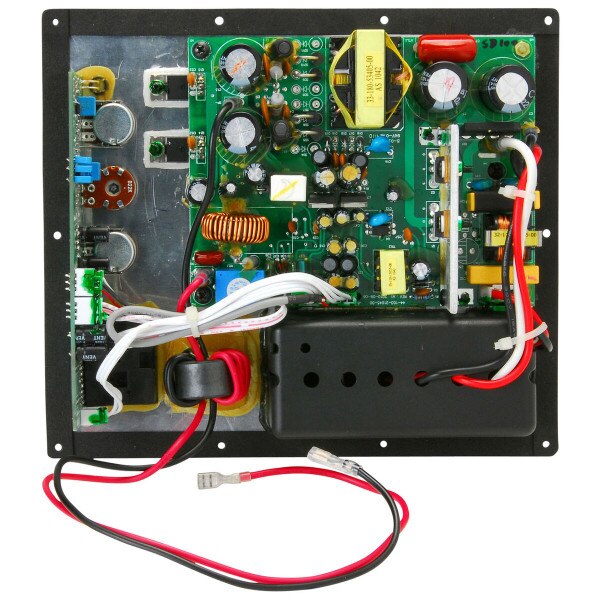

  • Class D amplifier circuit with switching power supply provides excellent efficiency
  • Capable of sustained, continuous output without thermal shutdown
  • Built-in limiter circuit protection prevents peak overloads
  • Low-level and LFE inputs for flexible interconnection
  • Manual and automatic on/off mode options
  • Fully adjustable phase, gain, and crossover points ensure system optimization
  • Switchable 115/230V input voltage
Similar items that may interest you:
See all items in Subwoofer Plate Amplifiers
60 Day No Hassle Return Policy

Overview

Yung SD100 100W Class D Subwoofer Plate Amplifier Module No Boost

Yung International's SD Series Class D subwoofer power amplifiers are equipped with the unique ability to operate continuously at full rated output—a performance attribute not shared by most home audio amp designs. The benefits of this remarkable reserve capacity include solid, punchy dynamic range and fewer "nuisance" shutdowns when operated at sustained high levels.

The amplifiers are also extremely compact, lightweight, and cool-running, allowing users to enjoy the advantages of compact system form factors and flexibility of placement. An internal peak limiting circuit prevents amplifier overload, and protection against internal and external faults is also provided. Input power requirements are user configurable to either 115 VAC or 230 VAC line voltage.

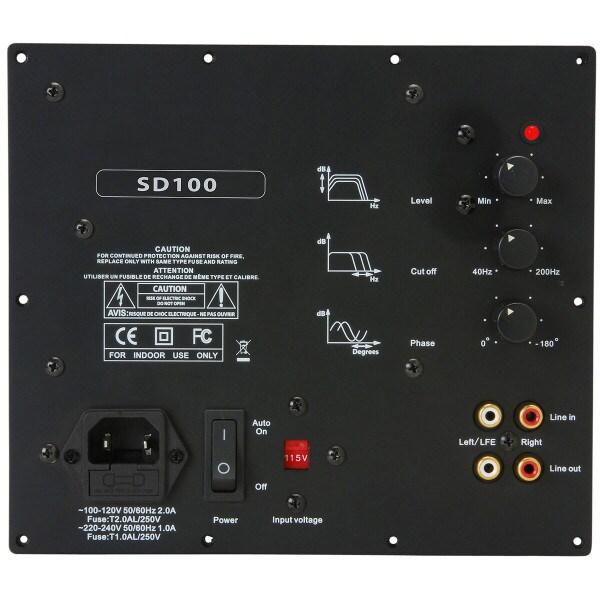

Room optimization and system integration are accomplished easily, thanks to the SD Series amps' inclusion of fully variable level, crossover frequency, and phase controls. Signal input is connected via dual RCA-type jacks, including the means to accept the output of an A/V receiver's LFE output, and dual RCA jacks are also provided to facilitate line level loop-through. When in standby mode, the amp's full active operation is engaged by signal presence of less than 1/2 watt.

Specifications: • Measured power output: 100 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio (at rated power): >90 dB • Input sensitivity (@ low level): 210 mV/50 Hz • Low pass adjustment: 40 Hz to 200 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 8" W x 7" H x 2-1/4" D; Cutout dimensions: 7-1/4" W x 6-1/4" H.

Product Details

BrandYung International
ModelSD100
Part Number301-500
UPC844632095580
Unit of MeasureEach
Weight2.8
