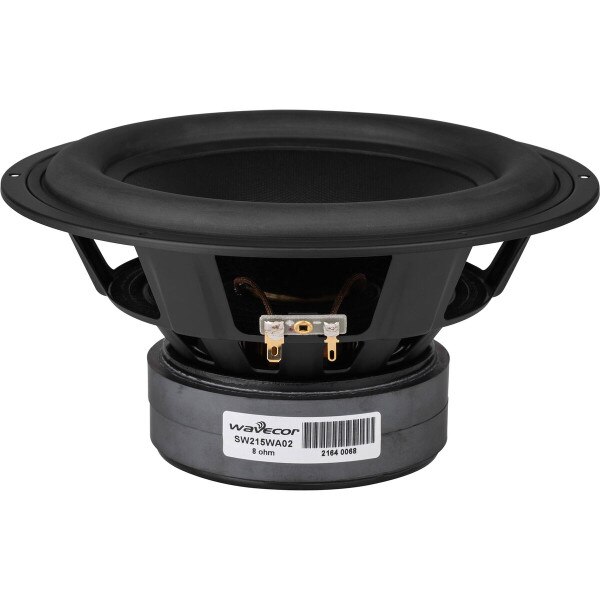

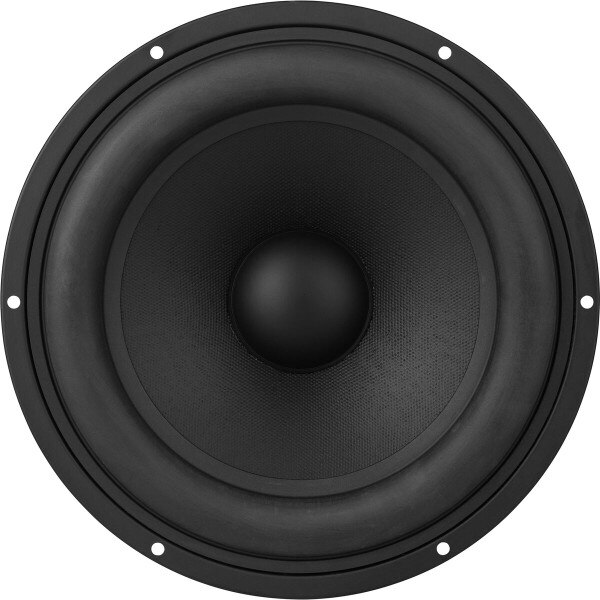

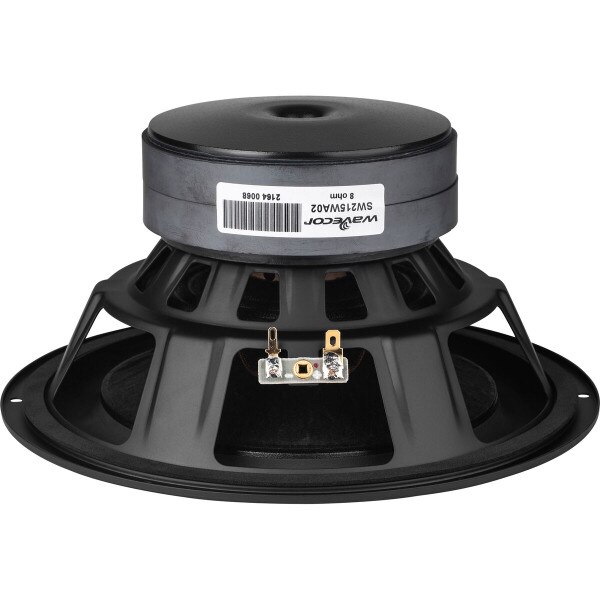

Wavecor SW215WA02 8-1/2" Balanced Drive Paper Cone Subwoofer 8 Ohm

WavecorPart # 298-1062
Model: SW215WA02
The Wavecor SW215BD02 is an 8-1/2" paper cone subwoofer that was designed specifically for high performance compact subwoofer applications where sound quality and low distortion are the priorities. The SW215BD02 utilizes balanced drive motor technology for dramatically reduced distortion.

Key Features

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Rigid air-dried paper cone to ensure piston motion even at high levels - for reduced distortion
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
  • Conex spider for better durability under extreme conditions
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Large motor structure for better control and power handling
Your Price: $128.00
+ FREE SHIPPING
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Wavecor SW215WA02 8-1/2" Balanced Drive Paper Cone Subwoofer 8 Ohm is back in stock or available for preorder.

Estimated back in stock 3/6/2026
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wavecor SW215WA02 8-1/2" Balanced Drive Paper Cone Subwoofer 8 Ohm

The Wavecor SW215BD02 is an 8-1/2" paper cone subwoofer that is equally at home in a home theater or hi-fi installation. This driver utilizes a rigid air-dried paper cone that is also designed to reduce distortion. The aluminum field-stabilizing rings and balance drive technology also aid in distortion reduction. The SW215BD02 offers extremely low mechanical losses which allows for great performance in low volume or extreme dynamic situations.

The SW215BD02 is ideal in 2 or 3-way designs when being used as a woofer or a low frequency driver. With the attached foam gasket, this driver is easily mounted in several different methods.

Product Details

BrandWavecor
ModelSW215WA02
Part Number298-1062
UPC848864054322
Unit of MeasureEach
Weight6

Product Specifications

Nominal Diameter9"
Power Handling (RMS)400 Watts
Power Handling (MAX)1500 Watts
Impedance
Frequency Response35 to 500Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1.54"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)10.7
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.92ft³
Mechanical Compliance of Suspension (Cms)0.43mm/N
BL Product (BL)11.4T·m
Diaphragm Mass Inc. Airload (Mms)49g
Maximum Linear Excursion (Xmax)10mm
Surface Area of Cone (Sd)206cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter8.46"
Baffle Cutout Diameter7.36"
Depth4.09"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.57ft³
Sealed F356.7Hz
Vented Volume1ft³
Vented F332.7Hz
