CLEARANCE WONDOM AA-AB33312 2x200W+1x400W Class D Audio Amplifier Board (T-Amp Technology)

WONDOMPart # 320-3350
Model: AA-AB33312
Power your subwoofer, left, and right channels with one powerful amp board. The AA-AB33312 delivers 400 total watts to your speakers.

Key Features

  • Power and clip indicators keep you informed
  • Phoenix-type speaker terminals and RCA inputs for easy hook-up
  • Temperature controlled fan keeps it cool and saves energy at low volume
  • Four standoffs for easy installation
Get Notified When Available

We'll send you an email when WONDOM AA-AB33312 2x200W+1x400W Class D Audio Amplifier Board (T-Amp Technology) is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

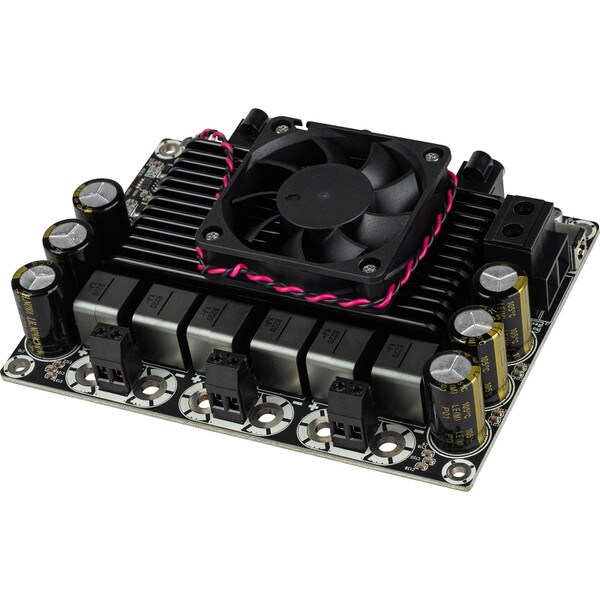

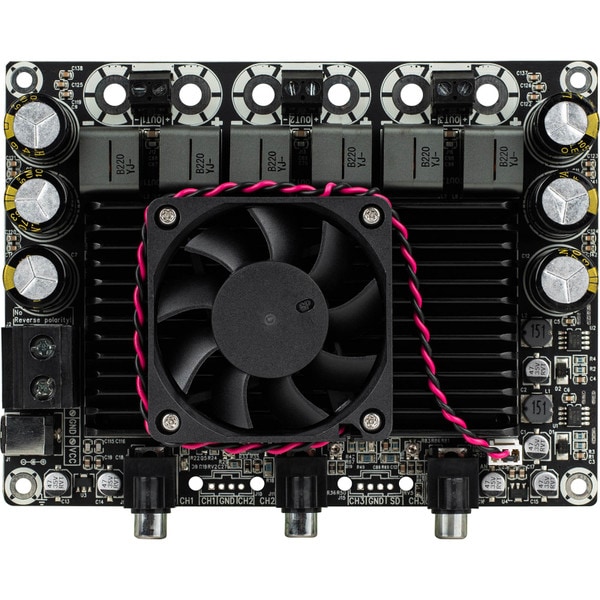

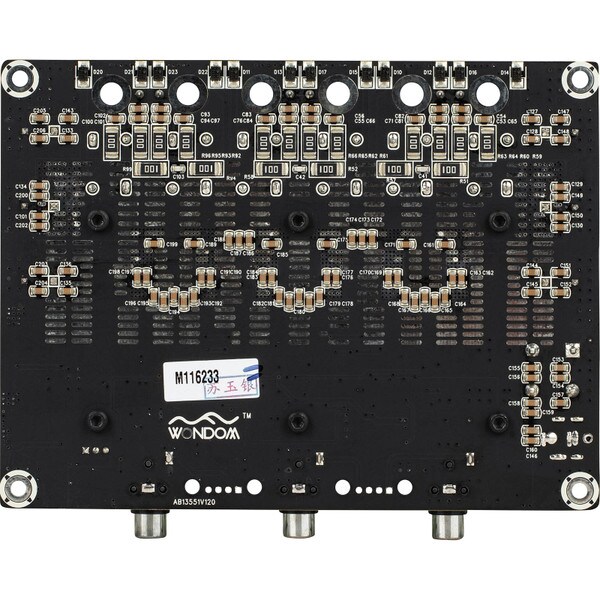

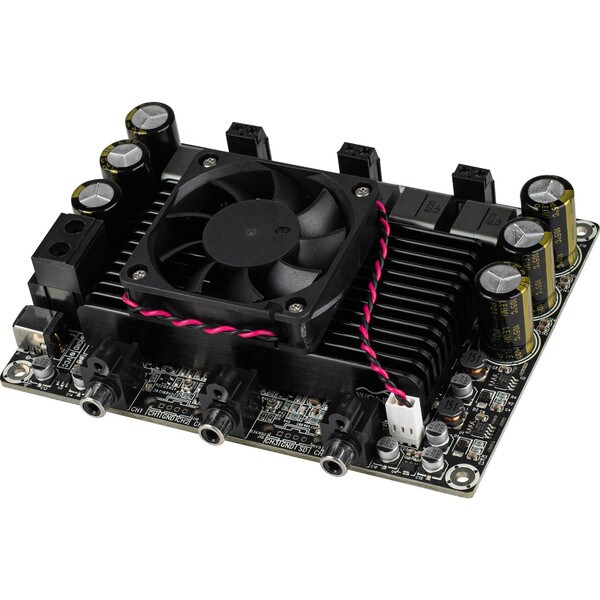

WONDOM AA-AB33312 2x200W+1x400W Class D Audio Amplifier Board (T-Amp Technology)

The AA-AB33312 is ready to power your sound bar with subwoofer or be an integrated part of your home theater system. With 200 watts per channel and 400 watts to a subwoofer, this amp board is ready to perform in home, car, or amplified speaker system.

This board comes complete with with RCA inputs and a coaxial DC input jack for easy hook-up. Strip your speaker wires, push them right into the Phoenix-type speaker terminals, and screw down the set screws. Plug in your sound source and your power supply and crank up the volume.

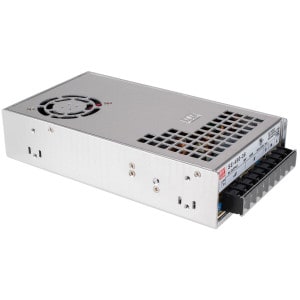

Recommended power supply 15A Switching Power Supply

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Specifications:
• Power output (with 46 VDC power supply): 400W (3 ohms, THD 10%), 270W (3 ohms, THD 1%)
• Minimum impedance: 2.5 ohms
• Frequency response: 20 to 20,000 Hz (±3 dB)
• Recommended power supply: 24 to 46 VDC, 9A regulated
• Fixed gain settings: 28 dB, 30.5 dB, 32.5 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions: 6.8" L x 4.5" W x 1.48" H

Product Details

BrandWONDOM
ModelAA-AB33312
Part Number320-3350
Unit of MeasureEach
Weight1.46

Product Specifications

Board Type2.1 Channel Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
