WBT Nextgen RCA Socket Gold Plated Red

WBTPart # 093-624
Model: WBT0210CUR
Experience true reference quality with WBT's Nextgen™ connectors. Only the finest materials and engineering come together here for absolute purity of signal and unparalleled musicality.
Your Price: $62.00
MSRP: $93.99
Save $31.99 (34%)
Bulk Pricing
1 In Stock
Get Notified When Available

We'll send you an email when WBT Nextgen RCA Socket Gold Plated Red is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

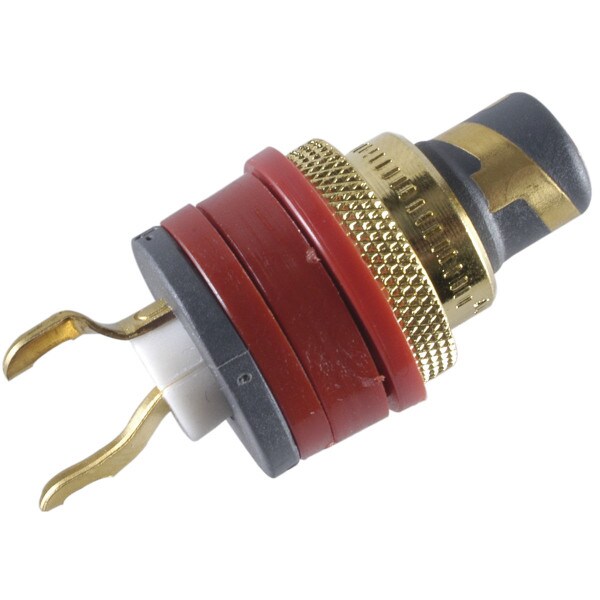

WBT Nextgen RCA Socket Gold Plated Red

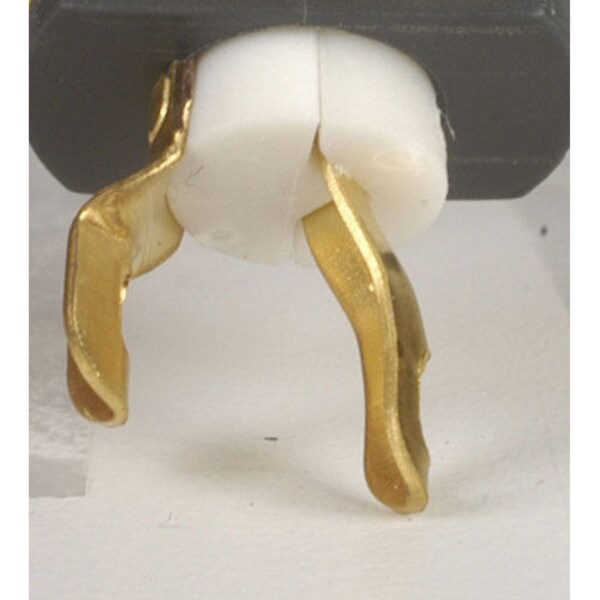

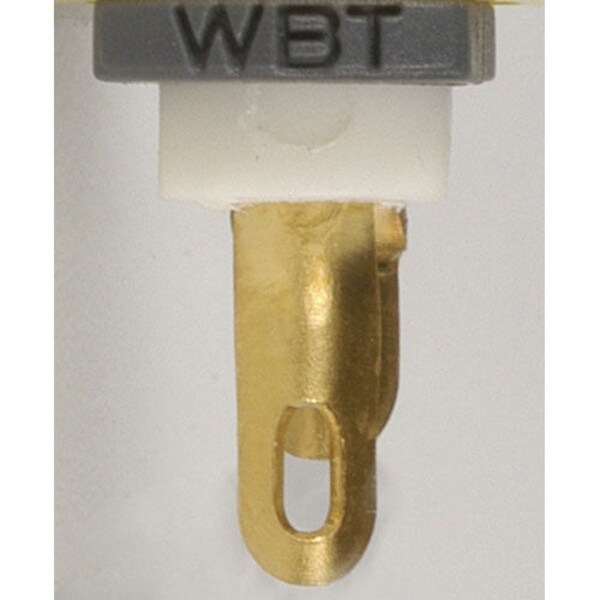

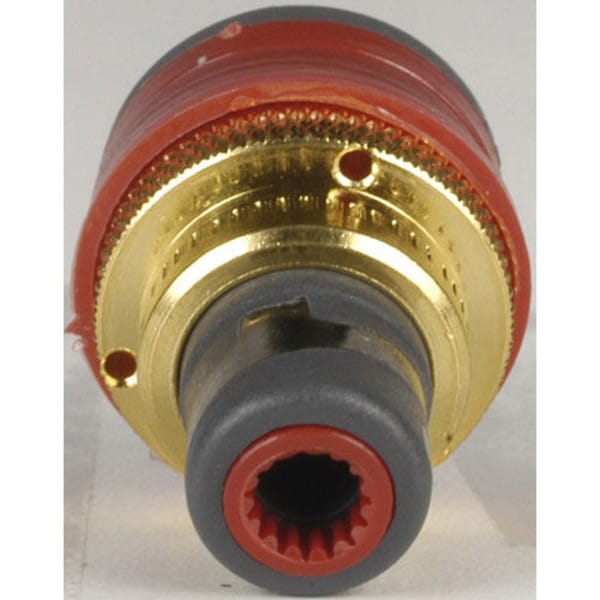

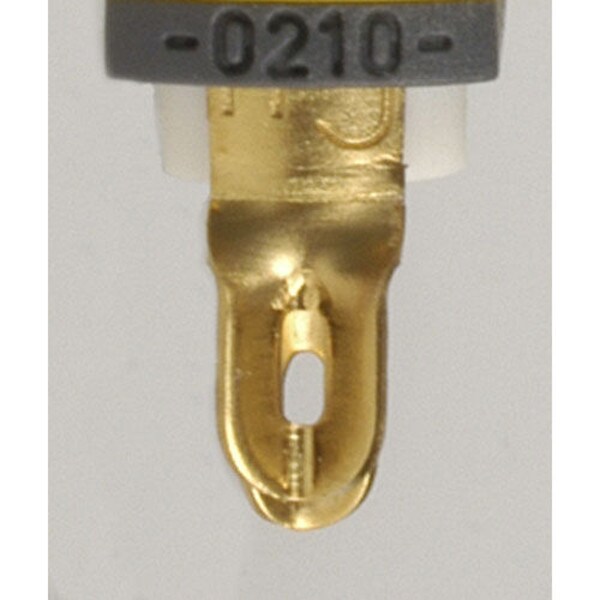

The Nextgen™ (Topline) RCA socket is the latest addition to the WBT line of products. The heart of the Nextgen™ design is the central contact unit built from the plus and minus conductors. The positive pole features a spring loaded double prism contact, while the negative pole utilizes a patented double-wave contact. The conductor material is made of pure copper and plated in nickel free gold to ensure the highest level of conductivity. This connector also features torsion-proof mounting from the outside using a three-hole counter nut. Available colors: Red, White, Black, Green, Blue, Yellow.

Specifications: • Contact plating: gold • Sold per: each • Transmission bandwidth: 1 GHz (eddy current free) • Characteristic impedance: 75 ohms • Insulation: Teflon™ • Termination style: solder • Mounting panel thickness: up to 0.17" • Dimensions: 0.63" x 1.37"



Product Details

BrandWBT
ModelWBT0210CUR
Part Number093-624
UPC726441936240
Unit of MeasureEach
Weight0.1

Product Specifications

GenderFemale / Jack
Mounting TypeChassis / Panel Mount
