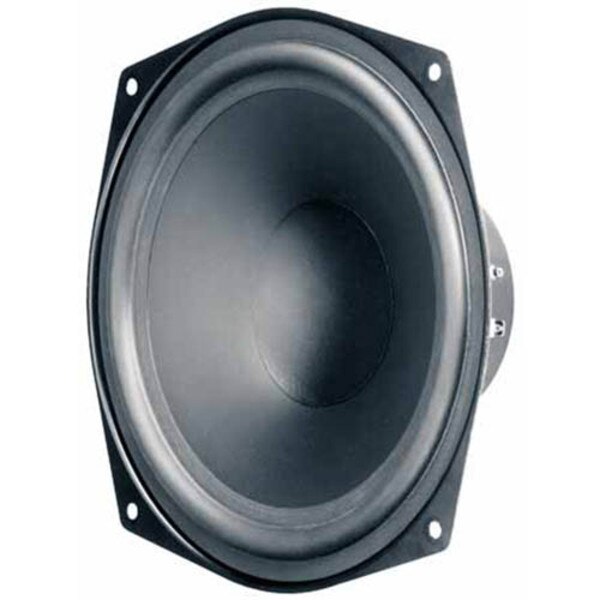

Visaton WS20E-8 8" Poly Cone Woofer 8 Ohm

VisatonPart # 292-684
Model: WS20E-8

The Visaton WS20E-8 8" woofer, is an 8 ohm driver that features a coated-paper cone, elastic rubber surround, and inverse dust-cap. It is a versatile choice for delivering midbass in multi-way speakers or serving as a woofer in larger bookshelf speakers.

Key Features

  • Poly cone woofer with rubber surround
  • Thin pin-coushin frame doesn't require recessing
  • Exceptionally suited for use in sealed cabinets
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Dayton Audio RS225-8 8" Reference Woofer
Price: $94.98Part # 295-356
See all items in Woofers
Your Price: $37.38
MSRP: $40.81
Save $3.43 (8%)
Bulk Pricing
Quantity:Qty: 1-9 $37.38/ea
Quantity:Qty: 10+ $34.39/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton WS20E-8 8" Poly Cone Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton WS20E-8 8" Poly Cone Woofer 8 Ohm

Choose the Visaton WS20E 8" woofer for use in small to medium-sized two and three-way speaker designs, as a midrange or midbass in larger multi-way systems, or even as a subwoofer in certain setups. The rubber surround and treated paper cone resist fatigue and create a warm, natural sound reminiscent of the golden age of audio. A low Fs allows this 8" speaker to deliver all the way down into the 45 Hz region, while its upper response extends out to 7,000 Hz.

Product Details

BrandVisaton
ModelWS20E-8
Part Number292-684
Unit of MeasureEach
Weight2.65

Product Specifications

Nominal Diameter8"
Power Handling (RMS)80 Watts
Power Handling (MAX)120 Watts
Impedance
Frequency Response47 to 7,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.18"

Thiele-Small Parameters

Resonant Frequency (Fs)47Hz

Materials of Construction

Cone MaterialPoly

Mounting Information

Overall Outside Diameter9.29"
Baffle Cutout Diameter7.32"
Depth3.38"
# Mounting Holes4
