Visaton W200-8 8" Woofer 8 Ohm

VisatonPart # 292-584
Model: W200 - 8
The 9065 W200 8" woofer from Visaton is a great replacement woofer for many sealed cabinet speakers.

Key Features

  • Foam surround and ribbed paper cone for a classic sound
  • 2 mm of Xmax with ±10 mm excursion limit for good bass performance
  • Great replacement driver for sealed speaker cabinets
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $35.77
MSRP: $42.99
Save $7.22 (17%)
Bulk Pricing
Quantity:Qty: 1-9 $35.77/ea
Quantity:Qty: 10-24 $34.71/ea
Quantity:Qty: 25+ $33.22/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton W200-8 8" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W200-8 8" Woofer 8 Ohm

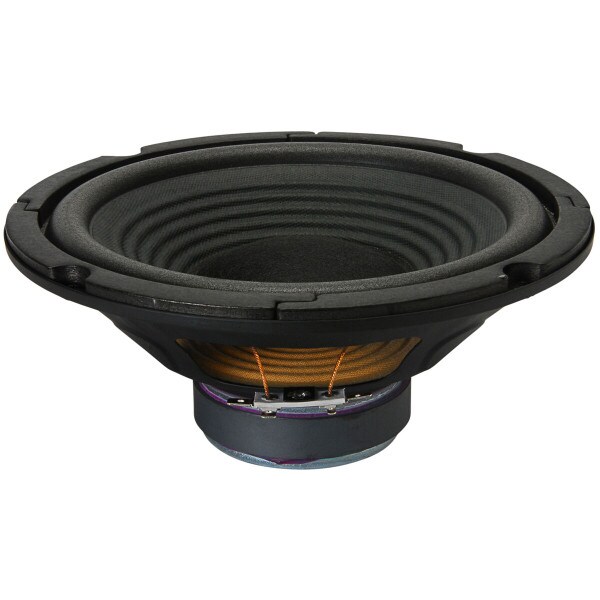

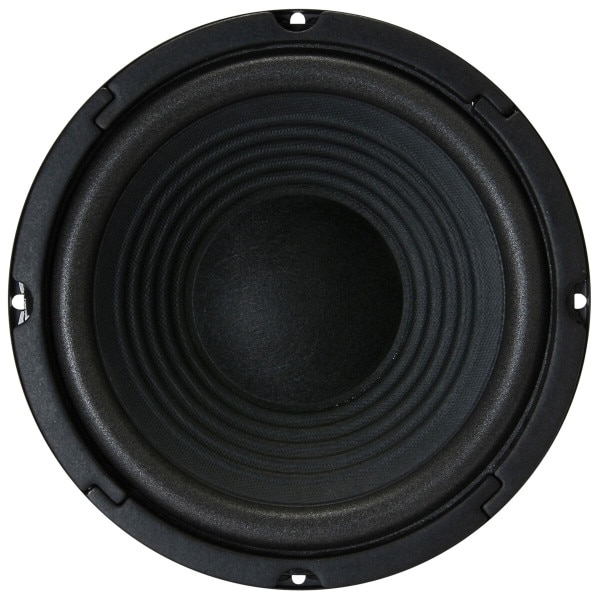

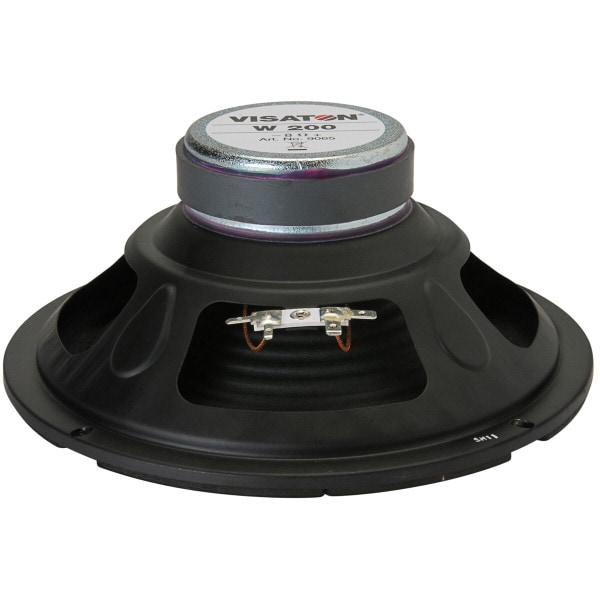

Visaton's 9065 W200 8" woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround and ribbed, treated paper cone offer longevity while capturing that classic sound from the golden era of loudspeakers. A healthy 2 mm of Xmax and ±10 mm excursion limit allows this driver to pump out some serious bass in many different sized sealed, acoustic suspension cabinets. A smooth frequency response makes for easy integration with many different tweeters.

Product Details

BrandVisaton
ModelW200 - 8
Part Number292-584
Unit of MeasureEach
Weight2.4

Product Specifications

Nominal Diameter8"
Power Handling (RMS)50 Watts
Power Handling (MAX)80 Watts
Impedance
Frequency Response46 to 8,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)46Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)2.82
Electromagnetic Q (Qes)0.8
Total Q (Qts)0.62
Compliance Equivalent Volume (Vas)1.8ft³
Maximum Linear Excursion (Xmax)2mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam

Mounting Information

Overall Outside Diameter8.11"
Baffle Cutout Diameter7.24"
Depth3.11"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F366.7Hz
Vented Volume1.25ft³
Vented F350.1Hz
