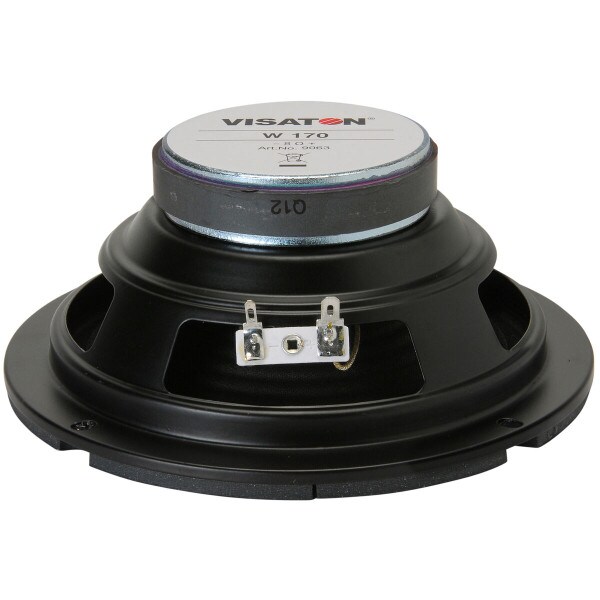

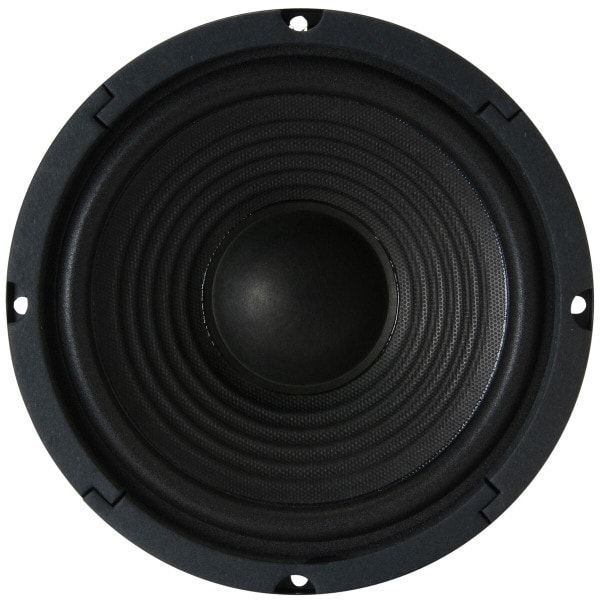

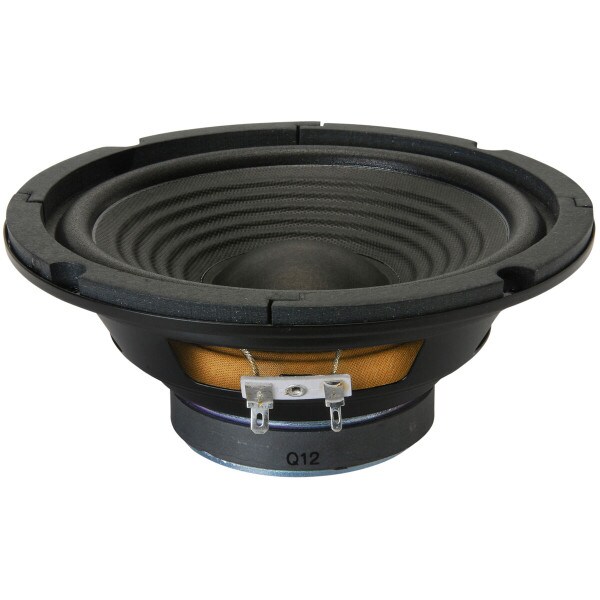

Visaton W170-8 6.5" Woofer 8 Ohm

VisatonPart # 292-582
Model: W170 - 8
The 9063 W170 6-1/2" woofer from Visaton is a great replacement woofer for many sealed cabinet speakers.

Key Features

  • Foam surround and ribbed paper cone for a classic sound
  • 2.0 mm of Xmax and ±7.5 mm excursion limit
  • Great replacement driver for sealed speaker cabinets
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $25.33
MSRP: $29.99
Save $4.66 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $25.33/ea
Quantity:Qty: 10-24 $24.57/ea
Quantity:Qty: 25+ $23.53/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton W170-8 6.5" Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 10 hr 54 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W170-8 6.5" Woofer 8 Ohm

Visaton's 9063 W170 6-1/2" woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround and ribbed, treated paper cone offer longevity while capturing that classic sound from the golden era of loudspeakers. A healthy 2.0 mm of Xmax and ±7.5 mm excursion limit allows this driver to pump out some serious bass in many different sized sealed, acoustic suspension cabinets. A smooth frequency response makes for easy integration with many different tweeters.

Product Details

BrandVisaton
ModelW170 - 8
Part Number292-582
Unit of MeasureEach
Weight1.874

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response57 to 6,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)57Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)2.92
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.69
Compliance Equivalent Volume (Vas)0.85ft³
Maximum Linear Excursion (Xmax)2mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam

Mounting Information

Overall Outside Diameter6.7"
Baffle Cutout Diameter5.63"
Depth2.48"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F372.6Hz
Vented Volume0.8ft³
Vented F354.2Hz
