Visaton SL87WPM-8 3.3" Full-Range Speaker 8 Ohm

VisatonPart # 292-590
Model: SL87WPM - 8
Choose the SL 87 WPM 3.3" full-range speaker from Visaton for outdoor applications where direct moisture and high humidity are a factor.

Key Features

  • Integrated rubber mounting gasket on frame
  • IP65 rated speaker for outdoor use
  • Waterproof cone
  • Designed for vocal reproduction
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $12.03
MSRP: $14.99
Save $2.96 (20%)
Bulk Pricing
Quantity:Qty: 1-9 $12.03/ea
Quantity:Qty: 10-24 $11.67/ea
Quantity:Qty: 25+ $11.18/ea
16 In Stock
Get Notified When Available

We'll send you an email when Visaton SL87WPM-8 3.3" Full-Range Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton SL87WPM-8 3.3" Full-Range Speaker 8 Ohm

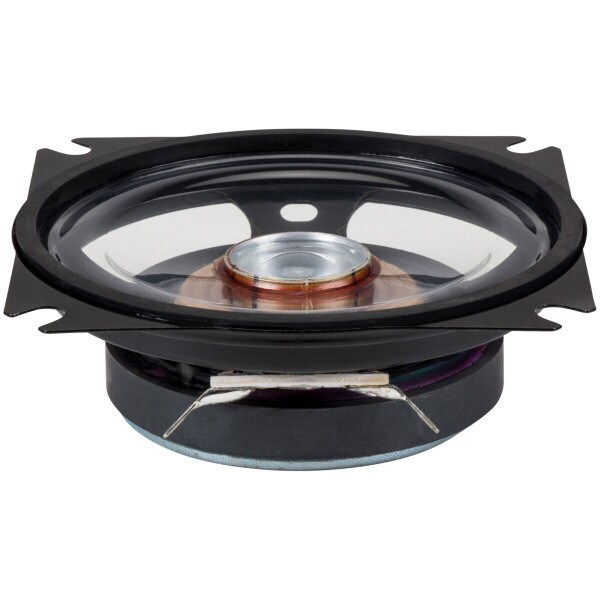

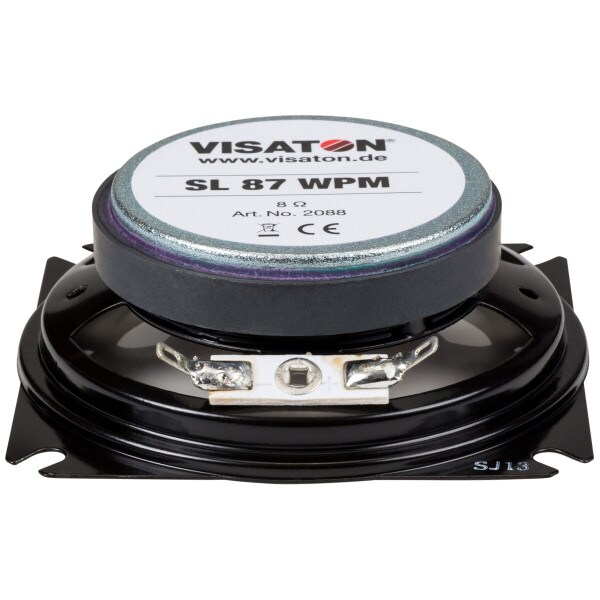

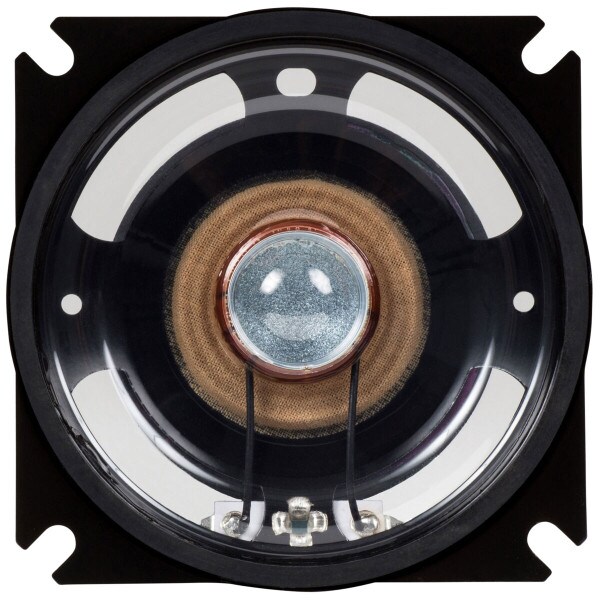

Visaton's SL87WPM 3.3" full-range speaker features a unique weather and UV-resistant design. A waterproof plastic cone is combined with a frame that features a rubber sealing ring. This allows the SL87WPM to achieve an IP65 rating when used in a sealed enclosure, making it perfect for outdoor audio applications where water and high humidity are a factor. The SL87WPM's specialty is vocal reproduction with great output in the 300 to 3,000 Hz range, making this the perfect outdoor PA speaker for announcements.

Product Details

BrandVisaton
ModelSL87WPM - 8
Part Number292-590
Unit of MeasureEach
Weight0.55

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter3.94
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response200 to 5,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)290Hz
Voice Coil Inductance (Le)0.87mH
Maximum Linear Excursion (Xmax)1mm

Materials of Construction

Cone MaterialPoly
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.62" diagonally, across the flats 3.27"
Baffle Cutout Diameter3.37"
Depth1.14"
# Mounting Holes4
