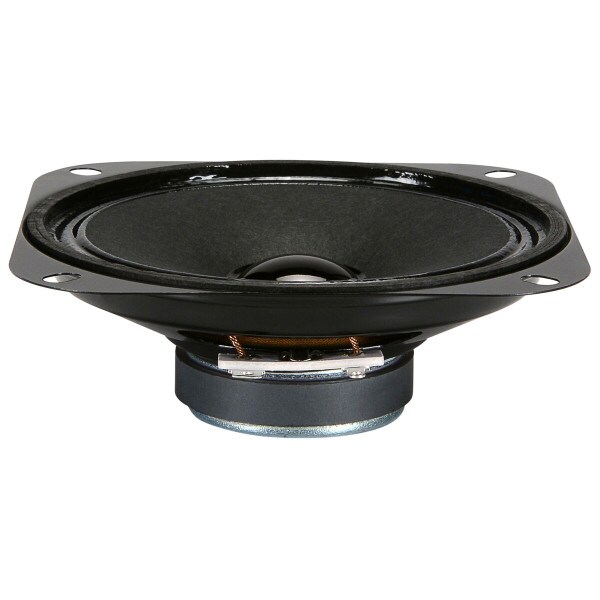

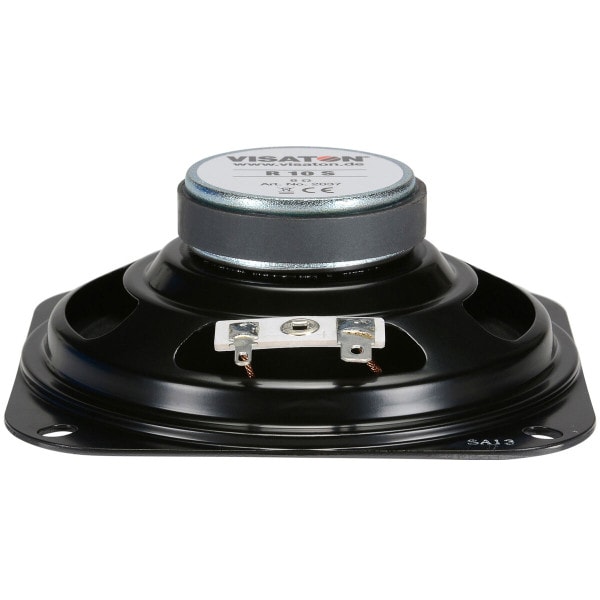

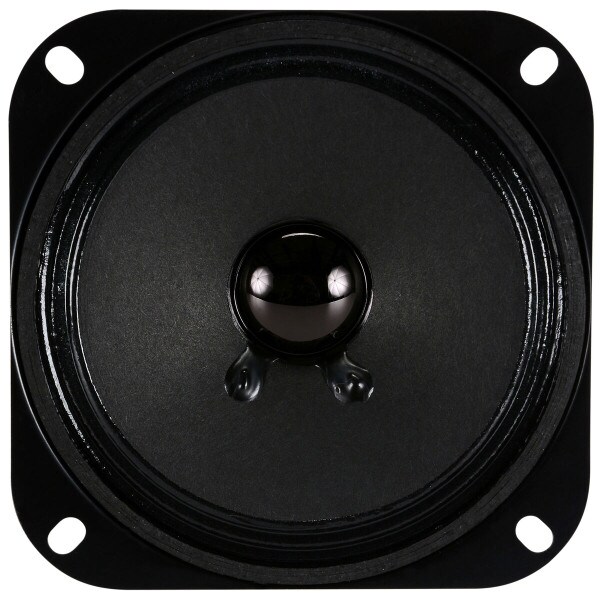

Visaton R10S 4" Full-Range Speaker 8 Ohm

Visaton
Part #292-596

Visaton R10S 4" Full-Range Speaker 8 Ohm

Visaton
Part #292-596
Model: R10S-8

Visaton's 2037 R10S full-range, 8 ohm, 4" speaker offers great frequency response and sensitivity in a compact package. Great for point-source applications with a limited amount of mounting depth space.

Key Features
  • Full-range frequency response from 100 to 13,000 Hz
  • Thin mount profile with a mounting depth under 1-1/2"
  • High 90 dB sensitivity
  • 8 ohm impedance
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $10.25
MSRP: $13.99
Save $3.74 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $10.25/ea
Quantity:Qty: 10-24 $9.94/ea
Quantity:Qty: 25+$9.51/ea
Ships next business day. Details

342In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton R10S 4" Full-Range Speaker 8 Ohm

Designed or electronic devices, and to be used in the ceiling structures of rail cars and buses, Visaton's R10S full-range speaker has very linear response from 150 to 10,000 Hz. The slim design features a depth that is less than 1-1/2" for shallow mounting.

High sensitivity and good power handling combine for more output than many midrange drivers this size, while the paper cone and accordion surround create a more natural, classic sound that is pleasing to most peoples' ears. A square steel mounting plate eliminates the need for a baffle recess, while the mounting slots can accept a wider range of mounting diameters.

Product Details

BrandVisaton
ModelR10S-8
Part Number292-596
UPC4007540020372
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.61
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response100 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.59"

Thiele-Small Parameters

Resonant Frequency (Fs)160Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)6.27
Electromagnetic Q (Qes)2.92
Total Q (Qts)1.99
Compliance Equivalent Volume (Vas)0.6ft³
BL Product (BL)2T·m
Diaphragm Mass Inc. Airload (Mms)2g
Maximum Linear Excursion (Xmax)0.5mm
Surface Area of Cone (Sd)56cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialTreated Paper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside DiameterAcross the flats 4.02"
Baffle Cutout Diameter3.66"
Depth1.42"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3164.4Hz
