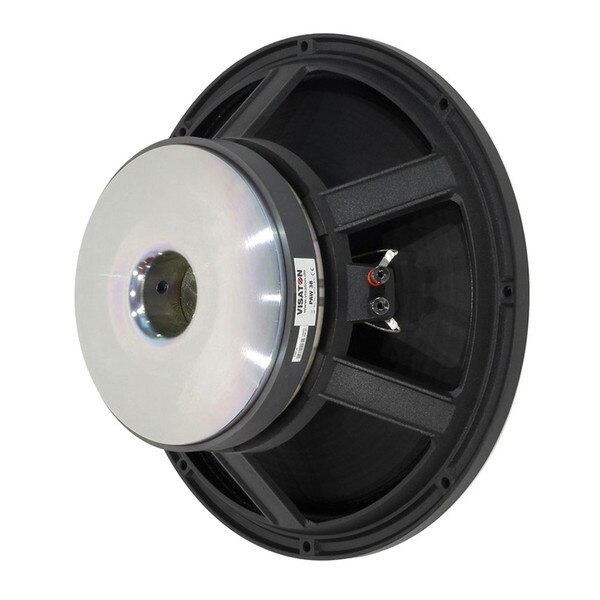

CLEARANCE Visaton PAW38-8 15" Woofer 8 Ohm

VisatonPart # 292-7833
Model: PAW 38

The Visaton PAW38-8 is a 38 cm (15") woofer designed for high-power public address (PA) applications, delivering robust and dynamic bass performance.

Key Features

  • Rated power handling of 700 W (maximum 1000 W) for high-power applications
  • Die-cast basket for enhanced structural rigidity
  • Reinforced paper membrane for natural sound characteristics
  • 100 mm voice coil for high power handling
  • Kapton voice coil former for thermal stability
  • M-shaped surround for high excursion capabilities
  • For a quote on a large qty order, please press "Request Large Qty Quote"
CLEARANCE $312.38
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-9 $312.38/ea
Quantity:Qty: 10+ $305.78/ea
4 In Stock
Get Notified When Available

We'll send you an email when Visaton PAW38-8 15" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PAW38-8 15" Woofer 8 Ohm

The PAW38-8's combination of high power handling, efficient cooling mechanisms, and robust construction makes it an excellent choice for demanding PA systems requiring reliable and high-quality bass sound reproduction.

Technical Data

  • Cm: 0.18 mm/N
  • Rated power: 700 W
  • Maximum power: 1000 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: fu–3700 Hz
    (fu: Lower cut-off frequency depending on cabinet)
  • Mean sound pressure level: 92 dB (2.83 V/1 m)
  • Maximum linear displacement: ±5.5 mm
  • Excursion limit: ±12 mm
  • Resonance frequency fs: 36 Hz
  • Height of front pole-plate: 12 mm
  • Voice coil diameter: 100 mm
  • Height of winding: 23 mm
  • Cutout diameter: 358 mm
  • Net weight: 11.5 kg
  • D.C. resistance Rdc: 7.2 Ohm
  • Mechanical Q factor Qms: 9.0
  • Electrical Q factor Qes: 0.31
  • Total Q factor Qts: 0.29
  • Equivalent volume Vas: 195 l
  • Effective piston area Sd: 898 cm²
  • Dynamically moved mass Mms: 125 g
  • Force factor Bxl: 25 Tm
  • Inductance of the voice coil L: 2.6 mH
  • Connections: Spring terminals

Product Details

BrandVisaton
ModelPAW 38
Part Number292-7833
Unit of MeasureEach
Weight12

Product Specifications

Nominal Diameter15"
Power Handling (RMS)700 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Sensitivity92dB 2.83V/1m
Voice Coil Diameter3.94"

Thiele-Small Parameters

Resonant Frequency (Fs)36Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)2.6mH
Mechanical Q (Qms)9
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)6.89ft³
BL Product (BL)25T·m
Diaphragm Mass Inc. Airload (Mms)125g
Maximum Linear Excursion (Xmax)12mm
Surface Area of Cone (Sd)898cm²

Materials of Construction

Voice Coil FormerKapton® / Polyimide

Mounting Information

# Mounting Holes8
