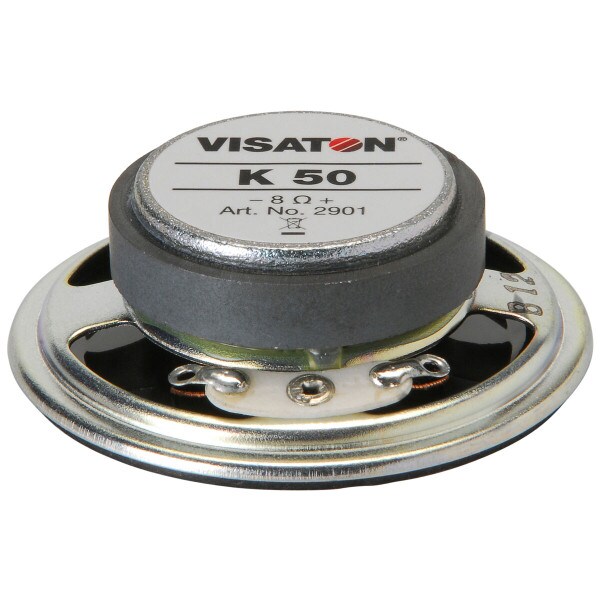

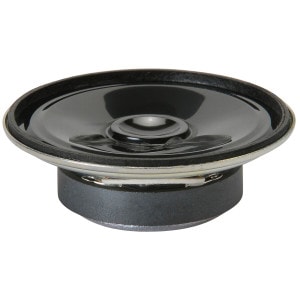

Visaton K50-8 2" Miniature Speaker 8 Ohm

VisatonPart # 292-542
Model: K50 - 8

The miniature 8 ohm Visaton 2901 K50 2" speaker is useful in space-limited audio applications such as in electronic devices.

Key Features

  • Unique one-piece mylar cone with surround
  • Small, compact size
  • Great vocal reproduction
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $3.23
MSRP: $3.99
Save $0.76 (19%)
Bulk Pricing
Quantity:Qty: 1-9 $3.23/ea
Quantity:Qty: 10-24 $3.15/ea
Quantity:Qty: 25+ $3.03/ea
230 In Stock
Get Notified When Available

We'll send you an email when Visaton K50-8 2" Miniature Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton K50-8 2" Miniature Speaker 8 Ohm

Visaton's 2901 K50 miniature 2" speaker is designed using a one-piece mylar diaphragm with surround. This micro-speaker is ideally suited for use in space-limited machines and electronics devices, indoors or outdoors, featuring a frequency response that focuses on vocal reproduction.

Note: For maximum power handling, a 1st-order 400 Hz high-pass filter is recommended.

Product Details

BrandVisaton
ModelK50 - 8
Part Number292-542
Unit of MeasureEach
Weight0.124

Product Specifications

Nominal Diameter2"
Power Handling (RMS)2 Watts
Power Handling (MAX)3 Watts
Impedance8Ω
Frequency Response250 to 10,000Hz
Sensitivity83dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)400Hz
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm

Mounting Information

Overall Outside Diameter1.97"
Baffle Cutout Diameter1.77"
Depth0.58"
