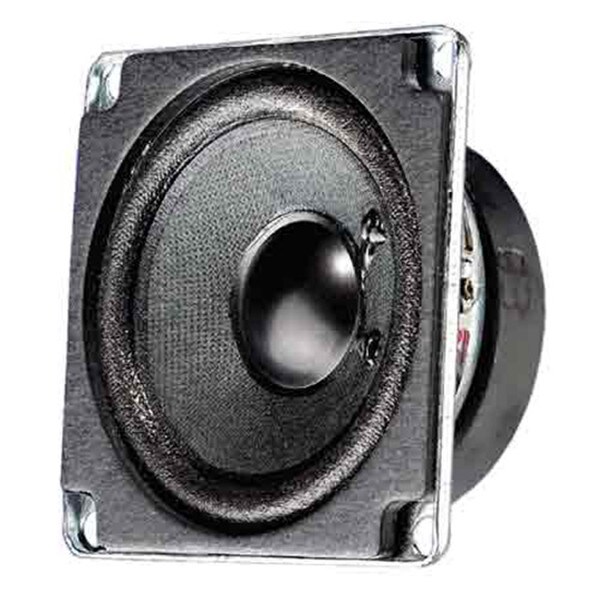

NEW Visaton FRWS5-4 2" Full-Range Speaker 4 Ohm

VisatonPart # 292-7820
Model: FRWS 5

The Visaton FRWS5-4 is a compact 5 cm (2") full-range speaker designed for applications requiring balanced sound reproduction in limited spaces. Its square basket, soft surround, and lightweight cone contribute to a well-balanced frequency response above 250 Hz, delivering brilliant highs and good omnidirectional sound distribution. This makes it suitable for use as a midrange driver in column speaker systems for HiFi applications, as well as for 100 V sound reinforcement systems. Additionally, its small size makes it ideal for model construction and as a control speaker for electronic devices.

Key Features

  • Moisture-resistant membrane for durability in various environmental conditions
  • Frequency response from 150 Hz to 20,000 Hz for clear and balanced sound reproduction
  • Resonance frequency at 250 Hz for effective low-frequency reproduction
  • Rated power handling of 4 W (maximum 10 W) for reliable audio performance
  • Operating temperature range from −25 to 70 °C for consistent performance in various climates
  • For a quote on a large qty order, please press "Request Large Qty Quote"
NEW $14.15
Bulk Pricing
Quantity:Qty: 1-9 $14.15/ea
Quantity:Qty: 10+ $11.54/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton FRWS5-4 2" Full-Range Speaker 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRWS5-4 2" Full-Range Speaker 4 Ohm

The FRWS5-4's compact dimensions and balanced frequency response make it an excellent choice for applications where space is limited but high-quality sound is essential. Its moisture-resistant membrane and metal design ensure durability, making it suitable for both indoor and outdoor use. Whether integrated into very narrow network column speakers, used as a monitoring speaker for electronic devices, or employed in model construction, this speaker delivers reliable and efficient audio performance.

Technical Data

  • Rated power: 2 W
  • Maximum power: 10 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 150–20000 Hz
  • Mean sound pressure level: 84 dB (1 W/1 m)
  • Opening angle (-6 dB): 180°/4000 Hz
  • Excursion limit: ±2 mm
  • Resonance frequency fs: 250 Hz
  • Magnetic induction: 0.75 T
  • Magnetic flux: 65 µWb
  • Height of front pole-plate: 2 mm
  • Voice coil diameter: 14 mm
  • Height of winding: 2.7 mm
  • Cutout diameter: 45 mm
  • Net weight: 0.1 kg
  • D.C. resistance Rdc: 6.8 Ohm
  • Mechanical Q factor Qms: 3.31
  • Electrical Q factor Qes: 3.22
  • Total Q factor Qts: 1.63
  • Equivalent volume Vas: 0.1 l
  • Effective piston area Sd: 12 cm²
  • Dynamically moved mass Mms: 0.5 g
  • Force factor Bxl: 1.4 Tm
  • Inductance of the voice coil L: 0.1 mH
  • Connections: Solder lugs
  • Temperature range: –25 - 70 °C

Product Details

BrandVisaton
ModelFRWS 5
Part Number292-7820
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter2"
Power Handling (RMS)2 Watts
Power Handling (MAX)10 Watts
Impedance
Frequency Response150-20000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)250Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.08mH
Mechanical Q (Qms)2.48
Electromagnetic Q (Qes)2.5
Total Q (Qts)1.24
Compliance Equivalent Volume (Vas)0.007ft³
BL Product (BL)1.1T·m
Diaphragm Mass Inc. Airload (Mms)0.5g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)12cm²

Mounting Information

# Mounting Holes4
