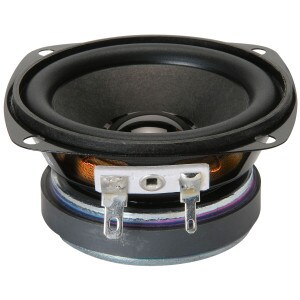

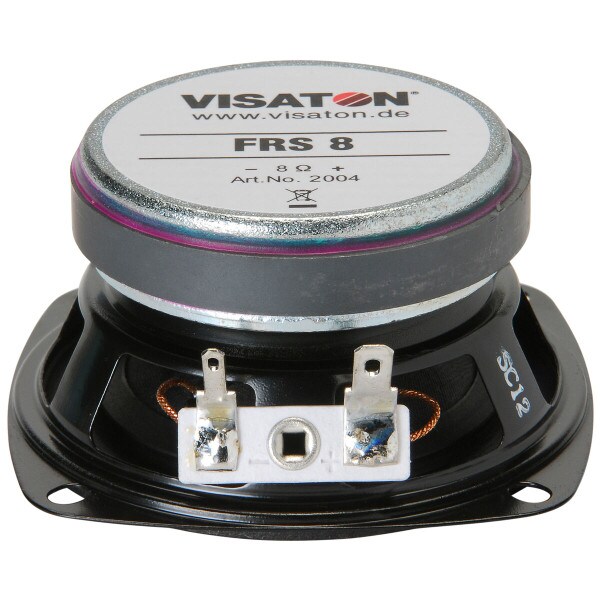

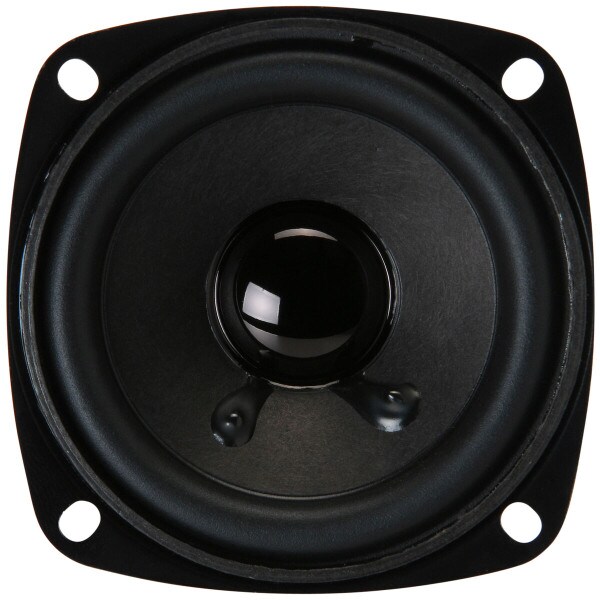

Visaton FRS8-8 3.3" Full-Range Speaker 8 Ohm

VisatonPart # 292-524
Model: FRS8 - 8

Choose the 2004 FRS8 3.3" full-range speaker from Visaton for sound applications where space is critical and high fidelity, full-range sound is needed. 8 ohm impedance.

Key Features

  • 8-ohm impedance for most audio applications
  • Rugged, compact design with rubber surround and steel frame
  • Smooth, linear frequency response from 200 to 20 kHz
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $17.49
MSRP: $20.99
Save $3.50 (17%)
Bulk Pricing
Quantity:Qty: 1-9 $17.49/ea
Quantity:Qty: 10-24 $17.01/ea
Quantity:Qty: 25+ $16.34/ea
9 In Stock
Get Notified When Available

We'll send you an email when Visaton FRS8-8 3.3" Full-Range Speaker 8 Ohm is back in stock or available for preorder.

Order in the next 2 hr 16 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS8-8 3.3" Full-Range Speaker 8 Ohm

Visaton's 2004 FRS8 8 ohm, 3.3" paper cone HiFi full-range driver features smooth frequency response from 200 to 20,000 Hz, making it an ideal speaker for use in surround sound satellite speakers, multimedia speakers, exhibit display speakers, even ceiling speakers!

A rugged stamped-steel frame ensures durability, as does the rubber surround. With up to 50 watts of peak power handling and wide dispersion, the 2003 FRS8 might be one of the best values in the speaker industry.

Product Details

BrandVisaton
ModelFRS8 - 8
Part Number292-524
Unit of MeasureEach
Weight0.653

Product Specifications

Nominal Diameter3"
Power Handling (RMS)30 Watts
Power Handling (MAX)50 Watts
Impedance
Frequency Response100 to 20,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)4.85
Electromagnetic Q (Qes)1.32
Total Q (Qts)1.04
Compliance Equivalent Volume (Vas)0.03ft³
Maximum Linear Excursion (Xmax)0.25mm

Materials of Construction

Cone MaterialPaper

Mounting Information

Overall Outside Diameter3.07"
Baffle Cutout Diameter2.8"
Depth1.37"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.08ft³
Sealed F3109.4Hz
Vented Volume0.08ft³
Vented F383.8Hz
