  • Visaton FRS5-8 2" Full-Range Speaker 8 Ohm

Visaton FRS5-8 2" Full-Range Speaker 8 Ohm

VisatonPart # 292-536
Model: FRS 5-8
Designed to fit the bill for a wide range of audio applications, Visaton's 2231 FRS5 2" full-range driver features a minimalist frame and a slim design.

Key Features

  • Two-lug steel frame design
  • Paper cone with foam surround
  • 2" full-range speaker with linear response from 200 Hz to 20 kHz
  • Useful for background music and constant voltage PA systems
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $12.76
MSRP: $15.99
Save $3.23 (20%)
Bulk Pricing
Quantity:Qty: 1-9 $12.76/ea
Quantity:Qty: 10-24 $12.38/ea
Quantity:Qty: 25+ $11.85/ea
43 In Stock
Get Notified When Available

We'll send you an email when Visaton FRS5-8 2" Full-Range Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS5-8 2" Full-Range Speaker 8 Ohm

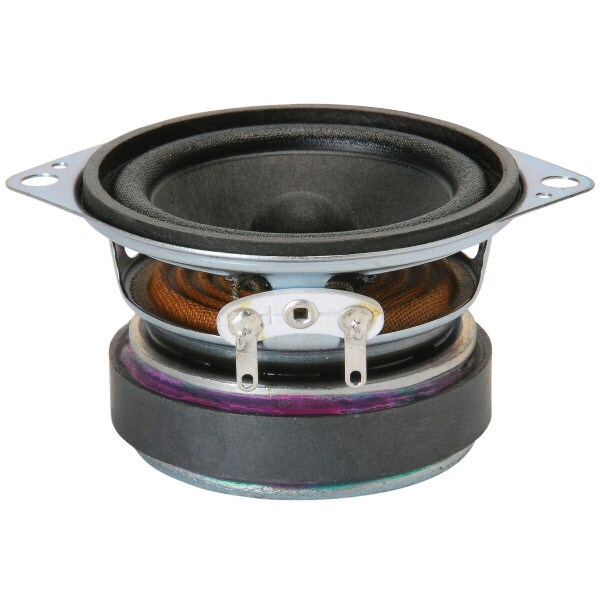

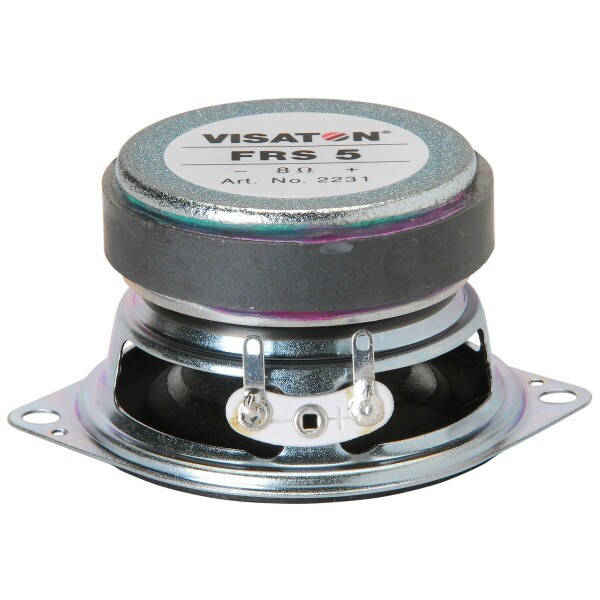

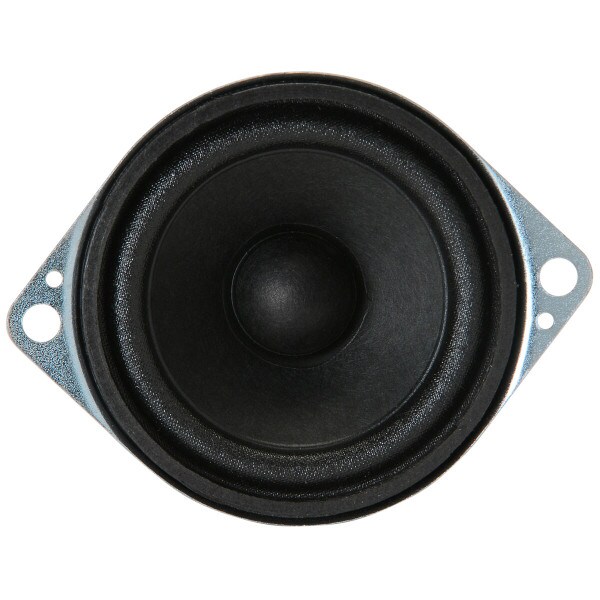

Visaton's 2231 FRS5 2" full-range HiFi driver features a minimalized two-lug frame and is suitable as a midrange driver in three-way speakers, wide-band use in background and constant-voltage industrial PA speaker systems (transformer not included). The slim design is also great for use in electronic musical instruments. A steel frame, foam surround, and paper cone are used to maximize both durability and value, making the FRS5 a great bang-for-the-buck speaker.

Product Details

BrandVisaton
ModelFRS 5-8
Part Number292-536
Unit of MeasureEach
Weight0.295

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter2.36
Power Handling (RMS)5 Watts
Power Handling (MAX)8 Watts
Impedance
Frequency Response150 to 20,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)270Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)3.19
Electromagnetic Q (Qes)1.81
Total Q (Qts)1.15
Compliance Equivalent Volume (Vas)0.00565ft³
BL Product (BL)1.6T·m
Maximum Linear Excursion (Xmax)0.6mm
Surface Area of Cone (Sd)12cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter2", across tabs: 2.68"
Baffle Cutout Diameter1.81"
Depth1.24"
# Mounting Holes2

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3250Hz
