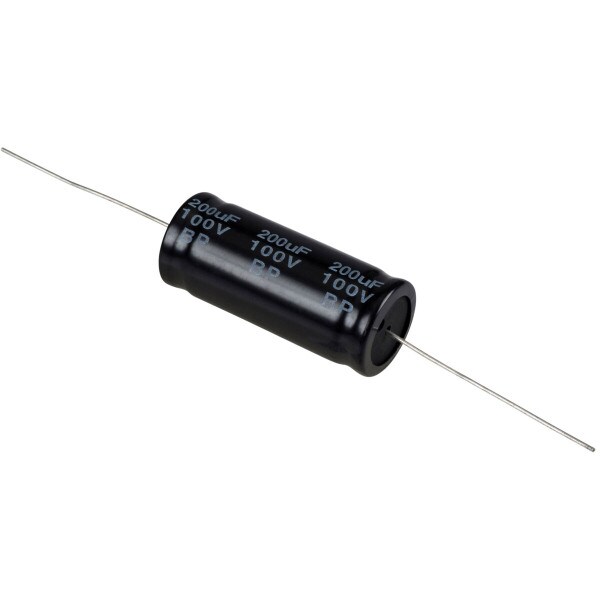

200uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts ExpressPart # 027-366
These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.

Key Features

  • 200 microfarad value
  • 18 mm diameter x 44 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance
Similar items that may interest you:
Solen 200uF 400V Polypropylene Capacitor
Price: $76.95Part # 027-630
See all items in Non-Polarized Electrolytic Capacitors
Your Price: $4.69
MSRP: $6.99
Save $2.30 (33%)
Bulk Pricing
Quantity:Qty: 1-4 $4.69/ea
Quantity:Qty: 5+ $4.26/ea
264 In Stock
Get Notified When Available

We'll send you an email when 200uF 100V Electrolytic Non-Polarized Crossover Capacitor is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

200uF 100V Electrolytic Non-Polarized Crossover Capacitor

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications:
• Value: 200.0 µF
• Rated: 100 VDC
• Tolerance: ±10%
• Dissipation Factor: Max 0.5 (5%) @ 1 KHz
• Dimensions: 18 mm Dia. x 44 mm L.

Product Details

BrandParts Express
Part Number027-366
UPC844632018305
Unit of MeasureEach
Weight0.002

Product Specifications

Capacitance200 uF
Termination StyleAxial
Tolerance10%
Voltage Rating100V
