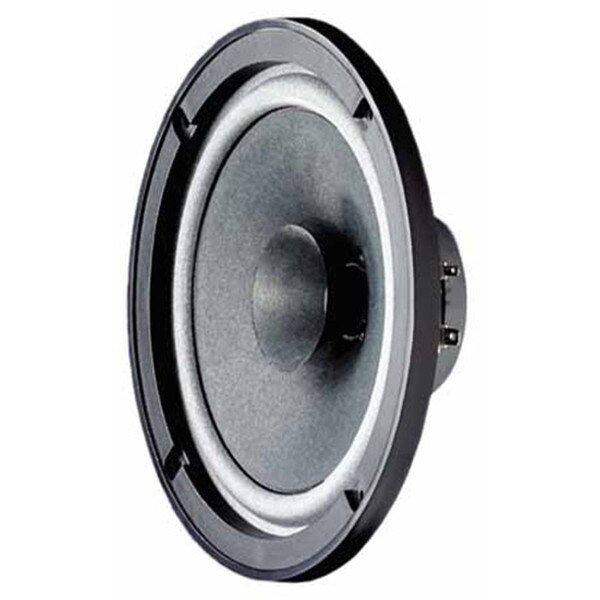

NEW Visaton FR6.5-8 6.5" Full-Range Driver with Tweeter Cone 8 Ohm

Visaton
Part #292-7845

NEW Visaton FR6.5-8 6.5" Full-Range Driver with Tweeter Cone 8 Ohm

Visaton
Part #292-7845
Model: FR 6,5"

The Visaton FR6.5-8 is a 16 cm (6.5") full-range driver featuring a tweeter cone, making it well-suited for sound reinforcement systems. Its water-resistant cone, achieved through impregnation, ensures durability in various environments. The removable decorative ring allows for flexible aesthetic integration.

Key Features
  • Rated power handling of 40 W (maximum 60 W) suitable for various audio applications
  • Resonance frequency at 75 Hz enhancing low-frequency performance
  • Mean sound pressure level of 87 dB (1 W/1 m) ensuring efficient audio output
  • Frequency response from 70 Hz to 20,000 Hz for comprehensive sound coverage
  • Water-resistant cone due to impregnation for durability in moist environments
  • Removable decorative ring for customizable appearance
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
NEW $21.65
Bulk Pricing
Quantity:Qty: 1-9 $21.65/ea
Quantity:Qty: 10+$20.57/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Visaton FR6.5-8 6.5" Full-Range Driver with Tweeter Cone 8 Ohm

The FR6.5-8's combination of wide frequency response, high efficiency, and water-resistant construction makes it an excellent choice for ceiling-mounted speakers, public address applications, and electronic musical instruments.

Technical Data

  • Rated power: 40 W
  • Maximum power: 60 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 70–20000 Hz
  • Mean sound pressure level: 87 dB (1 W/1 m)
  • Opening angle (-6 dB): 41°/4000 Hz
  • Excursion limit: ±3 mm
  • Resonance frequency fs: 75 Hz
  • Magnetic induction: 0.75 T
  • Magnetic flux: 190 µWb
  • Height of front pole-plate: 4 mm
  • Voice coil diameter: 20 mm
  • Height of winding: 4 mm
  • Cutout diameter: 143 mm
  • Net weight: 0.47 kg
  • D.C. resistance Rdc: 6.8 Ohm
  • Mechanical Q factor Qms: 4.94
  • Electrical Q factor Qes: 3.26
  • Total Q factor Qts: 1.96
  • Equivalent volume Vas: 16 l
  • Effective piston area Sd: 129 cm²
  • Dynamically moved mass Mms: 5.9 g
  • Force factor Bxl: 2.5 T m
  • Inductance of the voice coil L: 0.8 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Temperature range: –25 - 70 °C

Product Details

BrandVisaton
ModelFR 6,5"
Part Number292-7845
Unit of MeasureEach
Weight1.196

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)60 Watts
Impedance
Frequency Response70 to 20000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)75Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)4.94
Electromagnetic Q (Qes)3.26
Total Q (Qts)1.96
Compliance Equivalent Volume (Vas)0.57ft³
BL Product (BL)2.5T·m
Diaphragm Mass Inc. Airload (Mms)5.9g
Maximum Linear Excursion (Xmax)3mm

Mounting Information

# Mounting Holes4
