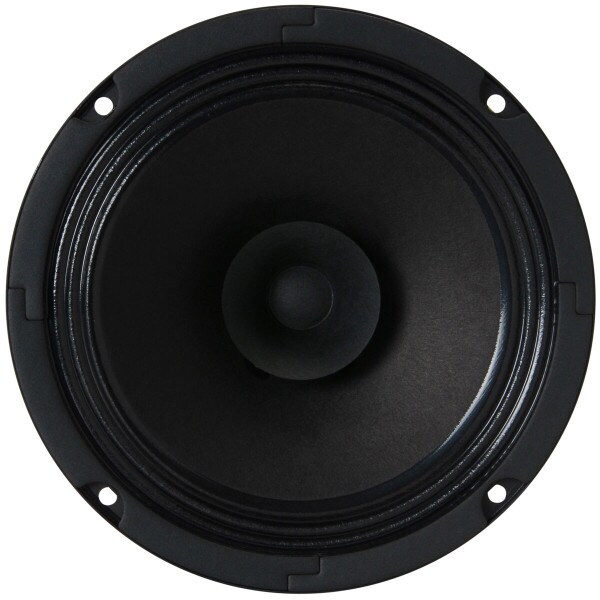

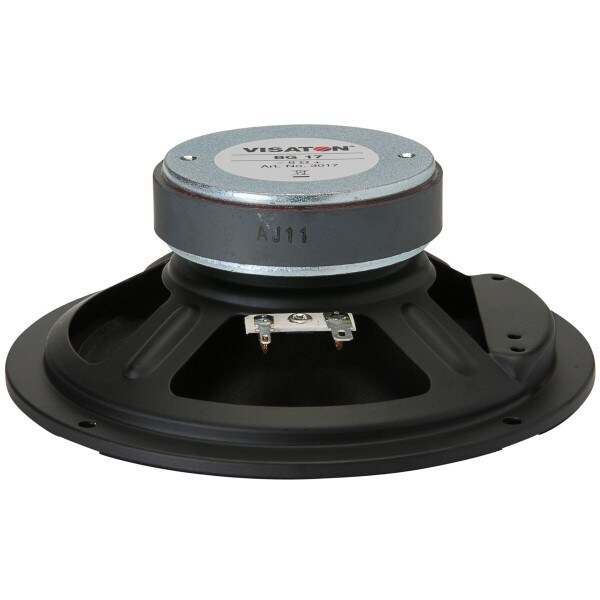

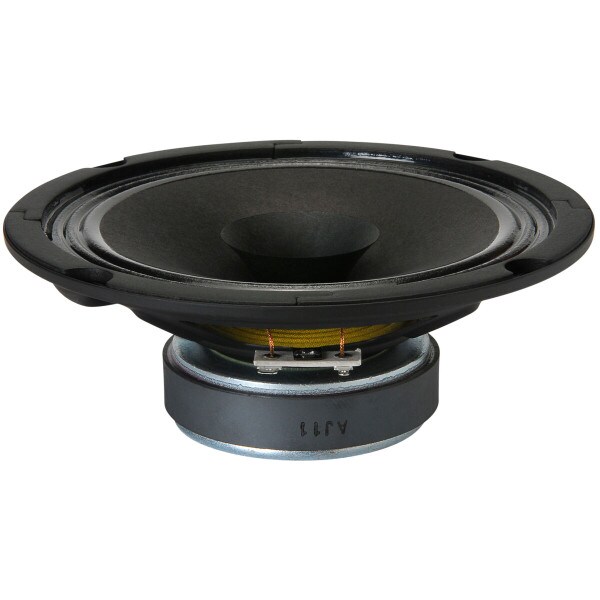

Visaton BG17-8 6.5" Full-Range Speaker with Whizzer Cone 8 Ohm

VisatonPart # 292-546
Model: BG17 - 8
Visaton's 3017 BG17 full-range 6.5" dual-cone speaker offers great frequency response and sensitivity in a compact package. Great for point-source, single-driver speakers.

Key Features

  • High sensitivity design
  • Treated paper accordion surround
  • Whizzer cone for time-aligned highs
  • Great for distributed audio and open baffle speakers
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $25.89
MSRP: $30.99
Save $5.10 (16%)
Bulk Pricing
Quantity:Qty: 1-9 $25.89/ea
Quantity:Qty: 10-24 $25.12/ea
Quantity:Qty: 25+ $24.05/ea
69 In Stock
Get Notified When Available

We'll send you an email when Visaton BG17-8 6.5" Full-Range Speaker with Whizzer Cone 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton BG17-8 6.5" Full-Range Speaker with Whizzer Cone 8 Ohm

The 3017 BG17 full-range speaker from Visaton is designed with a relatively flat frequency response and high output, using a paper cone with whizzer cone and treated paper accordion surround. Typical applications for the BG17 include: small stage monitor, 70V and 100V distributed audio systems (with provisions for transformer mounting built-in), full-range open baffle speakers, or as an instrument speaker for guitars, keyboards, and organs.

Product Details

BrandVisaton
ModelBG17 - 8
Part Number292-546
Unit of MeasureEach
Weight1.7

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response80 to 20,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.7mH
Mechanical Q (Qms)2.94
Electromagnetic Q (Qes)0.98
Total Q (Qts)0.74
Compliance Equivalent Volume (Vas)0.29ft³
Maximum Linear Excursion (Xmax)1.5mm

Materials of Construction

Cone MaterialPaper
Surround MaterialTreated Paper

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.75"
Depth2.24"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3133.7Hz
Vented Volume0.63ft³
Vented F393.22Hz
