NEW Visaton FR4x6X4 4" x 6" Full-Range Driver 4 Ohm

VisatonPart # 292-7822
Model: FR 4x6 X

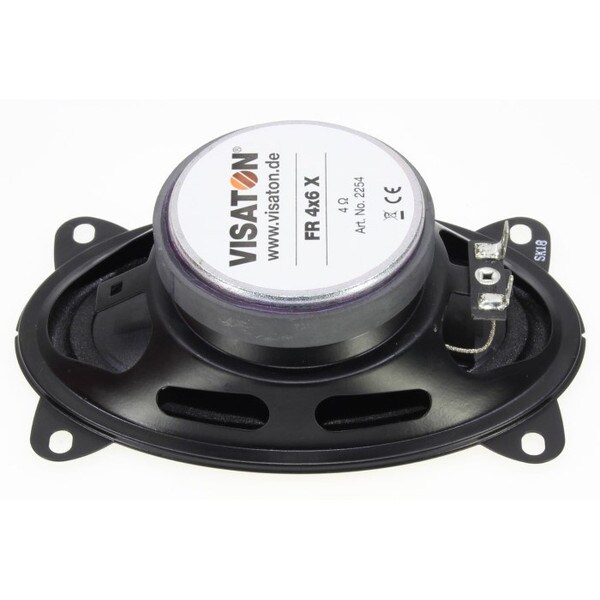

The Visaton FR4x6X4 is a 9 x 15 cm (4" x 6") full-range driver with a tweeter cone, designed to deliver balanced sound reproduction across a wide frequency range. With its compact size and robust construction, it is ideal for applications requiring high-quality speech and music playback in limited spaces. This driver is well-suited for installation in vehicles, mobile homes, and column speaker systems.

Key Features

  • Wide frequency response from 75 Hz to 20,000 Hz for clear and detailed sound
  • Resonance frequency at 110 Hz for enhanced bass performance
  • Rated power handling of 15 W for reliable and consistent operation
  • Suitable for both speech and music reproduction in various applications
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
Visaton SC 4.7 ND Full-Range Driver 8 Ohm
Price: $9.12Part # 292-592
See all items in Dash, Door & Deck Car Speakers
NEW $23.07
Bulk Pricing
Quantity:Qty: 1-9 $23.07/ea
Quantity:Qty: 10+ $20.76/ea
In Stock
Get Notified When Available

We'll send you an email when Visaton FR4x6X4 4" x 6" Full-Range Driver 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR4x6X4 4" x 6" Full-Range Driver 4 Ohm

The FR4x6X4 offers a unique combination of efficiency and versatility, delivering high-quality audio performance in compact designs. Its tweeter cone extends the frequency response for improved clarity, making it suitable for both professional and recreational audio systems. Whether used in vehicles or custom-built enclosures, this driver ensures excellent sound output with a wide range of applications.

Technical Data

  • Rated power: 2 W
  • Maximum power: 10 W
  • Nominal impedance Z: 8 Ohm
  • Frequency response: 150–20000 Hz
  • Mean sound pressure level: 84 dB (1 W/1 m)
  • Resonance frequency fs: 110 H
  • Height of front pole-plate: 3.5 mm
  • Voice coil diameter: 25 mm
  • Cutout diameter: 142 x 90 mm
  • Net weight: 0.456 kg
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)

Product Details

BrandVisaton
ModelFR 4x6 X
Part Number292-7822
Unit of MeasureEach
Weight1

Product Specifications

Nominal Diameter4 x 6"
Speaker Size4"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response75 to 20000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz

Mounting Information

# Mounting Holes4
