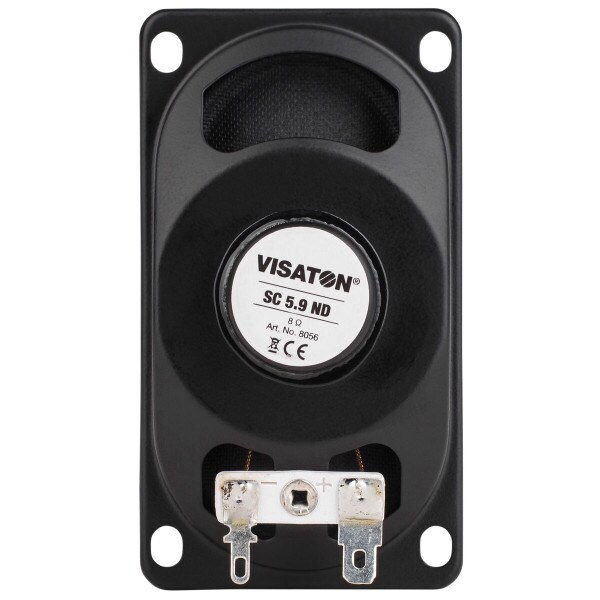

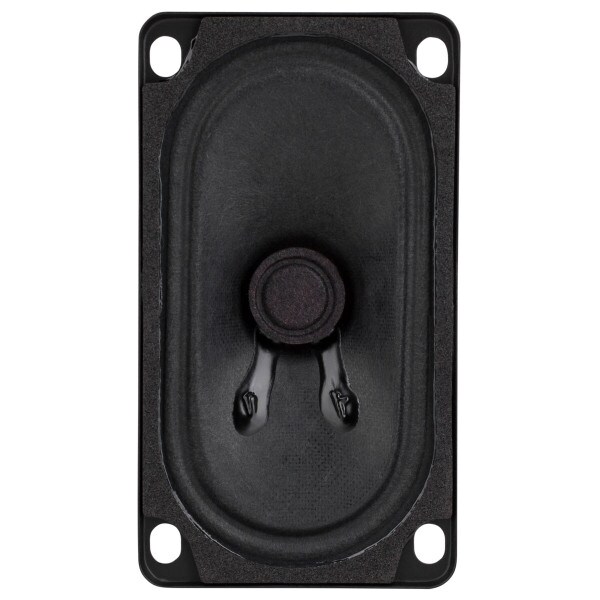

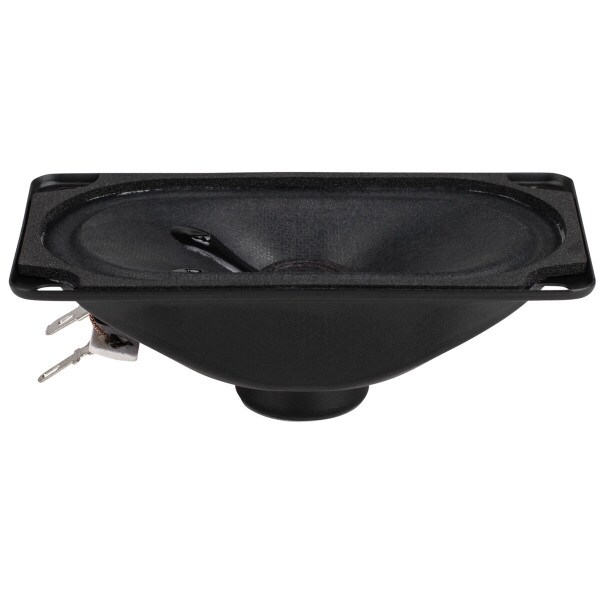

Visaton SC 5.9 2" x 3.5" Shielded Full-Range Driver 8 Ohm

VisatonPart # 292-553
Model: SC 5.9 ND
Visaton's SC 5.9 ND 8 ohm driver is an economical full-range driver that features a narrow oval shape, neodymium motor, water resistant paper cone, front gasket, and steel frame.

Key Features

  • Water resistant paper cone with foam surround for linear frequency response
  • Neodymium motor assembly minimizes weight
  • Rugged stamped steel frame with front mounted gasket
  • Common size used in many flat screen televisions
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $11.00
MSRP: $12.99
Save $1.99 (15%)
Bulk Pricing
Quantity:Qty: 1-9 $11.00/ea
Quantity:Qty: 10-24 $10.67/ea
Quantity:Qty: 25+ $10.22/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Visaton SC 5.9 2" x 3.5" Shielded Full-Range Driver 8 Ohm is back in stock or available for preorder.

Estimated back in stock 7/18/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Specifications

Product Details

BrandVisaton
ModelSC 5.9 ND
Part Number292-553
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter2 x 3"
Power Handling (RMS)3 Watts
Power Handling (MAX)4 Watts
Impedance
Frequency Response150 to 17,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)280Hz
DC Resistance (Re)7.7Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)6.98
Electromagnetic Q (Qes)10.02
Total Q (Qts)4.1
Compliance Equivalent Volume (Vas)0.014ft³
BL Product (BL)1.2T·m
Diaphragm Mass Inc. Airload (Mms)1.2g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)26.5cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside DiameterHeight: 1.75" x Width: 3.17"
Baffle Cutout DiameterHeight: 1.69" x width: 3.25"
Depth1.18"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.028ft³
Sealed F3225.8Hz
