U.S. Acoustics Andrea 300 Watt 2 Channel Amplifier

U.S. Acoustics
Part #268-9002

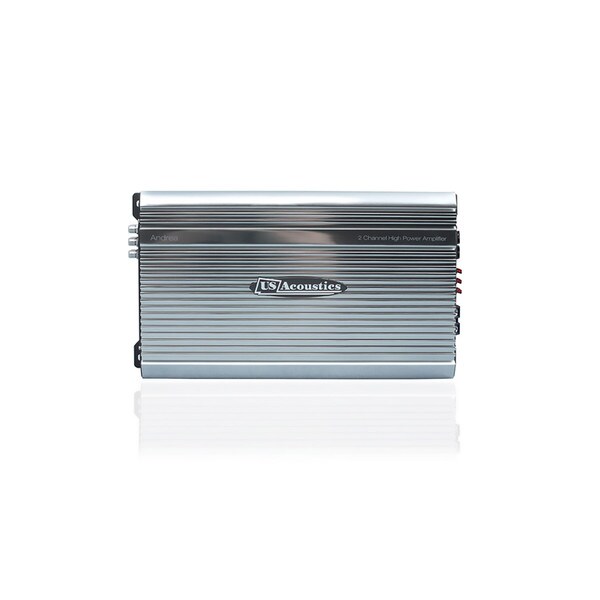

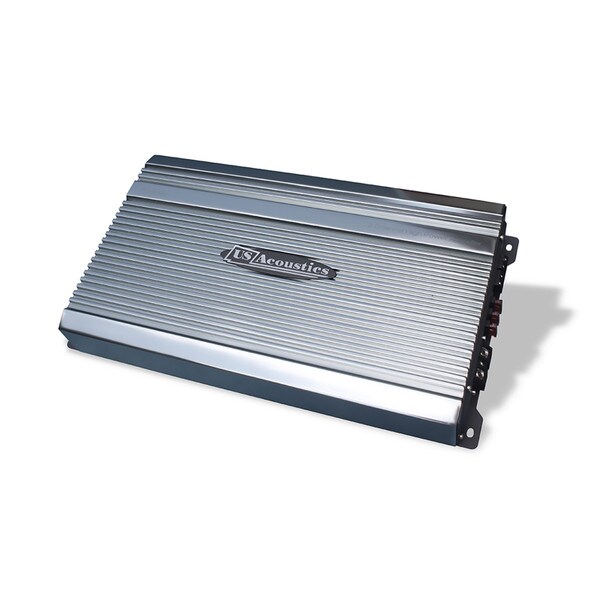

U.S. Acoustics Andrea 300 Watt 2 Channel Amplifier

U.S. Acoustics
Part #268-9002
Model: Andrea

The US Acoustics Andrea is a powerful 2-channel amplifier designed for car audio enthusiasts who demand high-fidelity performance. Its classic Class AB design ensures audiophile-grade sound quality, while its sleek and durable build makes it a versatile choice for custom installations that demand a small amplifier footprint.

Key Features
  • Full complementary low-distortion Class AB design for high-fidelity performance

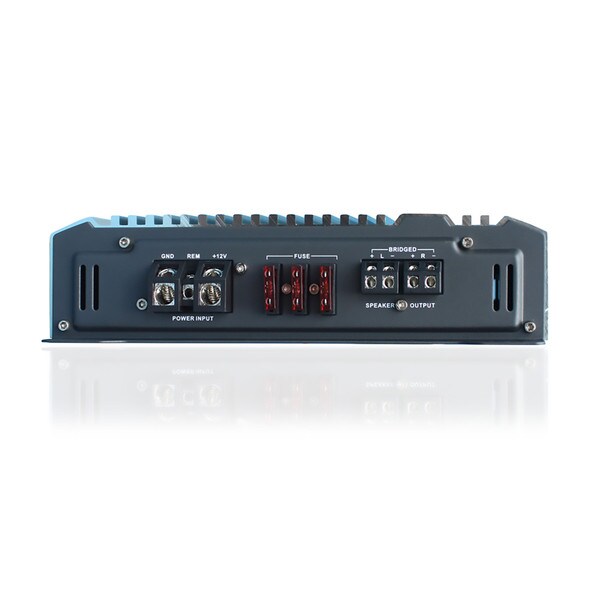

  • Angled terminals for clean and professional installations

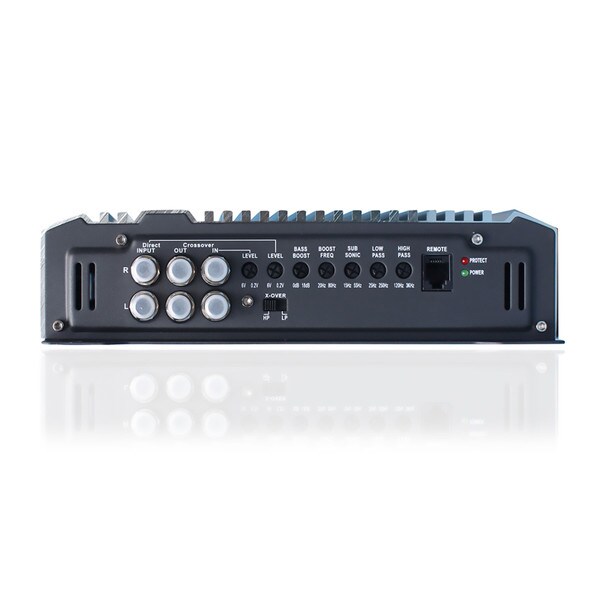

  • Butterworth crossover filters for precise frequency control
  • Comprehensive protection circuitry for thermal, overload, short circuit, and DC protection
  • Diagnostic LED indicators for real-time status updates
  • Compact design for easy installation
Your Price: $289.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 2 hr 19 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

U.S. Acoustics Andrea 300 Watt 2 Channel Amplifier

Andrea

Compact and versatile

The Andrea amplifier brings classic engineering into the modern era with its full complementary Class AB design. This approach minimizes distortion while preserving the warmth and accuracy of your audio, making it ideal for both music enthusiasts and audiophiles.

Designed for ease of use and reliability, the Andrea features angled terminals that allow for neat, show-quality installations. Its Butterworth crossover filters provide precise frequency management, enabling users to fine-tune their sound system for optimal performance. The compact form factor makes it a seamless addition to a variety of car audio setups.

Safety and durability are at the core of the Andrea amplifier. Equipped with multiple protection circuits, including safeguards against thermal overload and short circuits, this amplifier ensures consistent performance under all conditions. LED diagnostic indicators keep you informed of the amplifier's status, giving peace of mind. The US Acoustics Andrea is the perfect combination of power, precision, and reliability for your car audio needs.

Specifications

  • RMS per channel at 4 Ohms: 150 W x 2 CH
  • RMS per channel at 2 Ohms: 250 W x 2 CH
  • RMS Bridged Mono at 4 Ohms: 500 W x 1 CH
  • RMS Mono at 1 Ohm: N/A
  • Input Sensitivity: 200mV - 6.0V
  • Frequency Response: 10Hz - 30KHz +/- 0.5dB
  • Total Harmonic Distortion (THD): >0.01%
  • Signal-to-Noise Ratio (SNR): > 103 dB
  • Channel Separation: > 91 dB

  • Damping Factor @100Hz 4 ohm: > 200
  • Crossover Range:
  • High Pass, 12dB/Octave: 80-1.2K Hz
  • Low Pass, 24dB/Octave: 10Hz - 250Hz
  • Subsonic: N/A
  • Variable Bass Boost: (0 to +12 dB bass boost at 45 Hz): Yes
  • Wired remote bass control included: No
  • Phase Shift (0 - 180 degrees): No
  • Fusing: 2 x 35A
  • Size (L x W x H): 16.4" x 8.9" x 2.2"

Product Details

BrandU.S. Acoustics
ModelAndrea
Part Number268-9002
UPC702458693215
Unit of MeasureEach
Weight10.45

Product Specifications

Input TypeRCA Line Level
Output Channels2
RMS Power Output (4 Ohms)150
Special Features2 ohm Stable-Bridgeable
