CLEARANCE Timpano Audio TPT-T3500-12 D2 12" Cast Frame DVC Subwoofer 2 Ohms Per Coil

Timpano AudioPart # 294-4126
Model: TPT-T3500-12 D2
1 Question, 1 Answer or

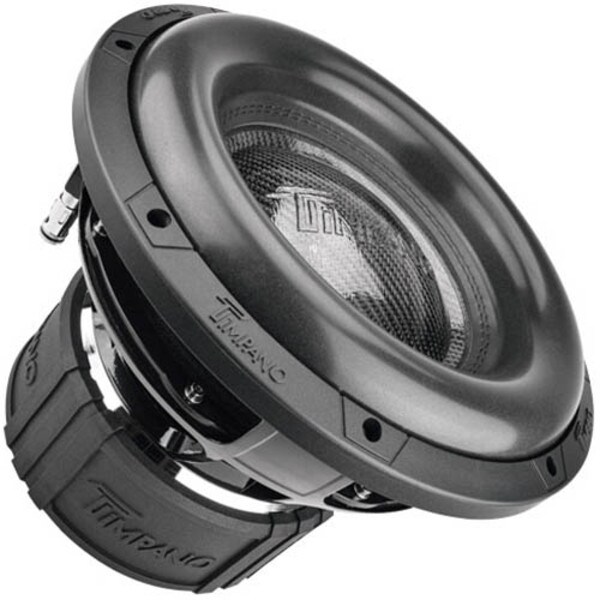

Timpano Audio’s TPT-T3500-12 D2 12” high excursion subwoofer is designed to deliver extreme low frequency extension and maximum SPL. Featuring incredible linear excursion, top-grade soft parts, American made 3” voice coil, and a colossal cast aluminum basket, this driver sets a standard for powerful output and reliability. The TPT-T3500-12 D2 is the perfect choice for high power SPL competition systems, or just disturbing the peace in general.

Key Features

  • American made 3” flat wire voice coil can handle up to 1,750 watts RMS (3,500 max)
  • 29 mm Xmax to move the massive amounts of air needed for extreme SPL
  • Rigid cast aluminum frame designed for high excursion and extensive cooling
  • Powerful triple stacked motor includes ample venting to dissipate unwanted heat
  • Large diameter double layer spider with stitched tinsel leads improves reliability
Get Notified When Available

We'll send you an email when Timpano Audio TPT-T3500-12 D2 12" Cast Frame DVC Subwoofer 2 Ohms Per Coil is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-T3500-12 D2 12" Cast Frame DVC Subwoofer 2 Ohms Per Coil

Introducing the TPT-T3500-12 D2 from Timpano Audio. Experience the ultimate in output capability thanks to a high displacement motor and suspension with outstanding power handling.  Timpano’s T3500 Series was designed to disturb the peace! Pound the lows and shake your neighbor’s house, discover a new world of bass at the next level of performance and reliability. Featuring incredible linear excursion, top-grade soft parts, American Made voice coil, and a colossal cast aluminum basket, this subwoofer creates a new standard for high SPL systems.

 • BUILT FOR COMPETITION: The massive triple stacked magnet drives a 3″ American made 4-layer CCAW coil on a black aluminum former all coated with high temperature black adhesive. An ultra-stiff reinforced non-pressed treated paper cone and high roll foam surround was used to ensure performance even when pushed to its limit.

 • UNMATCHED ENGINEERING: This sub is conservatively rated at 3,500 watts peak power / 1750 watts RMS giving it the ability to put out some intense output. Equipped with a robust double-layered spider, with stitched-on XL tinsel lead wires, to allow a longer play time with maximum durability.

• HIGH EXCURSION= MORE BASS: Once you hear this sub you’ll finally understand what deep and rich bass sounds like. Thanks to its generous 2.28″ peak-to-peak excursion. Xmax of 29 mm one-way and Max Xmech of 45 mm one-way give this driver the ability to move an incredible amount of air with having to worry about damage from over excursion.

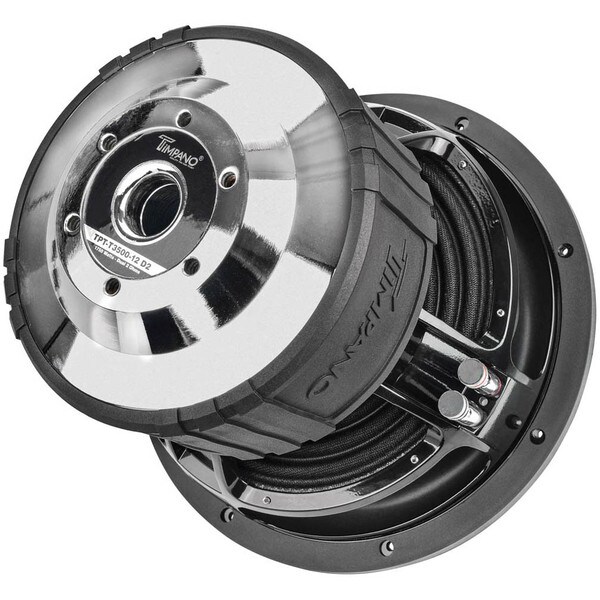

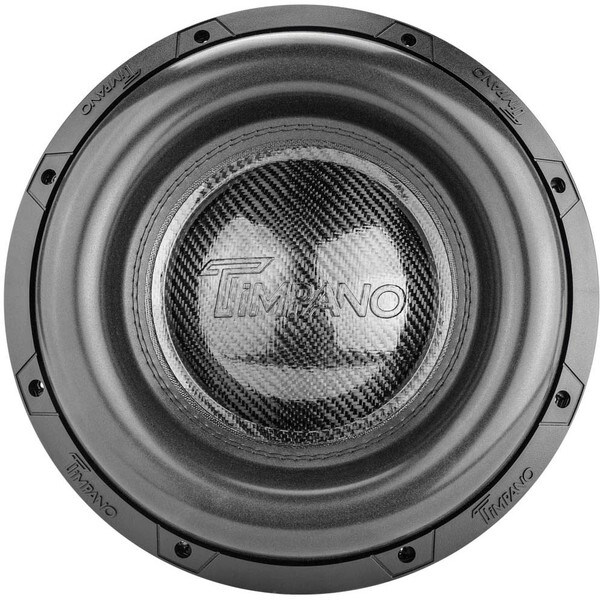

• HIGH QUALITY BUILD: The TPT3500-12 D2 is a quality sub that fits in any audio enthusiast’s budget. Dual 2 Ohm American made voice coils allow multiple wiring options. A chrome vented back plate and unique vented basket design enhances heat dissipation. Stitched cone reinforcement ensures long life. The sleek carbon fiber dustcap help reinforce the cone to withstand extreme pressure.



Note: All specs below are with the voice coils wired in parallel for a 1 ohm load.

Product Details

BrandTimpano Audio
ModelTPT-T3500-12 D2
Part Number294-4126
UPC611056239414
Unit of MeasureEach
Weight49.15

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1750 Watts
Power Handling (MAX)3500 Watts
Impedance1Ω
Frequency Response22 to 250Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
Mechanical Q (Qms)11.38
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)0.92ft³
BL Product (BL)10.15T·m
Maximum Linear Excursion (Xmax)29mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.79"
Baffle Cutout Diameter11.18"
Depth9.09"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.7ft³
Sealed F354.4Hz
Vented Volume1.75ft³
Vented F327.7Hz
