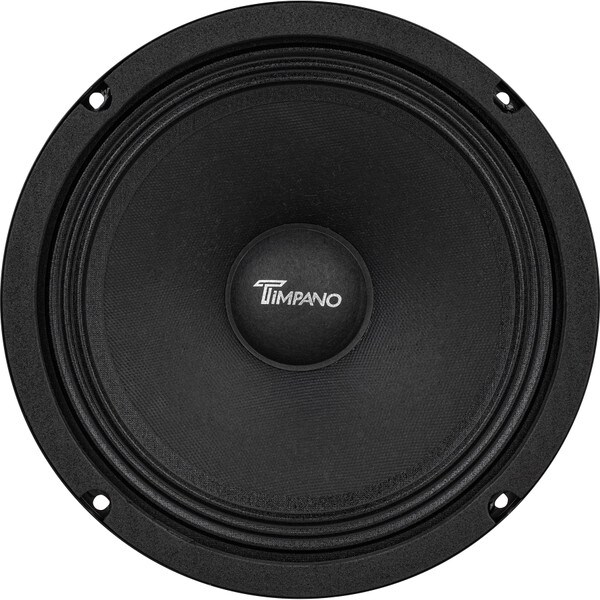

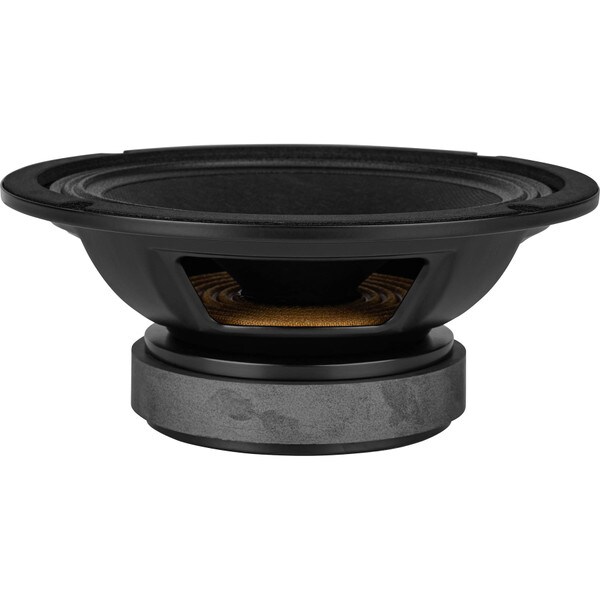

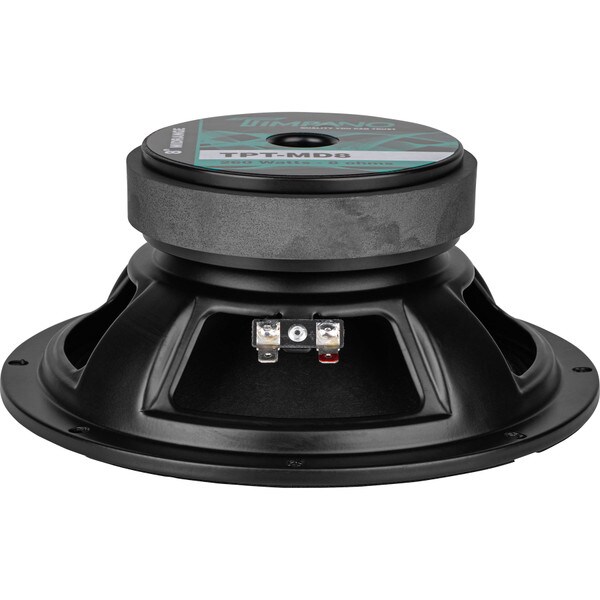

Timpano Audio TPT-MD8 8" Midrange Speaker 8 Ohm

Timpano AudioPart # 294-3324
Model: TPT-MD8-8
Timpano Audio's TPT-MD8 8" midrange speaker is a great choice for adding some high output midrange to high efficiency and automotive sound systems. With a large vented ferrite magnet and 1.5” voice coil, this driver is ideal for use in high output applications. Capable of handling 130 watts RMS and with a sensitivity of 95 dB, the TPT-MD8 is designed to deliver continuous high SPL midrange output.

Key Features

  • Under 3-1/4" mounting depth, great for most car doors
  • Broad 80-9,500 Hz frequency range for ultimate flexibility
  • High 95 dB sensitivity for maximum output with minimal power
  • Large vented ferrite motor for increased output and power handling
Your Price: $39.95
MSRP: $49.94
Save $9.99 (20%)
Bulk Pricing
7 In Stock
Get Notified When Available

We'll send you an email when Timpano Audio TPT-MD8 8" Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-MD8 8" Midrange Speaker 8 Ohm

The TPT-MD8 8" midrange speaker from Timpano Audio is built like a professional midrange, but has been designed for use in the mobile audio market. With a naturally damped paper cone and double roll cloth surround, this driver keeps resonances under control for natural response. The 1-1/2" voice coil and powerful magnet are designed to allow high sensitivity and increased power handling. Needing just 3.19" of depth this driver is perfect for the low profile installations that are necessary in today's extreme output mobile sound systems.

Product Details

BrandTimpano Audio
ModelTPT-MD8-8
Part Number294-3324
UPC611056238547
Unit of MeasureEach
Weight5.2

Product Specifications

Nominal Diameter8"
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance
Frequency Response80 to 9,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)72.6Hz
DC Resistance (Re)5.8Ω
Mechanical Q (Qms)19.3
Electromagnetic Q (Qes)0.69
Total Q (Qts)0.66
Compliance Equivalent Volume (Vas)0.96ft³
Mechanical Compliance of Suspension (Cms)0.34mm/N
BL Product (BL)7.4T·m
Diaphragm Mass Inc. Airload (Mms)14.3g
Surface Area of Cone (Sd)0.0241cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.65ft³
Sealed F395.3Hz
Vented Volume1ft³
Vented F366.3Hz
