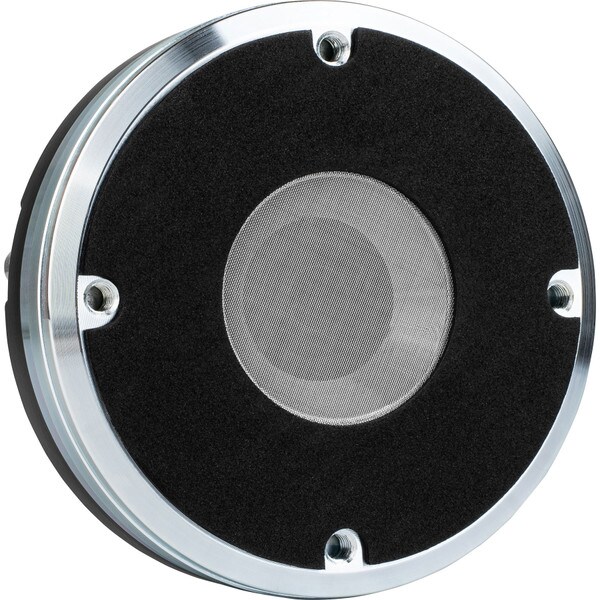

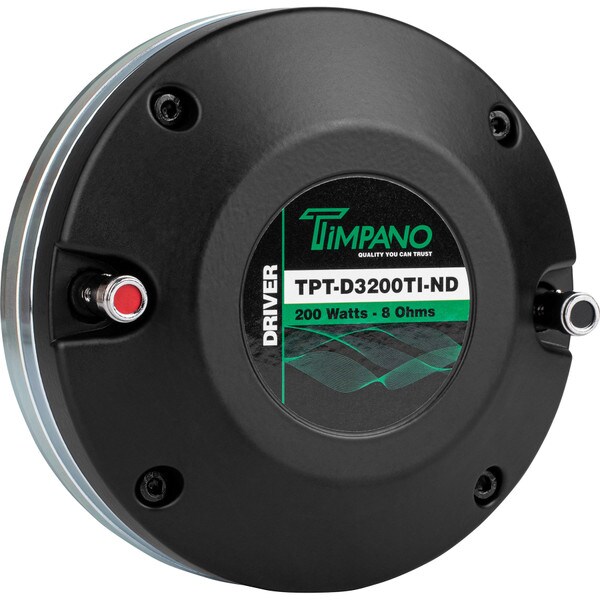

Timpano Audio TPT-D3200TI-ND 2" Titanium Compression Driver 8 Ohm 4-Bolt

Timpano AudioPart # 294-3386
Model: TPT-D3200Ti-ND
Timpano Audio's TPT-D3200TI-ND 2" titanium compression driver delivers high output, smooth response and low distortion for an incredible value. The powerful neodymium motor gives this driver excellent efficiency and precise control while keeping the weight under 4 lbs. The TPT-D3200TI-ND is capable of providing enough high frequency output to keep up with the most powerful SPL systems.

Key Features

  • 3" titanium diaphragm produces smooth and detailed frequency response
  • Powerful neodymium motor minimizes weight without sacrificing performance
  • Handles 100 watts RMS thanks to the huge 3" voice coil
  • 2" exit with standard 4-bolt mount is compatible with most 2" horns
Your Price: $129.95
+ FREE SHIPPING
MSRP: $162.44
Save $32.49 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Timpano Audio TPT-D3200TI-ND 2" Titanium Compression Driver 8 Ohm 4-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-D3200TI-ND 2" Titanium Compression Driver 8 Ohm 4-Bolt

Built to keep up with the most powerful SPL systems, Timpano Audio's TPT-D3200TI-ND 2" titanium compression driver can effortlessly produce high frequencies at extreme output levels. With a powerful neodymium motor assembly this compression driver weighs less than 4 pounds but still delivers incredible efficiency and low distortion. The large 3" diameter titanium diaphragm is light-weight and rigid to accurately reproduce 1,200 to 18,000 Hz with detail and minimal resonance. Capable of handling up to 100 watts RMS (200 watts peak) and with 110 dB sensitivity, the TPT-D3200TI-ND high output without requiring a ton of power. Finally, with a standard 4" bolt mount, the TPT-D3200TI-ND is compatible with most popular 2" horns.

Specifications: • Power handling: 100 watts RMS, 200 watts peak • Recommended min. crossover: 2,000 Hz, 12 dB/octave • VCdia: 3" • Impedance: 8 ohms • Frequency range: 1,600-19,000 Hz • Sensitivity: 110 dB 1W/1m • Mount: 2" 4-bolt • Dimensions: 4.88" dia. x 2.2" depth • Net weight: 3.92 lbs.

Product Details

BrandTimpano Audio
ModelTPT-D3200Ti-ND
Part Number294-3386
UPC611056239193
Unit of MeasureEach
Weight4.15

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter2"
Mounting Type4-Bolt
Power Handling (RMS)100 Watts
Impedance
