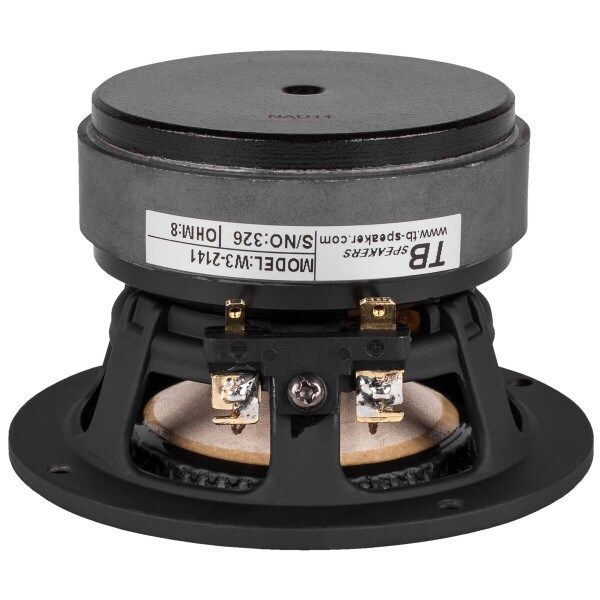

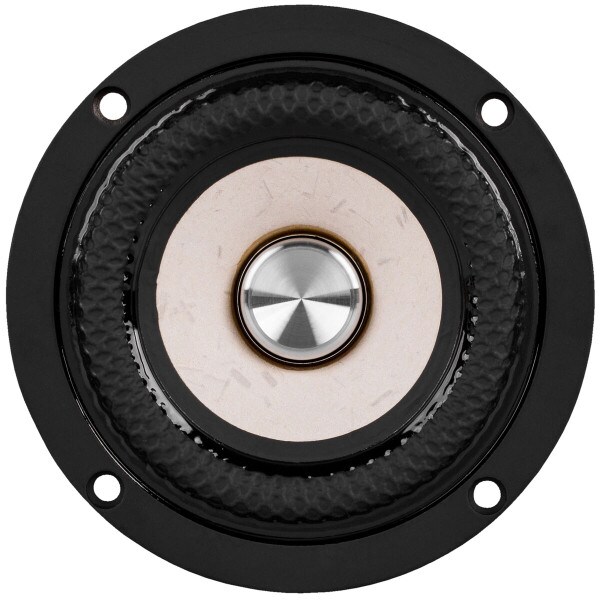

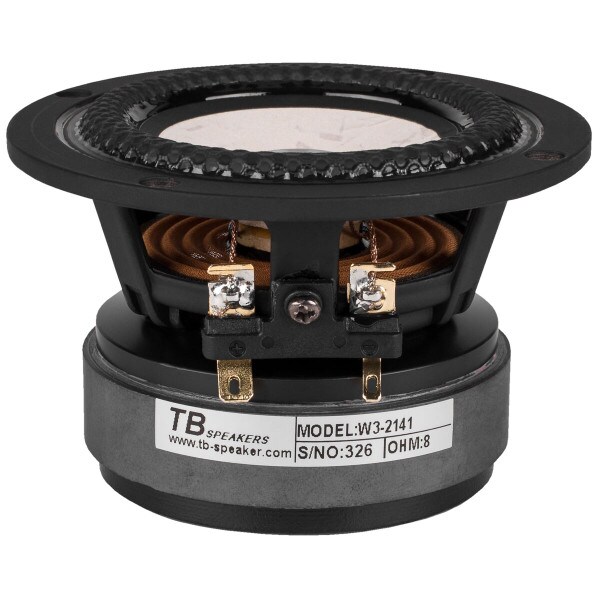

Tang Band W3-2141 3" Paper Cone Full Range Driver 8 Ohm

Tang BandPart # 264-956
Model: W3-2141
With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W3-2141 3" full range from Tang Band has impressive response from 75 to 20,000 with very low distortion.

Key Features

  • Aluminum phase plug also acts as a shorting ring for lower distortion
  • Underhung voice coil improves control for lower distortion
  • Impressive efficiency (87 dB 1W/1m) for a driver this small
  • Unique surround and large spider keeps cone linear well beyond the rated xmax
Your Price: $67.99
Bulk Pricing
Quantity:Qty: 1-3 $67.99/ea
Quantity:Qty: 4+ $64.99/ea
307 In Stock
Get Notified When Available

We'll send you an email when Tang Band W3-2141 3" Paper Cone Full Range Driver 8 Ohm is back in stock or available for preorder.

Order in the next 3 hr 7 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W3-2141 3" Paper Cone Full Range Driver 8 Ohm

Tang Band's versatile W3-2141 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

Product Details

BrandTang Band
ModelW3-2141
Part Number264-956
UPC848864023762
Unit of MeasureEach
Weight1.6

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.375
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Frequency Response75 to 20,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.8"

Thiele-Small Parameters

Resonant Frequency (Fs)75Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)2.51
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.116ft³
Mechanical Compliance of Suspension (Cms)2.25mm/N
BL Product (BL)3.64T·m
Diaphragm Mass Inc. Airload (Mms)1.669g
Maximum Linear Excursion (Xmax)1.6mm
Surface Area of Cone (Sd)32.09cm²

Materials of Construction

Cone MaterialBamboo Fiber / Paper
Surround MaterialSantoprene®
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.625"
Baffle Cutout Diameter2.92"
Depth2.25"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3152.4Hz
Vented Volume0.09ft³
Vented F382.5Hz
