CLEARANCE Talent DMX-DC16 192 Channel Universal DMX Controller

Talent Sound & LightingPart # 244-521
Model: DMX-DC16

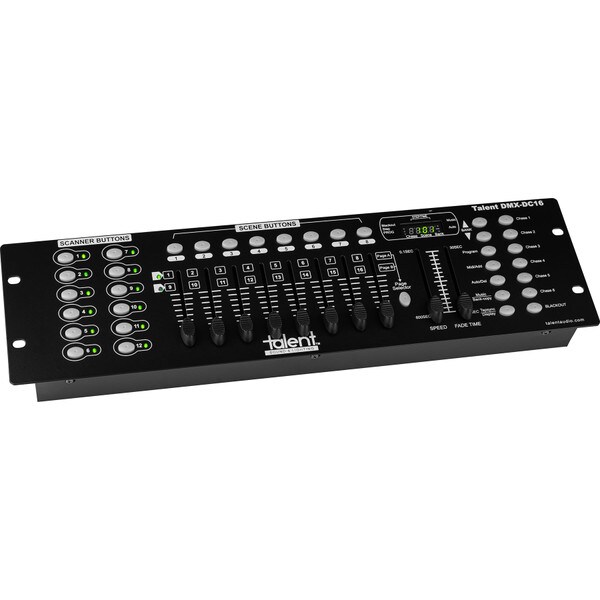

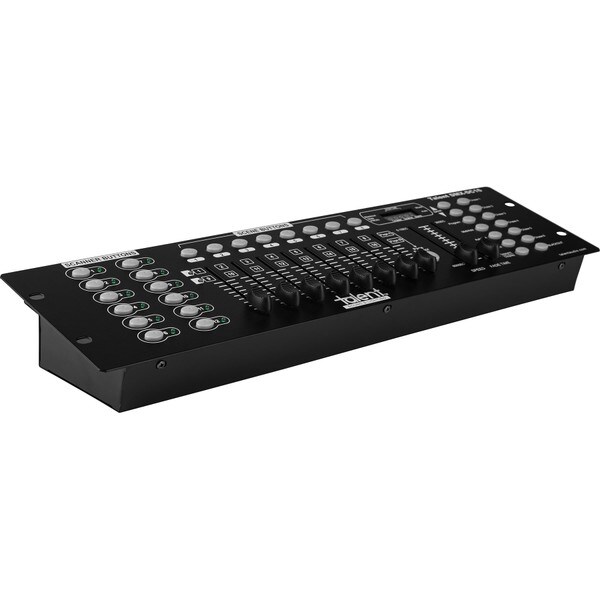

The Talent DMX-DC16 universal DMX controller gives you the ability to control up to 192 DMX channels. Offering a vast array of chase, bank, and scene programming options, the DMX-DC16 provides you the ability to both recall pre-programmed material and produce shows on the fly. Featuring two banks of 8 faders, the DMX-DC16 gives you precise control over DMX lighting fixtures. Packed with professional features, the DMX-DC16 is perfect for not only the weekend warrior but touring lighting directors as well.

Key Features

  • 192 DMX channels with multiple program features provides complete control over lighting rig
  • 30 banks, 12 scanners, 6 chases, and 8 faders allows for vast programming and recall options
  • Manual, auto, and sound active modes deliver versatility in program playback
  • Dedicated Speed and Fade Time faders control auto mode programs
  • Master blackout button turns all lights off at once
  • Built-in mic for use with sound active triggering
  • 3U rackmount chassis for integration into any standard rack case
Get Notified When Available

We'll send you an email when Talent DMX-DC16 192 Channel Universal DMX Controller is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Talent DMX-DC16 192 Channel Universal DMX Controller

Talent's DMX-DC16 universal DMX controller gives you control over 192 channels of DMX 512. With a large channel count, the DMX-DC16 works equally as well in small mobile setups as well as professional installations in churches, clubs, and event centers.

Versatile Programming Options

The DMX-DC16 features a large selection of programming options including 30 banks with 8 scenes each, 12 scanners with 16 channels each, and 6 chases with 240 scenes each. With this array of programming options, the DMX-DC16 is great for both recalling pre-programmed material as well as producing shows live. The DMX-DC16 features two banks of 8 channels giving you precise control over the lighting fixture's functionality.

In addition to manual operation, the DMX-DC16 also features autorun and sound active playback modes with dedicated Speed and Fade Time faders to control playback.

Packed with Features

Not only does the DMX-DC16 deliver versatile programming and playback, but the controller also features additional functionality that assists with creating a great light show. A master blackout button allows you to cut all the lights at once for dramatic blackout effects. The DMX-DC16 can playback programs to coordinate with music or audio. Using a built-in mic, the DMX-DC16 perfectly synchronizes with your musical show by changing scenes based on the detected sound. With a rugged, rack-mountable chassis, the DMX-DC16 is built for life on the road and easily integrates into any rack case or system.

Professional Performance in Any Application

The Talent DMX-DC16 delivers professional features that will satisfy both the amateur light enthusiast and seasoned touring lighting director. Packed with versatile programming options and industry-standard features, the DMX-DC16 is the perfect DMX controller for clubs, mobile entertainers, professional lighting rigs, live lighting companies, houses of worship, and event centers.

Specifications:

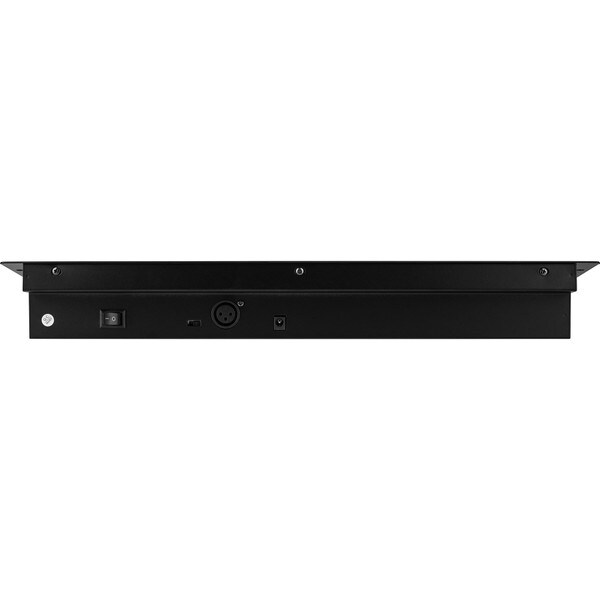

Control output: Locking 3-pin female DMX
Data protocol: DMX 512
DMX channels: 192
Banks: 30 (each with 8 scenes)
Scanners: 12 with 16 channels each
Chases: 6 (each with 240 scenes)
Faders: 8 (16 total with page select)
Sound active: Yes with built-in mic
Blackout: Master blackout button
Time adjustment: Speed and Fade Time faders
Display: LED

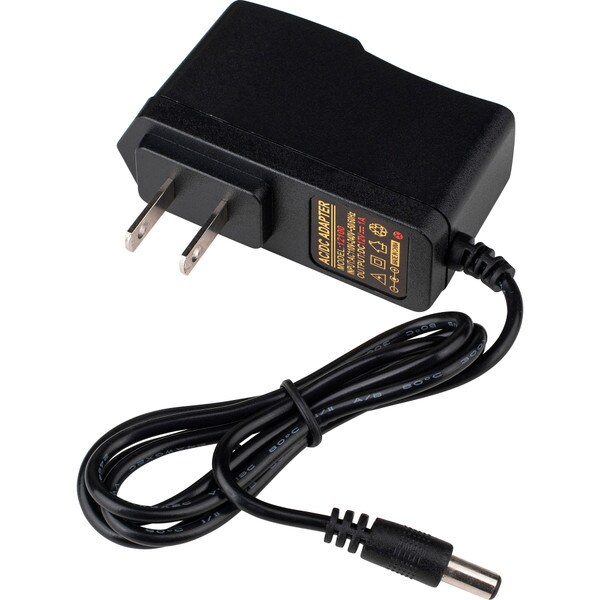

Power supply: 9-12 VDC
Power consumption: 10 watts
Dimensions: 19" W x 5.25" D x 2.87" H (rack mountable 3U)

Product Details

BrandTalent Sound & Lighting
ModelDMX-DC16
Part Number244-521
UPC848864057194
Unit of MeasureEach
Weight3.8
