TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

Parts Express
Part #320-699

TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

Parts Express
Part #320-699
The TPA3116D2 2 x 50W Class-D stereo audio amplifier features high-quality sound reproduction and volume control with anti-pop on/off switch.
Key Features
  • 3.5 mm audio input jack or 3-pin socket with cable for versatility
  • Wide input voltage from DC 5V to 24V
  • Built-in reverse power supply protection and speaker output short-circuit protection
  • Includes shaft nut, washer, four 0.2" (4 mm) standoffs, and knob for a professional looking finish
  • Power and speaker phoenix jacks for quick installation
  • Up to 100W of power for stereo speakers in one small amp board
Your Price: $13.98
MSRP: $19.99
Save $6.01 (30%)
Bulk Pricing
Quantity:Qty: 1-9 $13.98/ea
Quantity:Qty: 10+$12.58/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

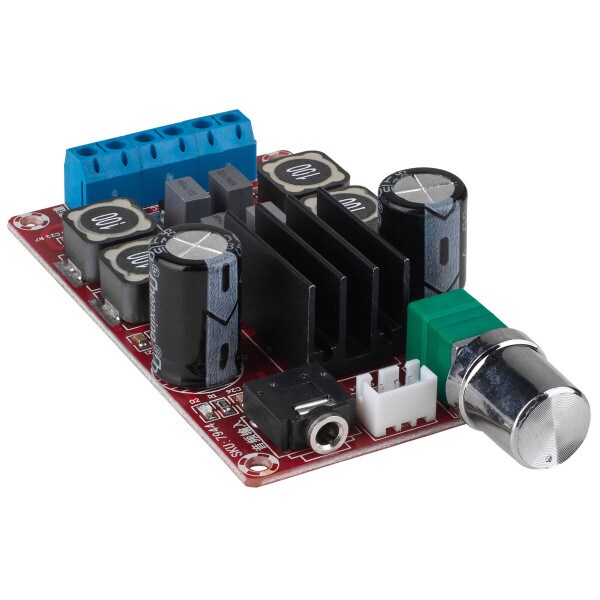

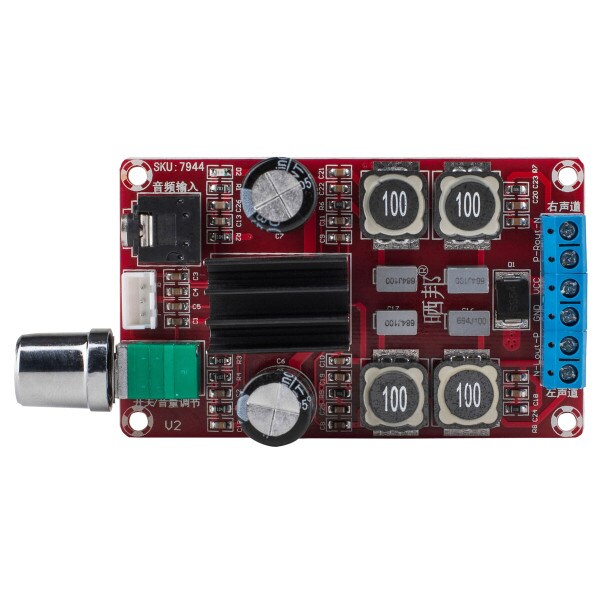

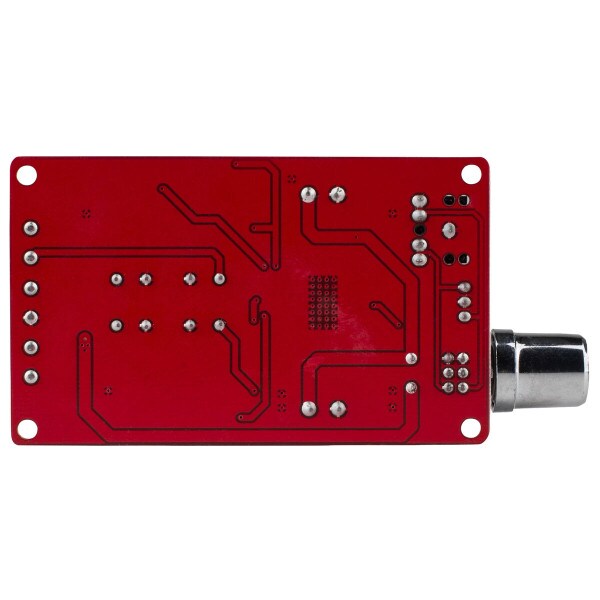

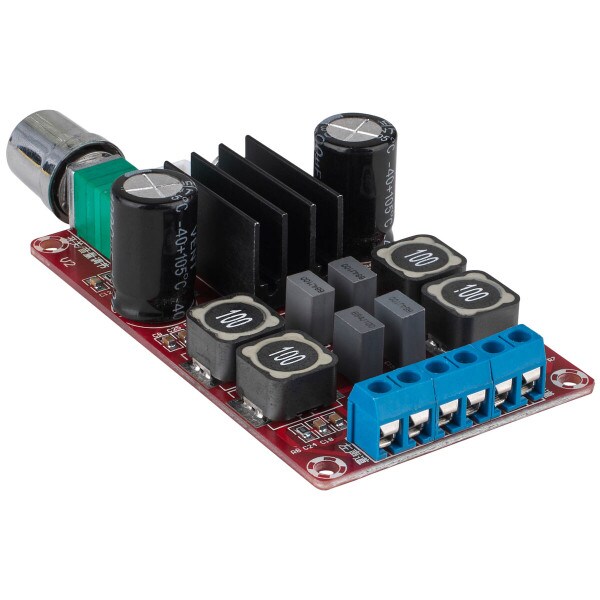

TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

The board's design, with the popular TPA3116 chip, delivers Class D efficiency and high-quality clean sound reproduction. Pause the music and notice no hiss or hum. Turn the amp board on/off, with the included volume control, and observe no popping noise. This board delivers quality sounding music when it's playing, and is quiet as a mouse when the music stops.

Make your own power amp or amplified speaker with this two-channel 100W amplifier board. The board features over-current, thermal, and short circuit protection making it perfect for audio projects. Its compact size makes it ideal for inclusion in OEM products or store displays.

Specifications: • Input voltage: 5-24 VDC (12-19 VDC for best results) • Chip: TPA3116 • Audio Type: Class D • Channel type: Two-channel stereo • Max output power: 2 x 50W @ 4 ohms • Recommended impedance: 4-8 ohms • Inputs: 3.5 mm stereo jack or 3-pin socket • Included input cable: 12" (30 cm) 3-pin female to female • Frequency response: 20 to 20,000 Hz • SNR: 100 dB • PCB size: 3.31" D x 2" W x 0.95" H (84 x 51 x 24 mm) • Shaft size: 0.55" L x 0.24" Dia. (14 x 6 mm) includes 0.11" (3 mm) mounting thread.

Product Details

BrandParts Express
ModelTPA3116D2
Part Number320-699
UPC848864050447
Unit of MeasureEach
Weight0.2

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesVolume / Tone Control
