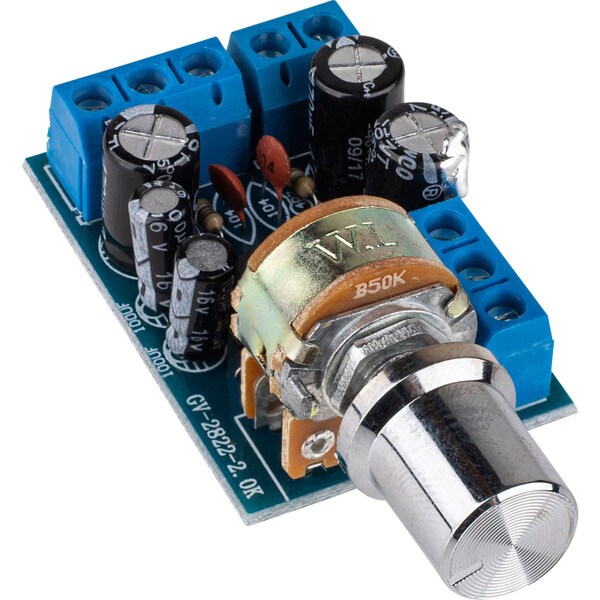

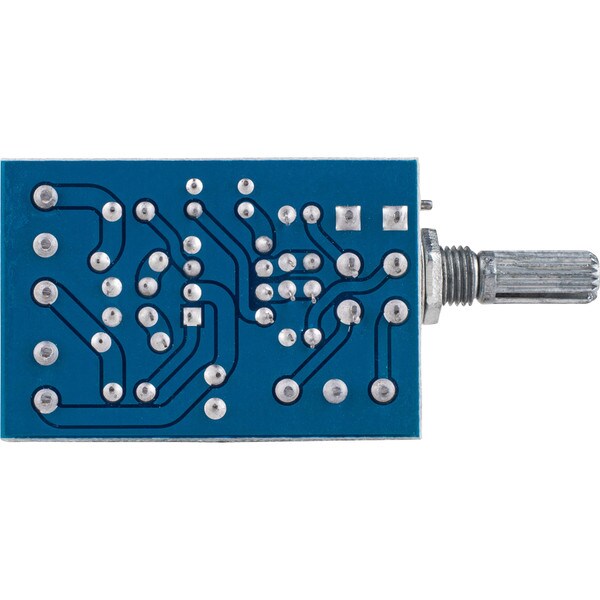

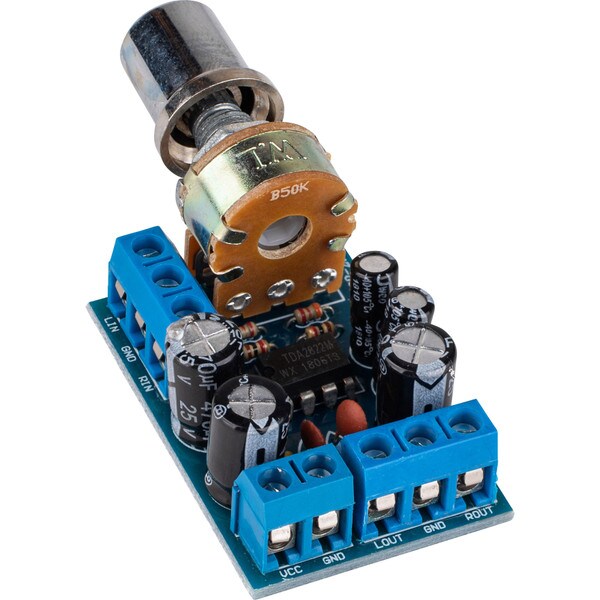

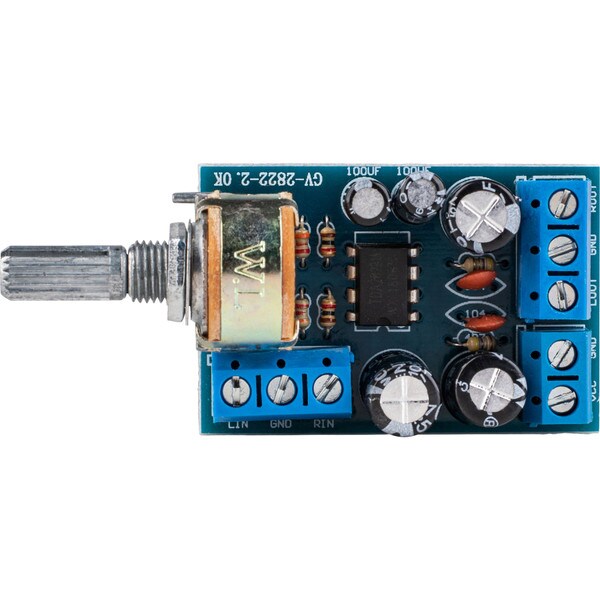

TDA2822M Low Voltage Stereo 2 x 1W Audio Amplifier Board

Parts ExpressPart # 320-613
Build small, low voltage stereo audio projects with this TDA2822M mini amplifier board. It works perfect for projects that require between 5 and 9 VDC.

Key Features

  • Built-in volume control for quick output adjustment
  • Phoenix terminals for solderless hookup
  • Low working voltage for versatility
Your Price: $3.98
MSRP: $10.99
Save $7.01 (64%)
Bulk Pricing
Quantity:Qty: 1-9 $3.98/ea
Quantity:Qty: 10+ $3.49/ea
Out of Stock
Get Notified When Available

We'll send you an email when TDA2822M Low Voltage Stereo 2 x 1W Audio Amplifier Board is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

TDA2822M Low Voltage Stereo 2 x 1W Audio Amplifier Board

Add sound to small or large projects that use 5 VDC USB power with this mini amplifier board. It works perfect for making amplified speakers for laptops and other devices that have USB ports. Stick exciters to your laptop lid, hard case, or almost any surface if you don't want to make a speaker box. Quickly hard wire power, line-in, and speakers using the phoenix jacks for instant sound. Use the built-in volume control to adjust sound to your environment.

Don't limit yourself to 5 VDC. Use 4.5 to 9 VDC battery power for completely portable sound. The sky's the limit when it comes to this mini TDA2822M mini amplifier board.

Specifications: • Recommended voltage: 4.5 to 9 VDC • Working voltage: 3 to 12 VDC • Max output power: 1W x 2 @ 8 ohms • Impedance: 4-32 ohms • Frequency Response: 20-20,000 Hz • SNR, A-weighted: 79.4 dB • Board dimensions without volume shaft: 1.77 W x 1.18 D x 0.95 H (45 x 30 x 24 mm).

Product Details

BrandParts Express
Part Number320-613
UPC848864059761
Unit of MeasureEach
Weight0.1

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesVolume / Tone Control
