  • Dayton Audio Slimline Coin Type Audio Exciter 19mm 4W 4 Ohm DAEX19SL-4

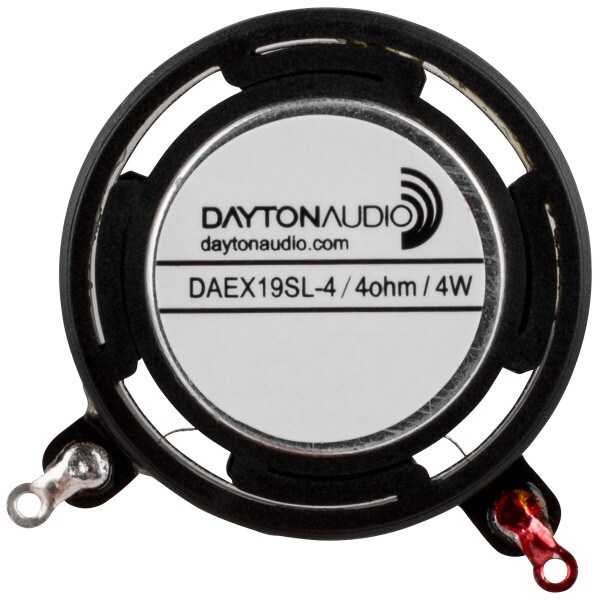

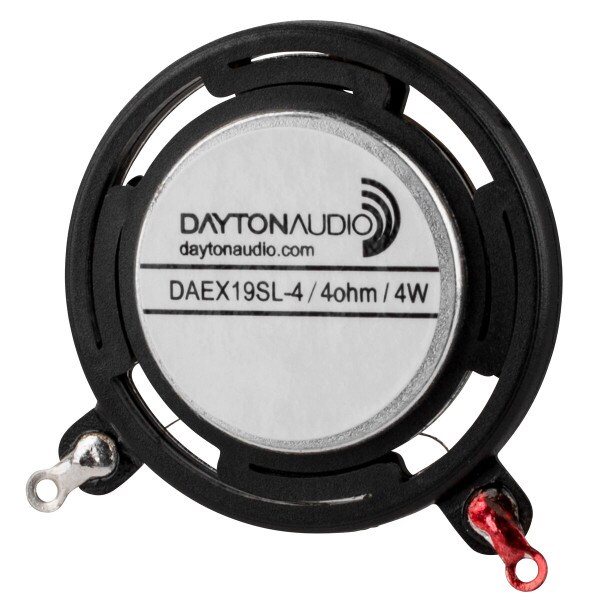

Dayton Audio Slimline Coin Type Audio Exciter 19mm 4W 4 Ohm DAEX19SL-4

Dayton AudioPart # 295-261
Model: DAEX19SL-4
This tiny exciter packs one heck of a punch. Dayton Audio's DAEX19SL-4 4 ohm sound exciter can turn most light rigid surfaces into a speaker with a surprising amount of output. Perfect for adding audio to small toys, signs, and many other projects.

Key Features

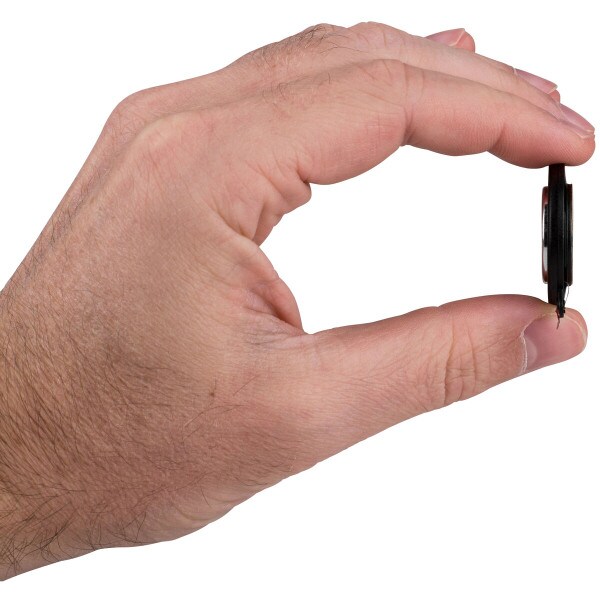

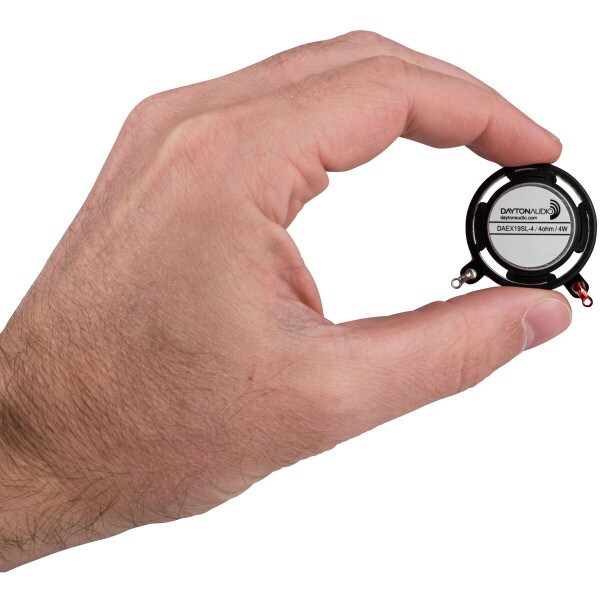

  • Only 1.3" diameter by 0.26" high, can be installed almost anywhere
  • Dual suspension for linear operation and lower distortion
  • 4-ohm impedance for use with small, Class D amplifiers
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
Your Price: $4.89
MSRP: $6.99
Save $2.10 (30%)
Bulk Pricing
Quantity:Qty: 1-3 $4.89/ea
Quantity:Qty: 4+ $4.40/ea
414 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio Slimline Coin Type Audio Exciter 19mm 4W 4 Ohm DAEX19SL-4 is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Slimline Coin Type Audio Exciter 19mm 4W 4 Ohm DAEX19SL-4

Dayton Audio's 19 mm DAEX19SL-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in an extremely compact package for working with smaller surfaces in the minimum amount of space. This exciter's small size and weight enables audio reproduction in places never imagined: toys, signs, cabinet doors, etc... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

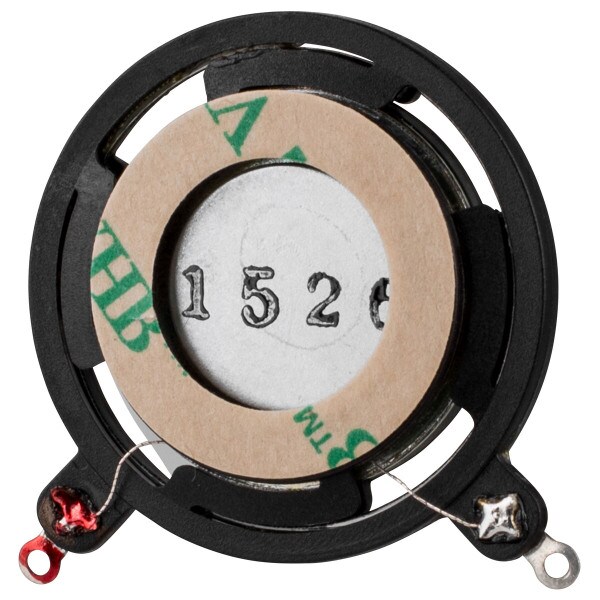

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 4 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 2.94 ohms • Le: 0.01 mH • Fs: 630 Hz • Dimensions: 1.3" (33 mm) dia. x 0.26" (6.5 mm) H • Adhesive dimensions: 0.9" (23 mm) outside diameter, 0.63" (16 mm) inside diameter • Weight: 13.5 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX19SL-4
Part Number295-261
UPC848791002007
Unit of MeasureEach
Weight0.05

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)4 Watts
Impedance4Ω
