  • Sure Electronics AA-AB35281 3x200W Class D Audio Amplifier Board - T-Amp

CLEARANCE Sure Electronics AA-AB35281 3x200W Class D Audio Amplifier Board - T-Amp

Sure ElectronicsPart # 320-3352
Model: AA-AB35281
Power your subwoofer, left, and right channels with one powerful amp board. The AA-AB35281 delivers 600 total watts to your speakers.

Key Features

  • Power and clip indicator keep you informed
  • Over-engineered protection circuits
  • Phoenix-type speaker terminals and RCA inputs for easy hook-up
  • Four preinstalled standoffs for easy installation
CLEARANCE $78.98
MSRP: $85.99
Save $7.01 (8%)
Bulk Pricing
Quantity:Qty: 1-3 $78.98/ea
Quantity:Qty: 4-49 $74.71/ea
Quantity:Qty: 50+ $69.37/ea
4 In Stock
Get Notified When Available

We'll send you an email when Sure Electronics AA-AB35281 3x200W Class D Audio Amplifier Board - T-Amp is back in stock or available for preorder.

Order in the next 2 hr 23 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

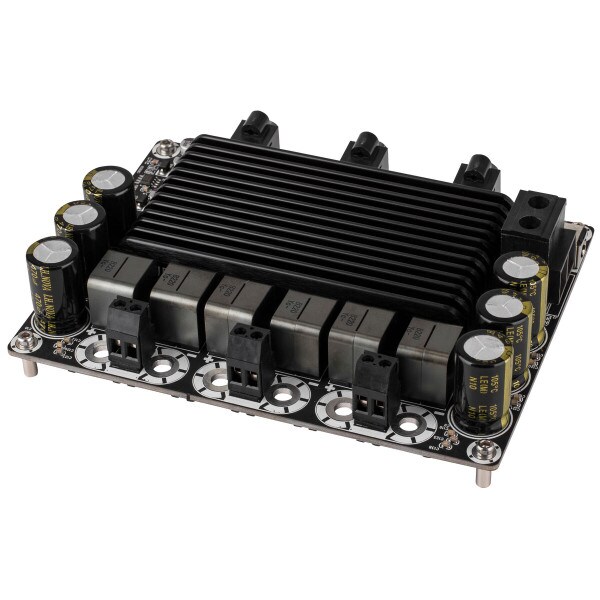

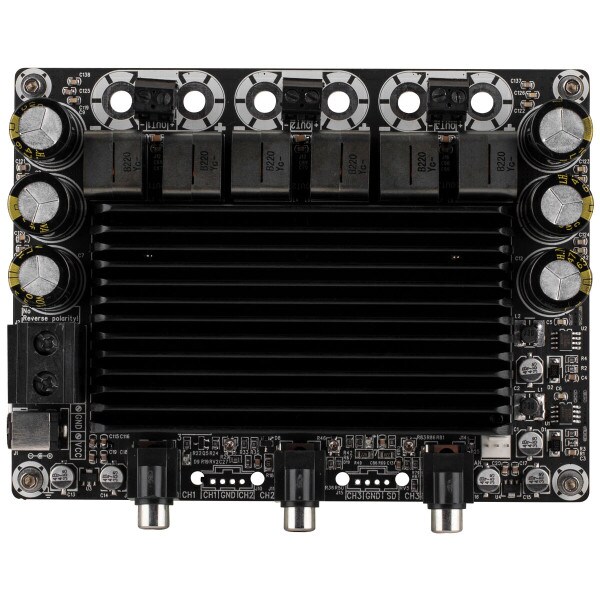

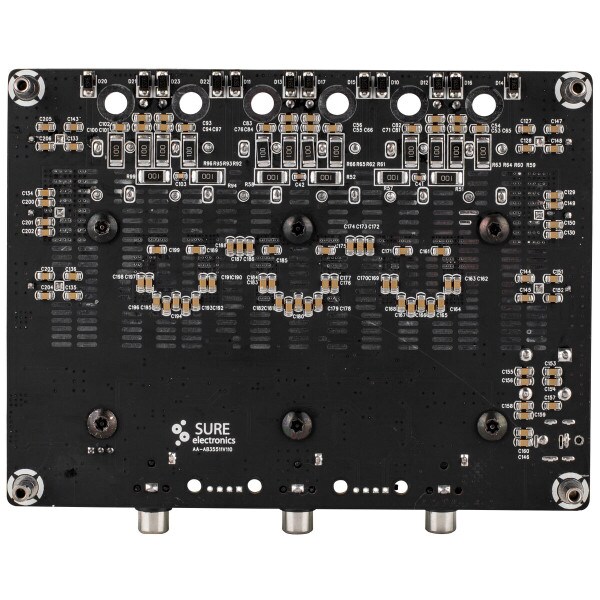

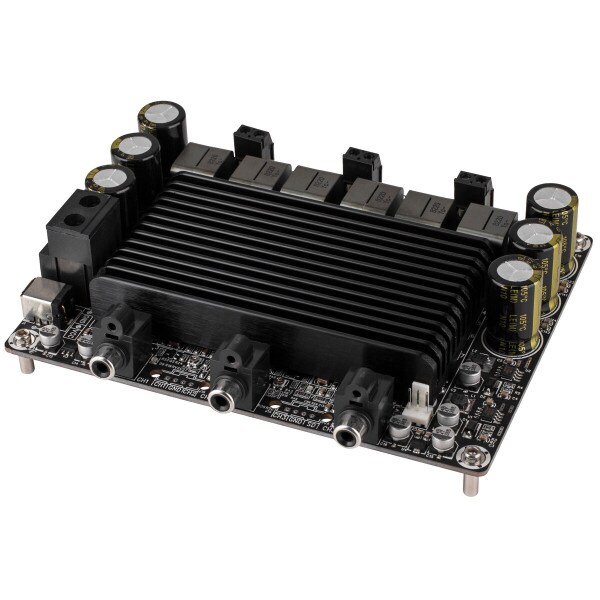

Sure Electronics AA-AB35281 3x200W Class D Audio Amplifier Board - T-Amp

The AA-AB35281 is ready to power your sound bar with subwoofer or be an integrated part of your home theater system. With 200 watts per channel and 200 watts to a subwoofer, this amp board is ready to perform in home, car, or amplified speaker system.

This board comes complete with RCA inputs and a coaxial DC input jack for easy hook-up. Strip your speaker wires, push them right into the Phoenix-type speaker terminals, and screw down the set screws. Plug in your sound source and your power supply and crank up the volume.

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Specifications:
• Power output (with 36 VDC power supply): 200W (3 ohms, THD 10%), 160W (3 ohms, THD 1%)
• Minimum impedance: 3 ohms
• Frequency response: 20 to 20,000 Hz (±3 dB)
• Recommended power supply: 24 to 40 VDC, 18.1A regulated
• Fixed gain settings: 28.5 dB, 30.5 dB, 32.5 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions: 6" L x 4.5" W x 1.48" H
• Weight: 680g

Product Details

BrandSure Electronics
ModelAA-AB35281
Part Number320-3352
Unit of MeasureEach
Weight1.46

Product Specifications

Board Type3 Channel Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
