CLEARANCE Sure Electronics AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

Sure Electronics
Part #320-309

CLEARANCE Sure Electronics AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

Sure Electronics
Part #320-309
Model: AA-AB32191
At 6 watts per dollar, this stereo Class D amplifier board is a tremendous value pumping out up to 300W per channel. Perfect for use with subwoofers or as a high-end, two-channel critical listening amplifier. 25 to 50 VDC power supply required.
Key Features
  • 2 x 300W of Class-D power
  • Great for use as a subwoofer amp and with tactile transducers
  • Over-engineered protection circuits
  • Robust heatsink with two-stage fan
  • Requires 25 to 50 VDC power supply
60 Day No Hassle Return Policy

Overview

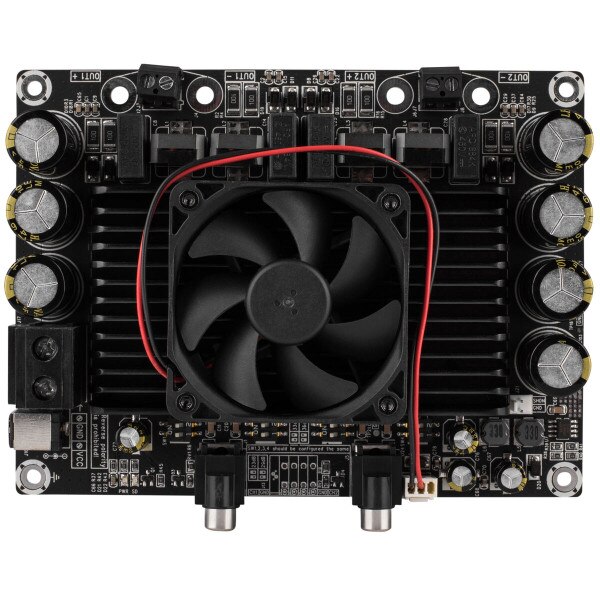

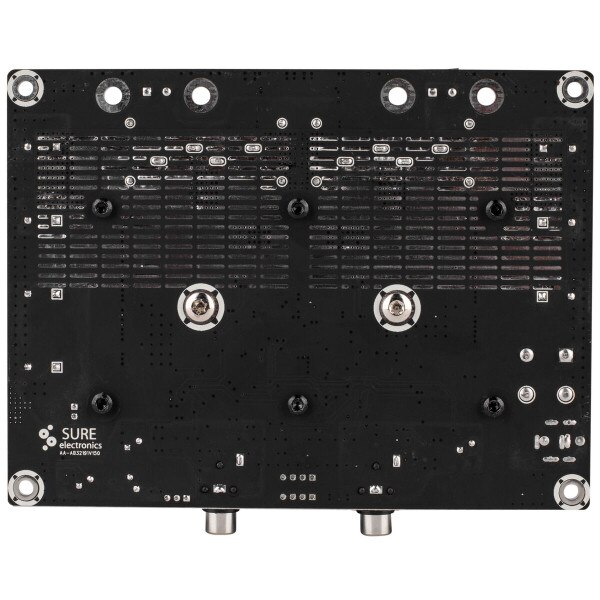

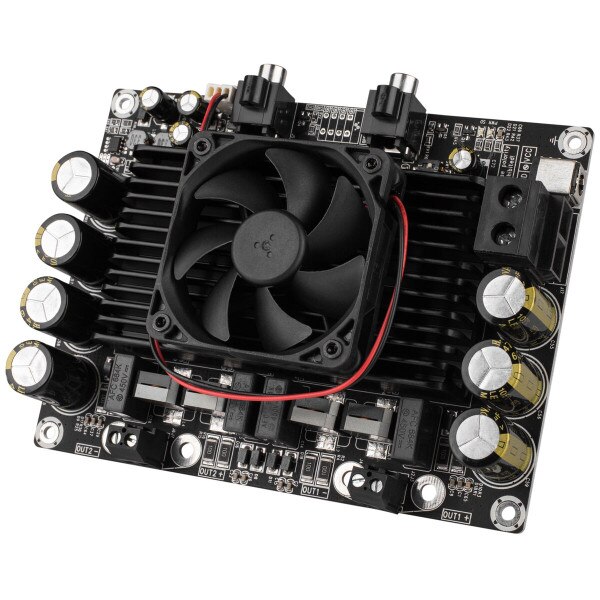

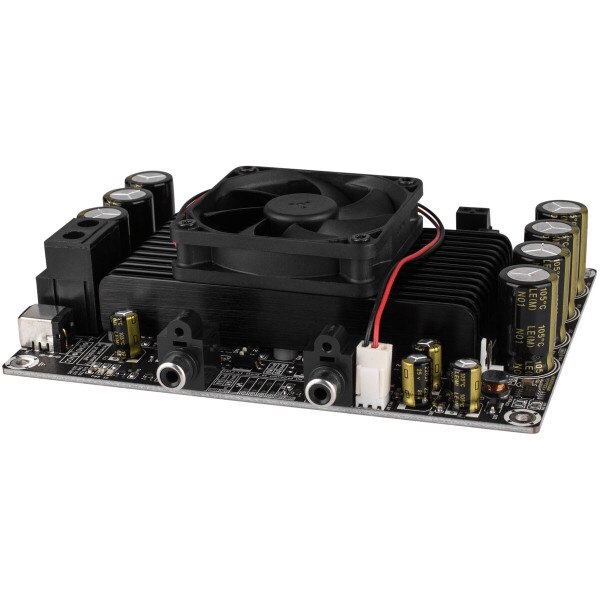

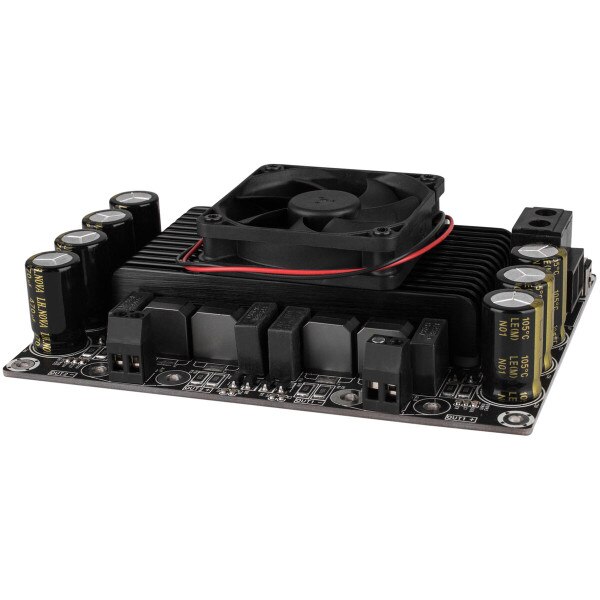

Sure Electronics AA-AB32191 2x300W TAS5630 Class-D Amplifier Board

Just one look at the power input terminals and you will know that this amplifier board means business! A Class D TAS5630 with enabled integrated feedback is used to deliver 300W to two channels, effortlessly and efficiently. This amplifier board works amazingly well with both low sensitivity speakers and subwoofers.

A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 50 VDC power supply is required (sold separately).

Recommended power supply 48V 12.5A DC Switching Power Supply

Note: The minimum recommended wire gauge to be used for power is 16 AWG.

Features:
• Class D TAS5630 with enabled integrated feedback
• Robust heatsink with two-stage cooling fan
• Pre-drilled mounting holes
• Over/under voltage, over current, short circuit, and over temperature protection circuits
• Click and pop noise reduction
• Phoenix-type speaker terminals
• Two line-level RCA inputs
• Large screw-down power input terminals

Specifications:
• Power output (with 48 VDC power supply): 300W x 2 (4 ohms, THD 10%), 166W x 2 (4 ohms, THD 1%)
• Minimum impedance: 3.5 ohms
• Frequency response: 20 to 20,000 Hz (±3 dB)
• Recommended power supply: 25 to 50 VDC, 16A regulated
• Fixed gain settings: 24 dB, 30 dB, 34 dB, 36 dB
• Power input jack: 2.5 x 5.5 mm, center-positive
• Dimensions: 6" L x 4.5" W x 1.53" H

Product Details

BrandSure Electronics
ModelAA-AB32191
Part Number320-309
UPC844632096709
Unit of MeasureEach
Weight1.2

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
